| Суич, тип | Fixed Port |
| Общ брой портове | 28 |
| Основни портове, тип | 24x10/100/1000Base-T |
| Power Over Ethernet (PoE) | No |
| Uplink портове | fixed 4x1G SFP |
| Свободни (10GB) слотове | No |
| Управление | SNMPv1, SNMPv2c, and SNMPv3; RMON I and II standards; Internet Group Management Protocol (IGMP); CLI; TCP; UDP |
| Stackable | Stacking support: StackWise-320; 320 Gbps; Optional Stacking hardware: C9300L-STACK-KIT; Number of members: 8; Supported stack members: Other C9300L SKUs with same license level |
| Fans | three field-replaceable fans and support (N+1) redundancy |
| Захранване | Dual redundant power supplies, Default primary AC power supply: PWR-C1-350WAC-P |
| Routing | Layer 3 Advanced |
| Памет (Flash, RAM) | Flash memory: 16 GB; 8 GB DRAM |
| Капацитет за маршрутизиране/превключване, Gbps | 128 Gbps; Switching capacity with stacking: 448 Gbps |
| Пропускателна способност, Mpps | 95.23 Mpps; Forwarding rate with stacking: 333.33 Mpps |
| MAC адреси | 32000 MAC address |
| VLAN (брой, стандарти) | VLAN IDs: 4094; IEEE 802.1Q VLAN |
| QoS | Granular wireless bandwidth management and fair sharing,802.1p Class of Service (CoS) and Differentiated Services Code Point (DSCP) field classification,Shaped Round Robin (SRR) scheduling,Committed Information Rate (CIR), and eight egress queues per port |
| L2 мрежови стандарти | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1x-Rev, IEEE 802.3x |
| L3 мрежови стандарти | IP unicast routing protocols: Static, Routing Information Protocol Version 1 [RIPv1], and RIPv2, RIPng, Open Shortest Path First [OSPF] |
| IPv6 functionality | IPv6 routing (using OSPFv3 and EIGRPv6) is supported in hardware for maximum performance; IPv6 addressing is supported on interfaces with appropriate show commands for monitoring and troubleshooting |
| Сигурност | Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems |
| Размери (Ш, Д, В), mm | 44.5 x 44.9 x 4.4 |
| Опция за монтаж | Rackmount |
| Други | Задължителен е минимум 3-годишен лиценз DNA Essentials. |

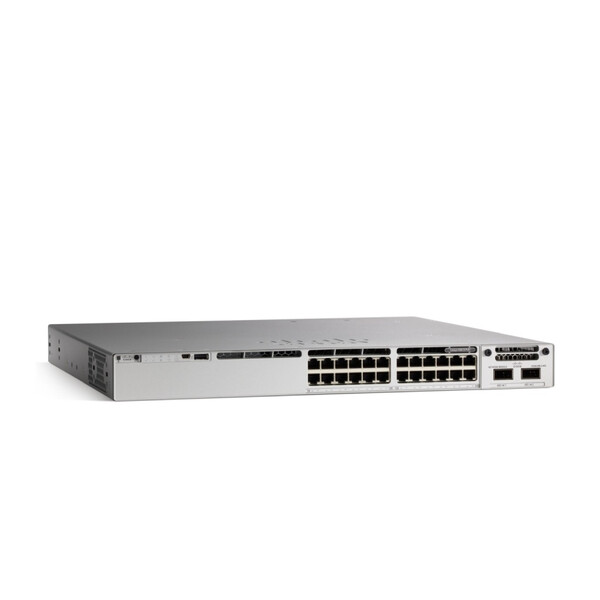

Комутатор Cisco Catalyst 9300 24-port 1G copper, with fixed 4x1G SFP uplinks, data only Network Essentials
Availability:
No stock
Brand:
CISCO
