MikroTik CRS812-8DS-2DQ-2DDQ-RM
The CRS812 DDQ is your next leap forward – a powerful, efficient, and cost-effective way to bring 50G, 200G, and 400G connectivity into your rack.

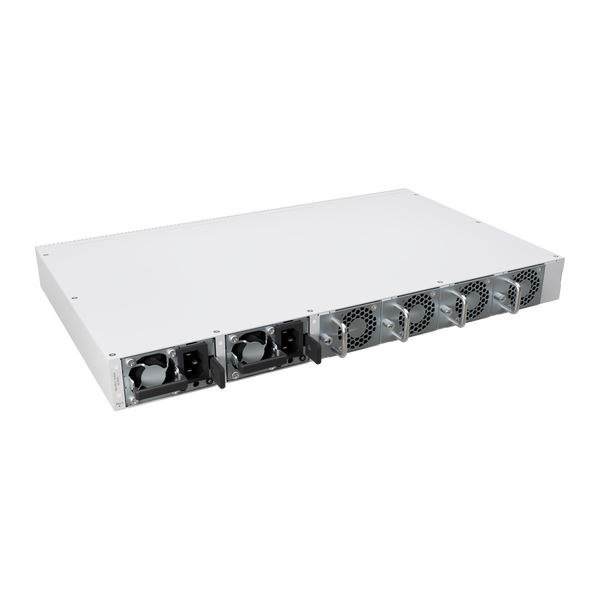

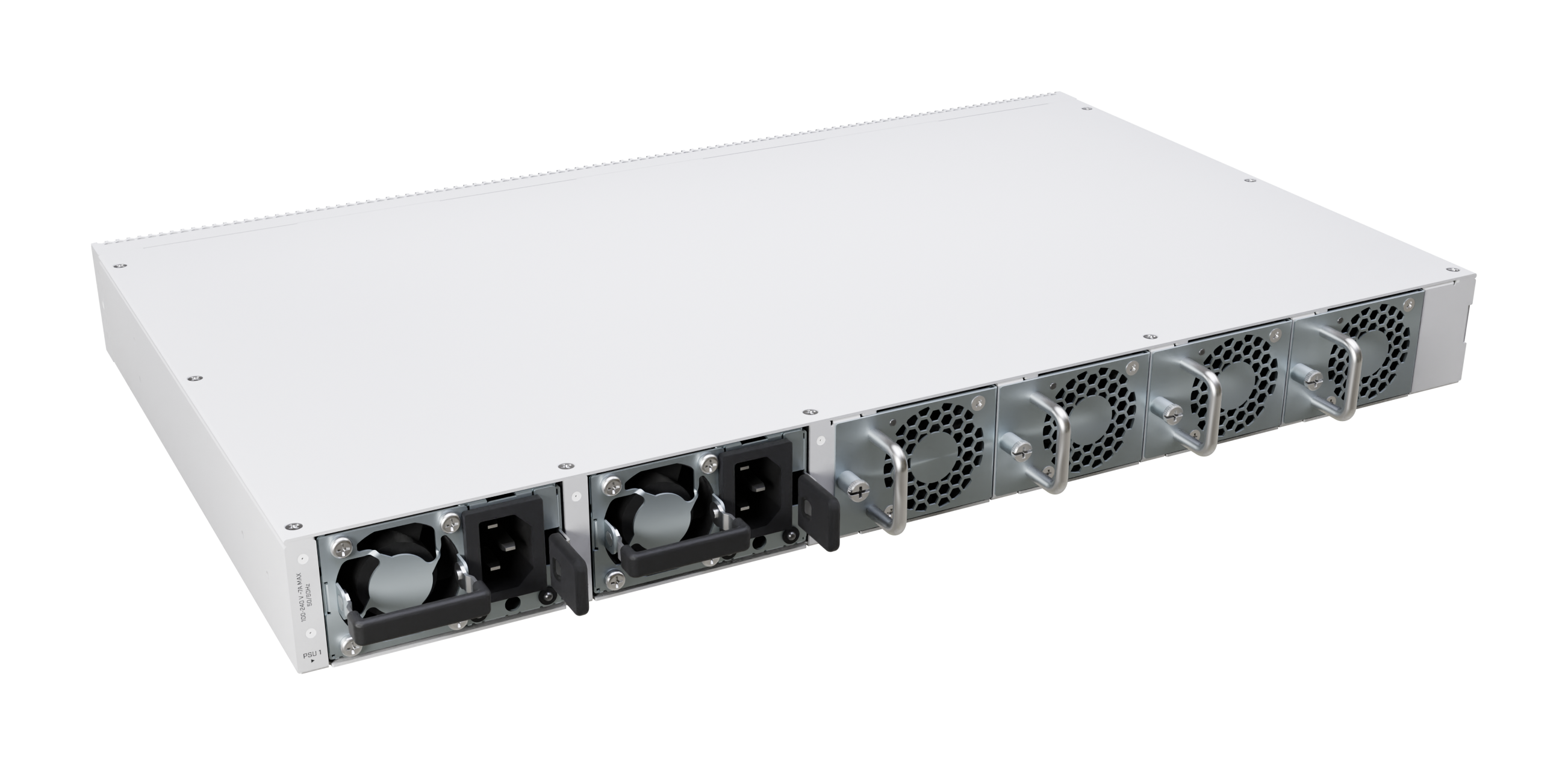

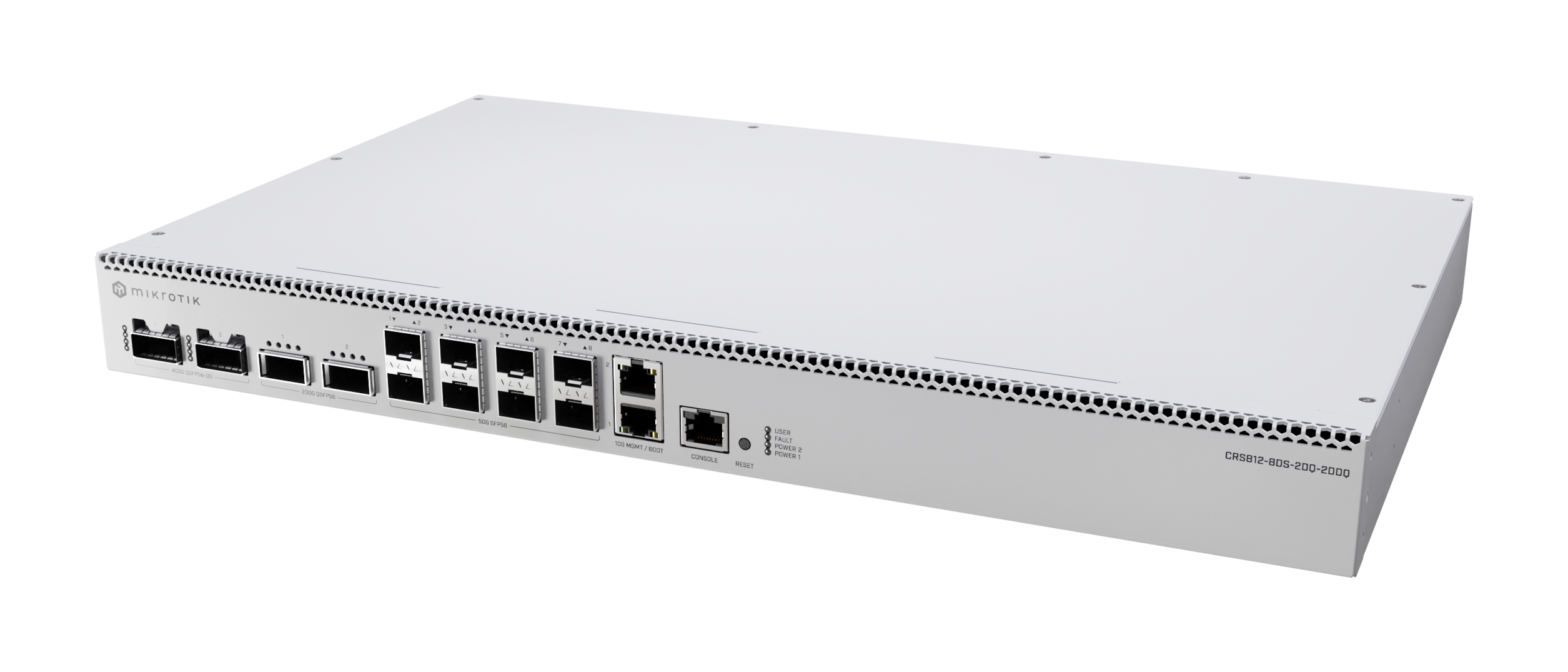

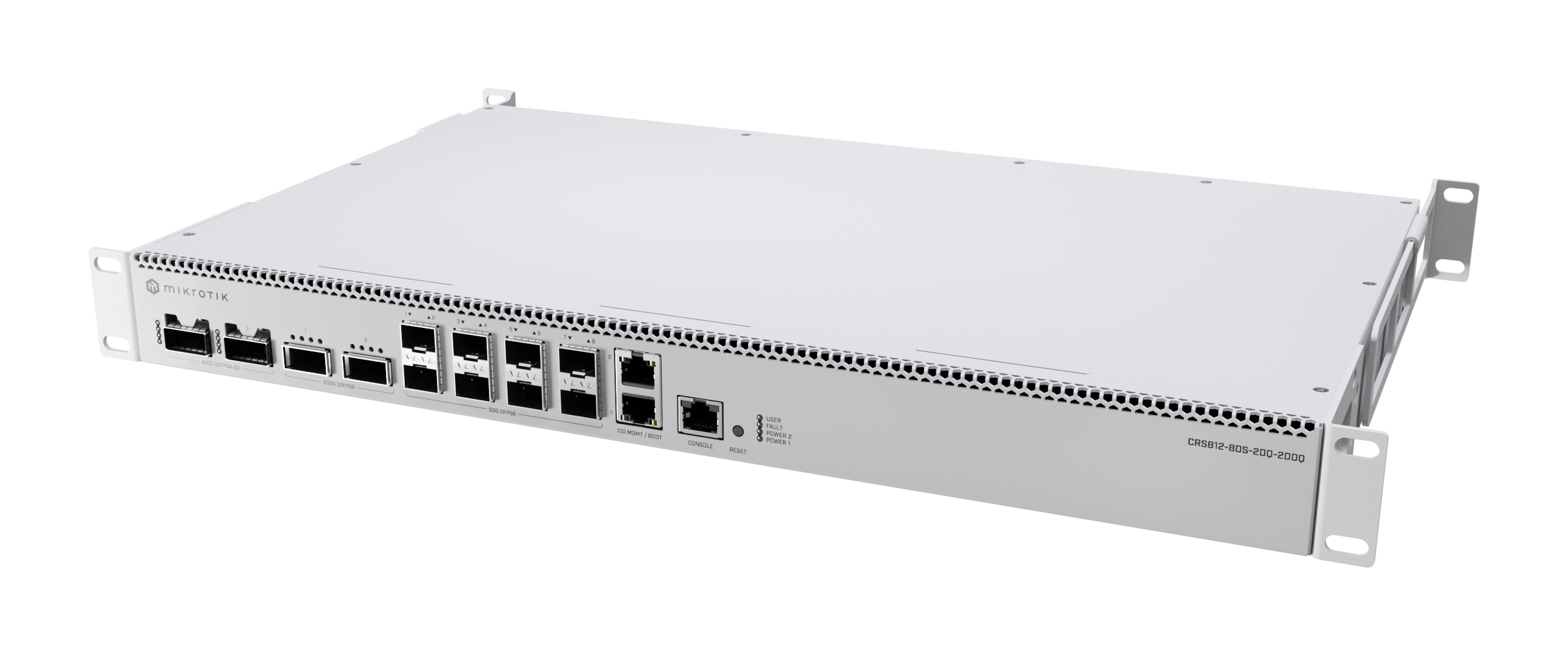

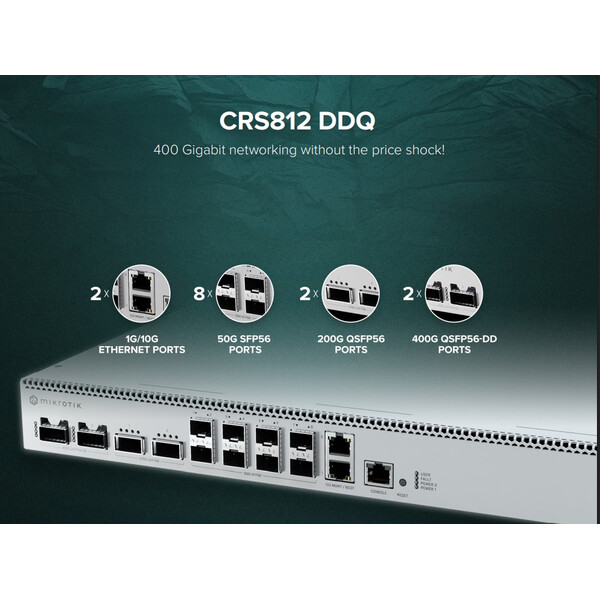

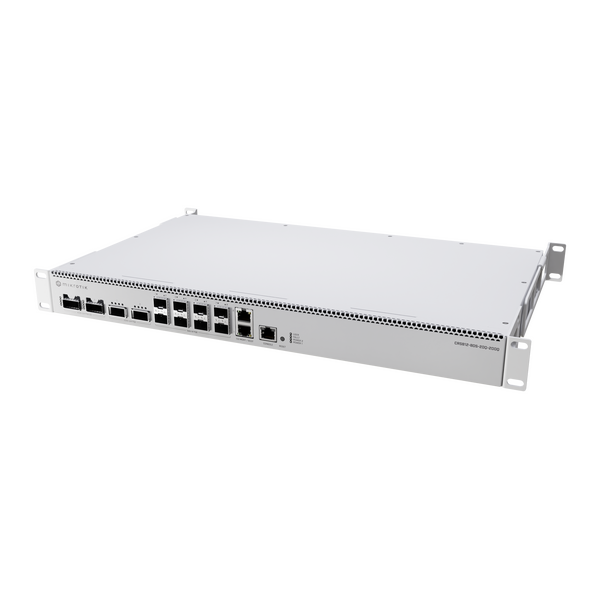

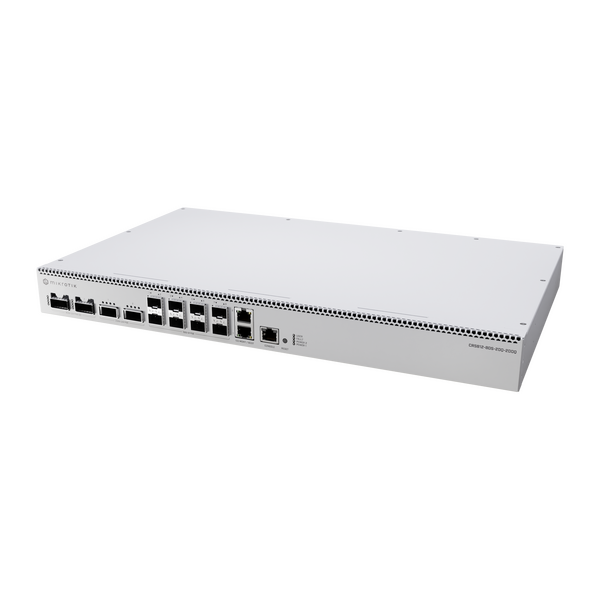

It features a quad-core 2 GHz ARM CPU, dual-redundant power supplies, and four hot-swap cooling fans, along with 2x 10G Ethernet, 8x 50G SFP56, 2x 200G QSFP56, and 2x 400G QSFP56-DD ports.
400G used to mean expensive, complex, and out of reach – but the CRS812 DDQ changes that!
With a modern Marvell switch chip and a powerful ARM CPU, it delivers advanced routing, switching, and traffic management features trusted in millions of RouterOS deployments – now with ports up to 400 Gbps.
Where does it fit?
Top-of-rack / leaf switch with 400G uplinks to the spine
Campus core bridging 10G legacy with modern 50G interfaces
Service provider aggregation node
Labs, AI clusters, and media workflows where fast east–west traffic is critical
The CRS812 scales your network from 10 to 400G in one simple, affordable, yet managed RouterOS v7 box – no forklift upgrades needed.
With the CRS812, 400 Gigabits is no longer out of reach – it’s an affordable way to launch your network into the future while keeping your existing gear in the loop.
Specifications
Product code: CRS812-8DS-2DQ-2DDQ-RM
Architecture: ARM 64bit
CPU: AL52400
CPU core count: 4
CPU nominal frequency: 2000 MHz
Switch chip model: 98DX7335
RouterOS license: Level 6
Operating System: RouterOS v7
RAM: 4 GB
Storage size: 512 MB
Storage type: NAND
MTBF: Approximately 200,000 hours at 25°C
Tested ambient temperature: -10°C to 50°C
Suggested price: $1295.00
Powering
Number of AC inputs: 2
AC input range: 100–240 V
Number of PSU slots: 2
Frequency: 50–60 Hz
Max power consumption: 134 W
Max power consumption without attachments: 81 W
Cooling type: 4 fans
Ethernet
Number of 1G/2.5G/5G/10G Ethernet ports: 2 (supported 10M/100M/1G/10G)
Peripherals
Serial console port: RJ45
Other Features
CPU temperature monitor: Yes
PCB temperature monitor: Yes
Voltage monitor: Yes
Certification and Approvals
Certification: CE, EAC, RoHS
IP rating: IP20
Included Parts
2x IEC cords
Rackmount rear support ears (2/2)
Rackmount ears (CRS)
K-82 fastening set
