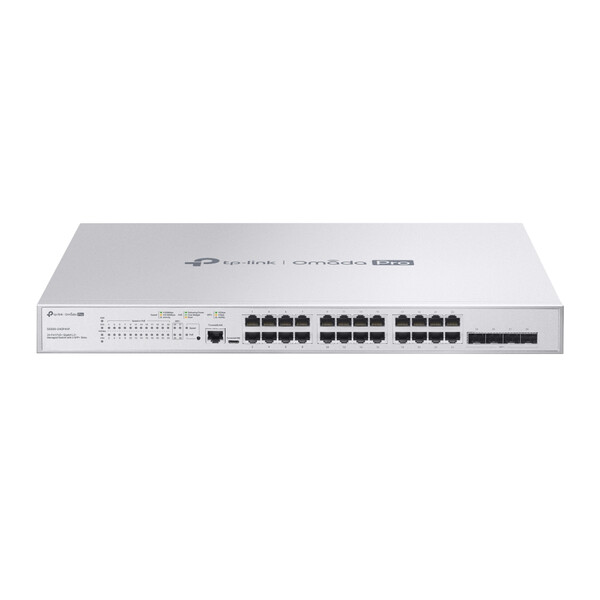

24-ports Gigabit PoE+ L2 manages switch TP-Link Omada Pro S5500-24GP4XF with 4 SFP+ ports

S5500-24GP4XF
In stock
full product features

24-ports Gigabit PoE+ L2 manages switch TP-Link Omada Pro S5500-24GP4XF with 4 SFP+ ports

  • 24× gigabit 802.3at/af-compliant PoE+ ports
  • 384 W PoE Budget
  • 4× 10 Gbps SFP+ slots for lightning-fast uplink
  • Ideal for the access layer in enterprise networking
  • Integrated into Omada Pro SDN
  • Centralized cloud management via web or Omada app
  • Ethernet Ring Protection Switching (ERPS)
  • Static Routing
  • Rackmountable

What This Product Does
Build and expand your lightning-fast network with Omada Pro S5500-24GP4XF—a full enterprise-level managed switch with 24× gigabit PoE+ ports and 4× 10G SFP+ ports. Users can supply up to 384 W total power to connected devices and flexibly deploy equipment such as wireless access points or IP cameras without worrying about power outlets. PoE support together with high-performance static routing, enterprise-level QoS, advanced security features, a selection of Layer 2 management options, and integration into the Omada Pro SDN (Software-Defined Networking) make S5500-24GP4XF a great choice for enterprises, MDUs, hotels, and ISPs.

IEEE 802.3at/af-compliant Power over Ethernet
24× IEEE 802.3at/af-compliant PoE ports supply up to 384 W total power to 802.3at and 802.3af devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling.

Enterprise Switch with 10G Uplink
4× 10 Gbps SFP+ slots deliver non-blocking performance and minimal latency, ensuring rapid, dependable connections to servers and other switches.

Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them.

In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission—even when bandwidth is in short supply.

Abundant L2 and L3 Features
S5500-24GP4XF supports a complete lineup of L2 and L3 features, including Proxy ARP, Static Routing, OAM, DDM, sFlow, L2PT, DLDP, 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency. Ethernet Ring Protection Switching (ERPS) blocks traffic on a single ring link to prevent looping and effectively adds redundancy and up-time protection to any network.

ISP Features
DDM, sFlow, ERPS, L2PT, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.



Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.** Omada Pro’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface.

Apart from the ability to be centrally managed via Omada Pro controllers, S5500-24GP4XF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

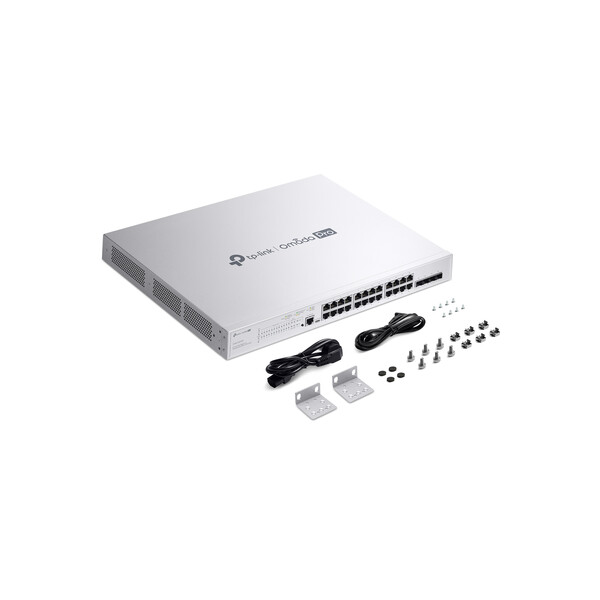

Package Contents
• S5500-24GP4XF
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet

Availability:
Limited
Brand:
TP-LINK
Warranty:
60 месеца

Мрежови продукти - Суичова

Ethernet портове:
  • 128Gbps
IPv6:
  • Internet Control Message Protocol (ICMP) version 6
  • IPv6 Dual IPv4/IPv6
  • IPv6 neighbor discovery (ND)
  • Multicast Listener Discovery (MLD) Snooping
  • Path maximum transmission unit (MTU) discovery
  • Static IPv6 Routing
  • TCPv6/UDPv6
IPv6 Applications:
  • DHCPv6 Client
  • Http/Https
  • IPv6 ACL*
  • IPv6 Interface*
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • IPv6 TFTP
  • Ping6
  • Telnet(v6)
  • Tracert6
L2 Switching Features:
  • 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
  • 802.3x Flow Control
  • CPU Mirroring
  • IGMP Authentication
  • IGMP Snooping V1/V2/V3
  • Link Aggregation
  • MLD Snooping
  • MVR
  • One-to-One
  • Port Mirroring
  • Proxy ARP
  • Static Routing
  • TACACS+
L3 Switching Features:
  • 16 IPv4/IPv6 Interfaces
  • ARP Proxy
  • DHCP L2 Relay
  • DHCP Server/Relay
  • Gratuitous ARP
  • Static ARP
  • Static Routing
Quality of Service:
  • Cable Diagnostics
  • Queue scheduling: SP, WRR, SP+WRR
  • Support 8 priority queues
  • Voice VLAN
VLAN:
  • 802.1Q tag VLAN
  • IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP
  • MAC VLAN: 7 Entries
  • Max. 4K VLAN Groups
  • VLAN, Private VLAN, Voice VLAN
  • Voice VLAN
Вид на монтаж:
  • Rackmount
  • Декстоп
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • IEEE802.3x Flow Control
  • Jumbo Frame 9KB
  • Loopback Detection (LBD)
  • MAC Address Table -16k
  • Packet Forwarding Rate - 95,2Mpps
  • Switching Capacity - Up to 128Gbps
Захранване:
  • 100~240VAC, 50/60Hz

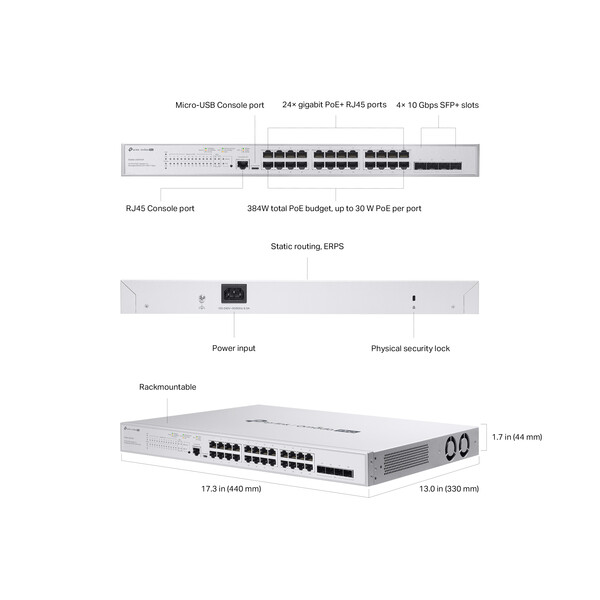

Интерфейс:
  • 1 Console Port
  • 1x Micro-USB Console Port
  • 24 10/100/1000Mbps RJ45 Ports
  • 4 x 10G SFP+ ports
Мрежови характеристики:
  • Switching Capacity: 128 Gbps
Охлаждане:
  • Активно
Приложение:
  • Rackmount
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • 0℃~45℃ (32–113 ℉)
Размери височина:
44 mm
Размери дълбочина:
220 mm
Размери ширина:
440 mm
Сертификати:
  • CE
  • FCC
  • IC
Сигурност:
  • AAA
  • IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
  • IP-MAC-Port Binding
  • IP/Port/MAC based access control
  • IPv6-MAC-Port Binding
  • Port isolation
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • Secure web management through HTTPS with SSLv3/TLS1.0
  • Web-based GUI
Системни изисквания:
  • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Софтуерни функции:
  • 802.1p/DSCP QoS
  • CPU Monitoring
  • IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
  • IEEE 802.3ad: Link Aggregation
  • IEEE 802.3x: Flow Control
  • IGMP Snooping function
  • MIBs
  • Omada App
  • Omada Cloud-Based Controlle
  • Omada Hardware Controller (OC200)
  • Omada Hardware Controller (OC300)
  • Omada Software Controller
  • Port Mirroring
  • Web-based GUI and CLI management
Съвместимост с мрежови стандарти:
  • IEEE 802.1p
  • IEEE 802.1x
  • IEEE 802.3x Flow Control
  • Standard: 802.3at/af compliant
Температура на съхранение:
  • -40℃~70℃ (-40℉~158℉)
Тип:
  • Managed
  • Omada Pro
Управление/Management:
  • 802.1ab LLDP/LLDP-MED
  • Command Line Interface (CLI) through telnet
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • EEE
  • Password Management
  • RMON (1,2,3,9 groups)
  • SDM Template
  • SNMP Trap/Inform
  • SNMP v1, v2, and v3
  • SNTP
  • System Log
  • Web UI

Брошура (Omada_Pro_10-Gigabit_L2__Managed_Switch.pdf, 2,316 Kb) [Download]

Ръководство за инсталиране (7106510757_S5500-24GP4F_UN_1.0_IG__1_.pdf, 2,911 Kb) [Download]

Декларация за съответствие (CE_DOC_S5500-24GP4XF.pdf, 1,027 Kb) [Download]
