Sector antenna Ubiquiti airFiber AF-5G23-S45 5 GHz 23 dBi Slant 45

AF-5G23-S45_VZ
Out of stock
  • Усилване 23 dBi
  • Brand UBIQUITI
full product features
Price
253,92 BGN
Add to wishlist Comparison list

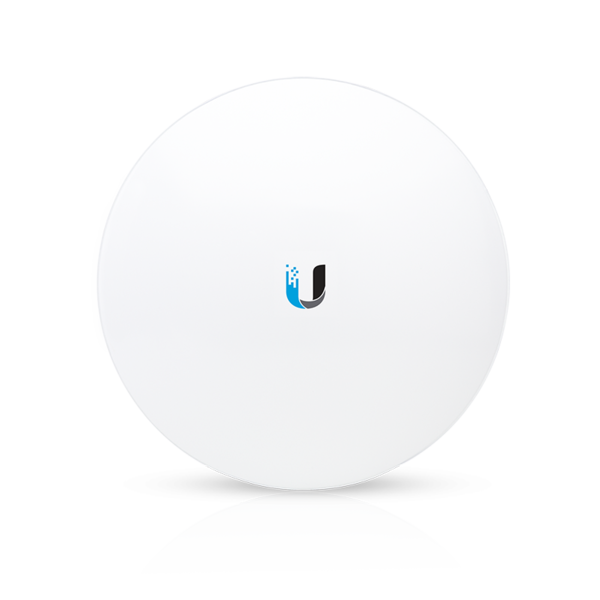

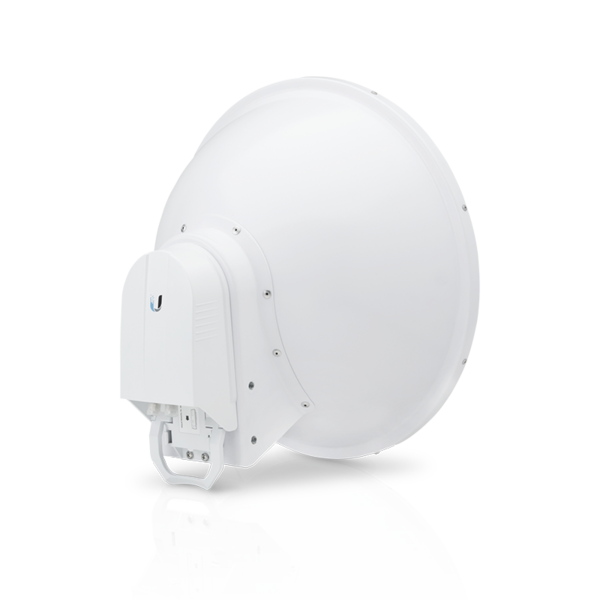

Sector antenna Ubiquiti airFiber AF-5G23-S45 5 GHz 23 dBi Slant 45

It operates in the 5 GHz band. The maximum gain level (gain) is 23 dBi.
The maximum ratio VSWR (transmission line impedance and its load) is 1.5: 1.
The product is characterized by high performance.

Thanks to the solid structural elements, the AF-5G23-S45 antenna is characterized by high durability.
Resistant to adverse weather conditions. Permissible safe wind speed - 200 km / h.

Application
The AF-5G23-S45 is used to create Point-to-Point connections. It is characterized by intuitive implementation and modern design, ensuring high insulation and reduction of interference.

Installation
The AF-5G23-S45 devices are easy to install. Installation does not require the use of special tools.

Features:

  • Operation in the 5 GHz band
  • Max. gain level: 23 dBi.
  • Dimensions ø 378 x 290 mm
  • Robust construction
  • Modern design

Availability:
No stock
Brand:
UBIQUITI
Warranty:
24 месеца

Мрежови продукти - Антени

EAN:
0810354023293
F/B Ratio:
  • 33 dB
Frequency:
  • RF connectors
Max. VSWR:
  • 1.5:1
Wind Loading:
  • 190 N @ 200 km/h
Wind Survivability:
  • 200 km/h (125 mph)
Монтаж:
  • Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
Обхват на работа:
  • 200+ км range
Поляризация:
  • Cross-pol Isolation: 35 dB
  • Dual Linear
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • -40 to 70° C
Размери:
378 х 290 мм
Сертификати:
  • EN 302 326 DN2
Тегло:
3.5 Кg
Температура на съхранение:
  • -40℃~70 ℃ (-40 ℉~158℉)
Тип:
  • Outdoor
  • Вътрешна
  • Секторна антена
Усилване:
  • 23 dBi

Брошура (airFiber_Antennas_DS.pdf, 4,558 Kb) [Download]

Ръководство за бързо инсталиране (airFiber_AF-5G23-S45_QSG.pdf, 2,919 Kb) [Download]
