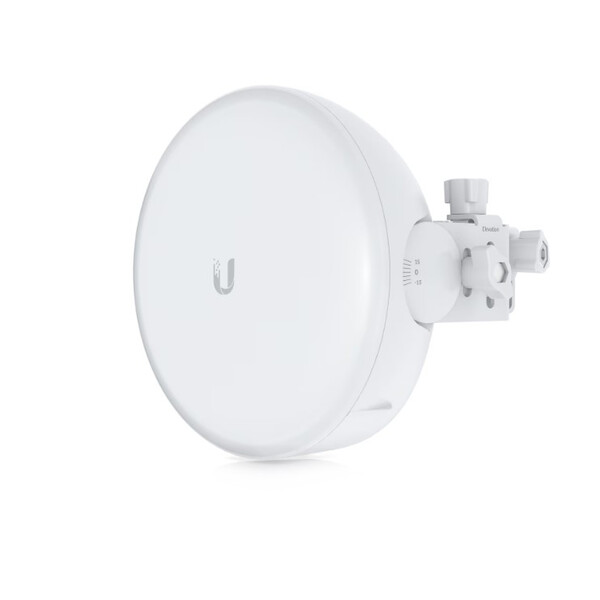

Antenna Ubiquiti AirMax GigaBeam Plus 60 GHz Radio GBE-Plus

High-gain 60 GHz radio with a Cassegrain reflector that delivers 1.5+ Gbps throughput with low latency.

1.5+ km link range

1.5 Gbps max. throughput

(1) GbE port

Technical Specifications
Mechanical
Dimensions    Ø155 x 137 mm (Ø6.1 x 5.4")
Weight    1 kg (2.2 lb)
Enclosure materials    UV-resistant polycarbonate, stainless steel
Mount material    Metal
Wind loading    50 N at 200 km/h (11.24 lbf at 125 mph)
Hardware
Processor    Quad-Core ARM® Cortex® A7
Memory    256 MB DDR3
Networking interface    10/100/1,000 Mbps RJ45 port
Management interfaces    Ethernet
Bluetooth
RF connections    Internal
Max. power consumption    11W
Power method    Passive PoE (Pairs 4, 5+; 7, 8-)
Power supply    24V DC, 0.5A Gigabit PoE adapter
Supported voltage range    22—26V DC
ESD/EMP protection    Air/contact: ± 24kV
Operating temperature    -40 to 60° C (-40 to 140° F)
Operating humidity    5 to 95% noncondensing
Certifications    FCC, IC, CE
Software
Operating modes    PtP master or station
Ubiquiti specific features    Integrated 60 GHz radio, discovery protocol
Security    WPA2 AES only
Services    UISP, ping watchdog, web server, SSH server, NTP client, system log, device discovery
Tools    Antenna alignment, discovery utility, traceroute, speed test
Management interface    UISP application (web/mobile)
Minimum software requirements    Any modern web browser/iOS™ or Android™ based smartphone
RF
Operating frequency*    57,000 - 66,000 MHz
* Dependent on regional regulations.
Channel bandwidth    2160 MHz
Operating channels    58320, 60480, 62640, 64800 MHz
Beamwidth*    Azimuth: 2° (-3 dB) / 3° (-6 dB)
Elevation: 2° (-3 dB) / 3° (-6 dB)
*The antenna is only vertically polarized.
Bluetooth    2400 - 2483.5 MHz
Electrical downtilt    0°
LEDs
Power    Flashing white: booting up
White: not connected to UISP
Blue: connected to UISP
Ethernet    Flashing blue: Ethernet traffic detected
60GHz    Blue: connected
