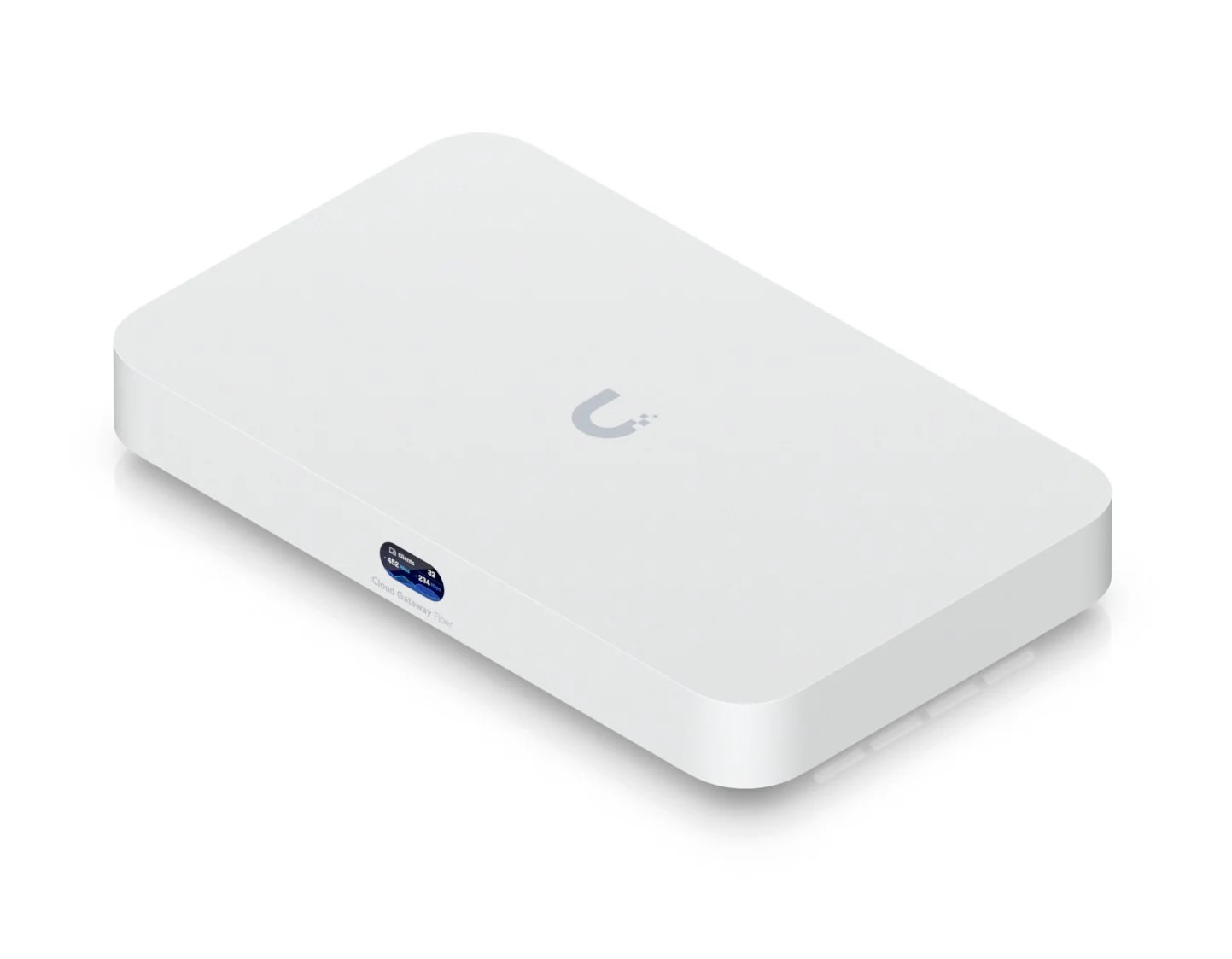

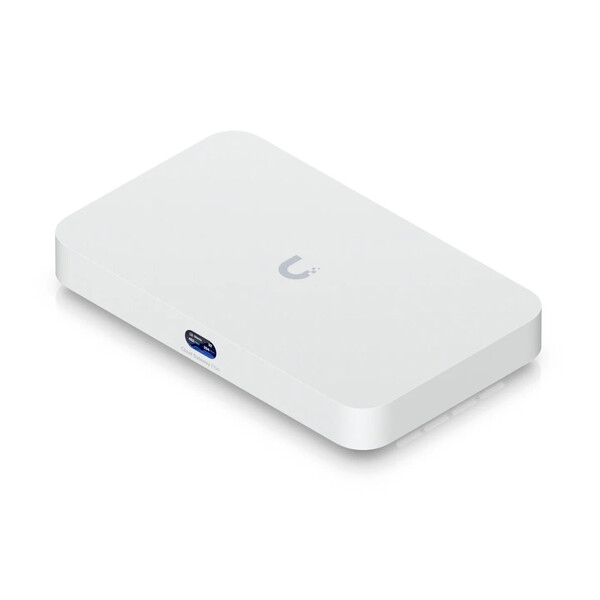

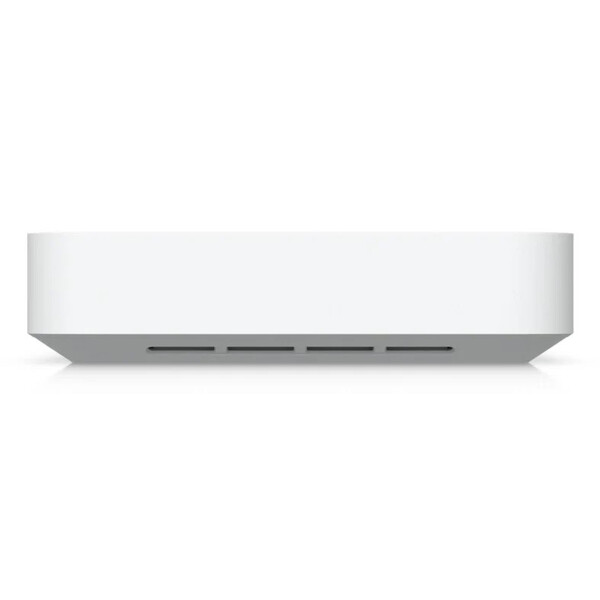

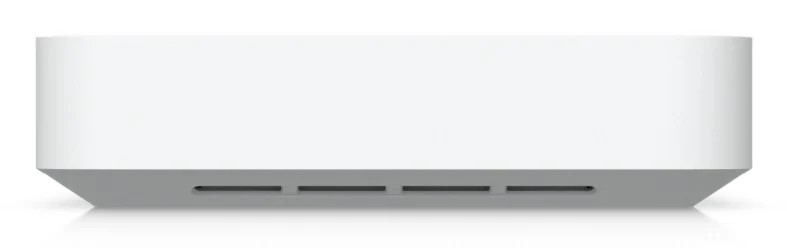

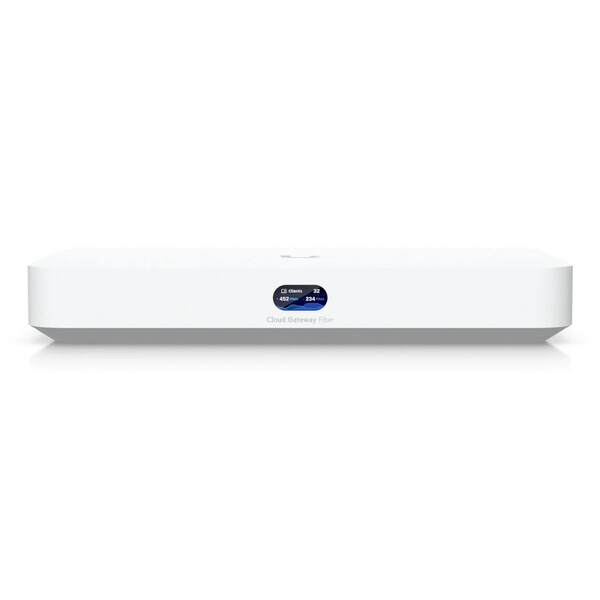

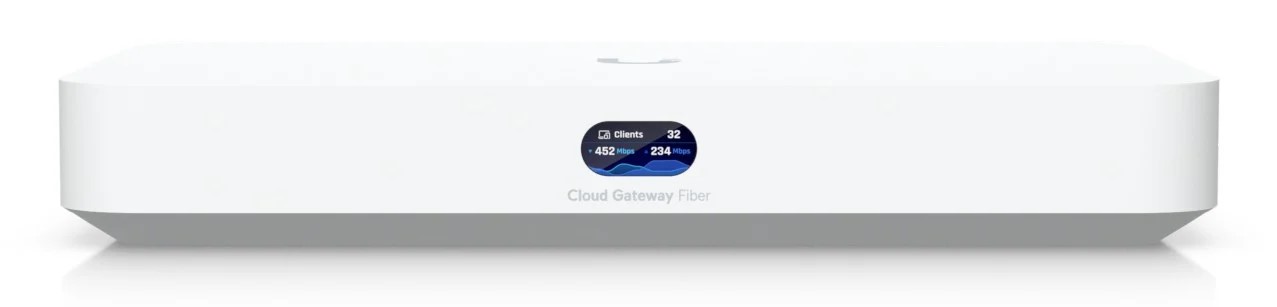

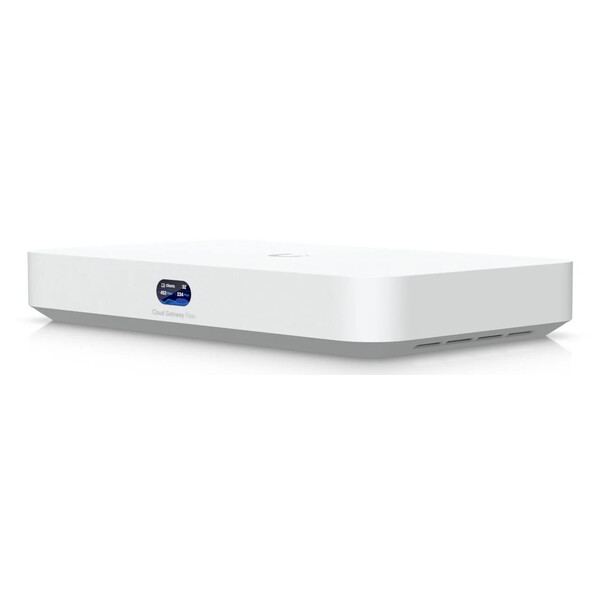

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.
Overview
-
Dimensions: 212.8 × 127.6 × 30 mm (8.3 × 5 × 0.5 in)
-
Form Factor: Compact desktop
-
Managed UniFi Devices: 50+
-
Managed Cameras: 15 × HD, 8 × 2K, 5 × 4K
-
Simultaneous Users Connected: 500+
-
Max. WAN Port Count: 6
-
Default WAN Ports: (1) 10G SFP+, (1) 10 GbE RJ45

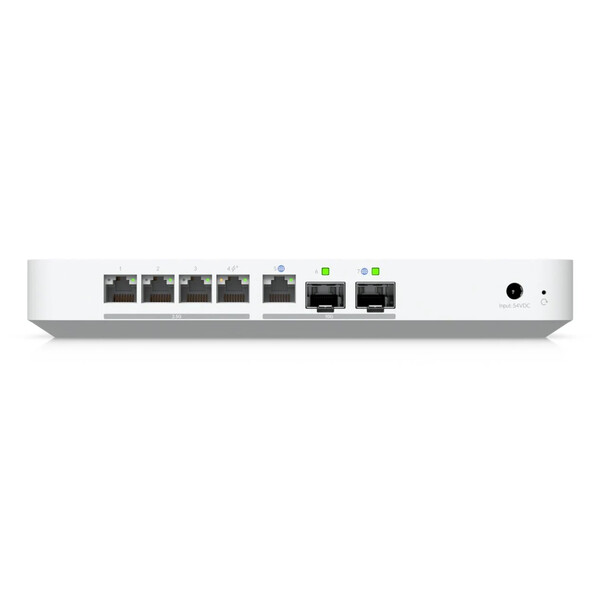

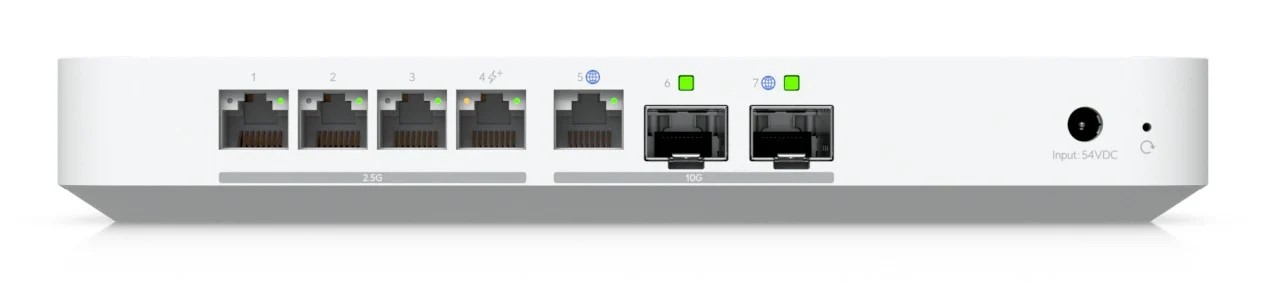

Port Layout
-
2.5 GbE RJ45: 4 (2.5G/1G/100M/10M)
-
10 GbE RJ45: 1 (10G/2.5G/1G)
-
10G SFP+: 2 (10G/1G)
Performance
-
IDS/IPS Throughput: 5 Gbps
UniFi Application Suite
-
Network ✓
-
Protect ✓
-
Access ✓
-
Talk ✓
-
Connect ✓
Security
-
Stateful Firewall ✓
-
Application-Aware Layer 7 Firewall ✓
-
DPI & Traffic Identification ✓
-
Zone-Based Firewall (Regions, Domains, Apps) ✓
-
Content Filtering ✓
-
Intrusion Prevention (IPS/IDS) ✓
-
Ad Blocking ✓
-
IDS/IPS Signatures: 55,000+ with CyberSecure
-
VLAN/Subnet-based Traffic Segmentation ✓
VPN & SD-WAN
-
License-Free SD-WAN ✓
-
Site-to-Site VPN: Site Magic ✓, IPsec ✓, OpenVPN ✓
-
VPN Server: One-Click VPN ✓, Teleport Zero-Configuration VPN ✓, WireGuard ✓, L2TP ✓
-
VPN Client: OpenVPN ✓, WireGuard ✓
Networking
-
Multi-WAN Load Balancing ✓
-
Dynamic Routing: OSPF ✓
-
Advanced QoS ✓
-
Multicast DNS (mDNS) ✓
-
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
-
Integrated RADIUS Server ✓
-
RADIUS over TLS (RadSec) ✓
-
Internet Failover with UniFi LTE Backup ✓
-
Internet Quality and Outage Reporting ✓
-
MAC Address Table Size: 4,000
Hardware
-
NVR Storage: Selectable NVMe SSD up to 2 TB
-
PoE Budget: 30W
-
Voltage Range PoE Mode: 50–57V
-
Max. Power Consumption: 29.4W (excluding PoE output)
-
Power Method: DC jack (54V DC/1.1A)
-

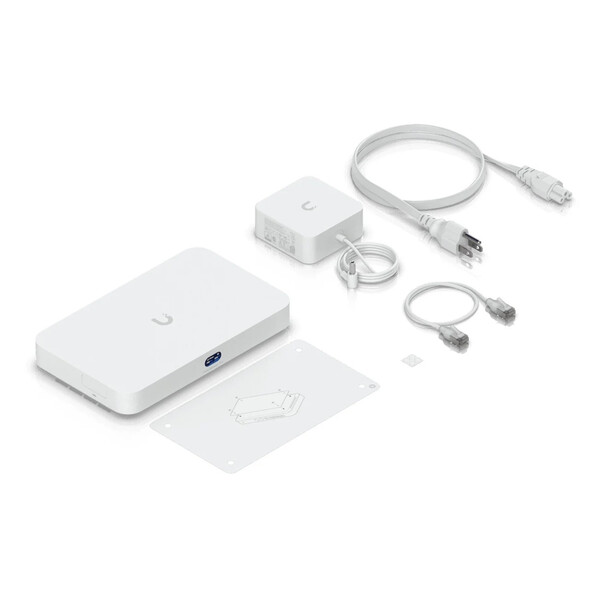

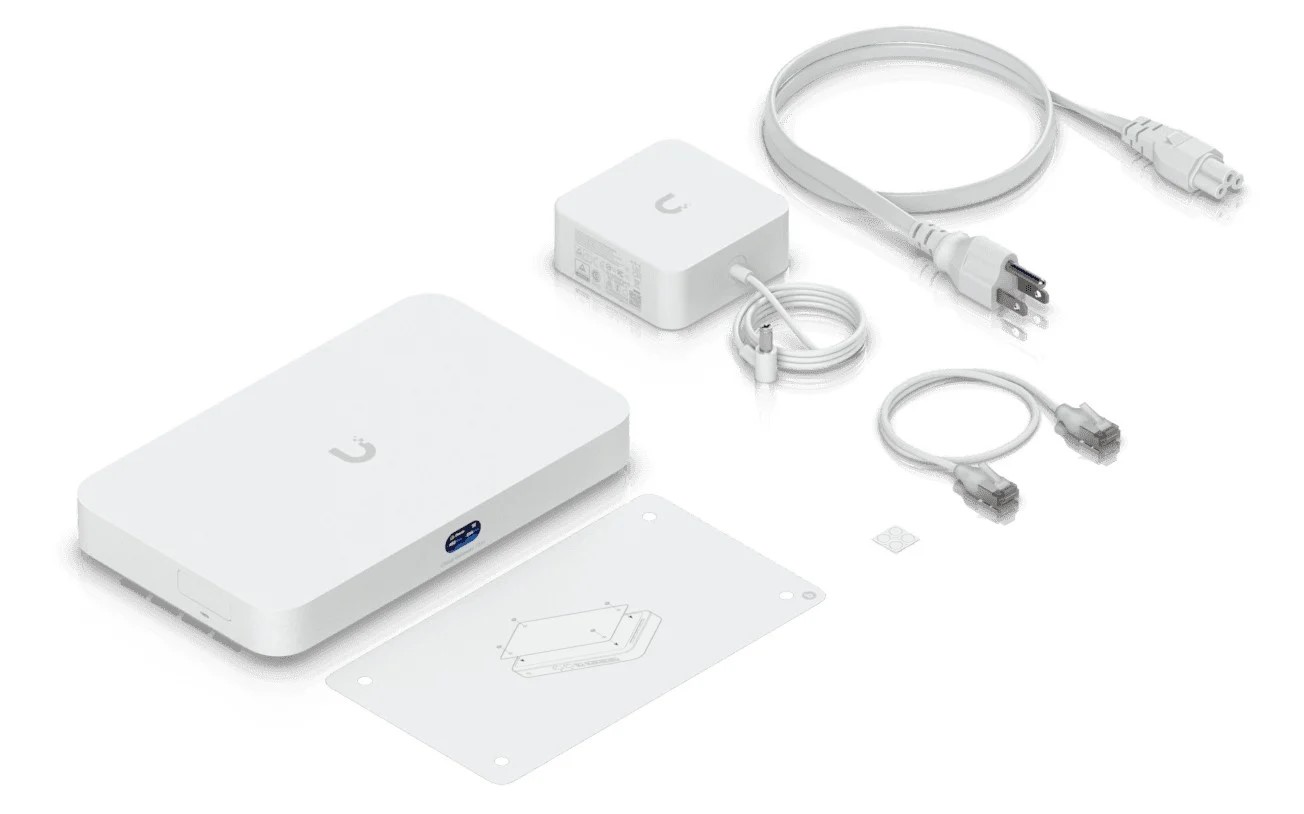

Power Supply: 54V DC/1.1A (adapter included)
-
Supported Voltage Range: 100–240V AC
-
Processor: Quad-core ARM Cortex-A73 at 2.2 GHz
-
System Memory: 3 GB
-
Weight: 675 g (without SSD), 734 g (with SSD)
-
Enclosure Material: Polycarbonate
-

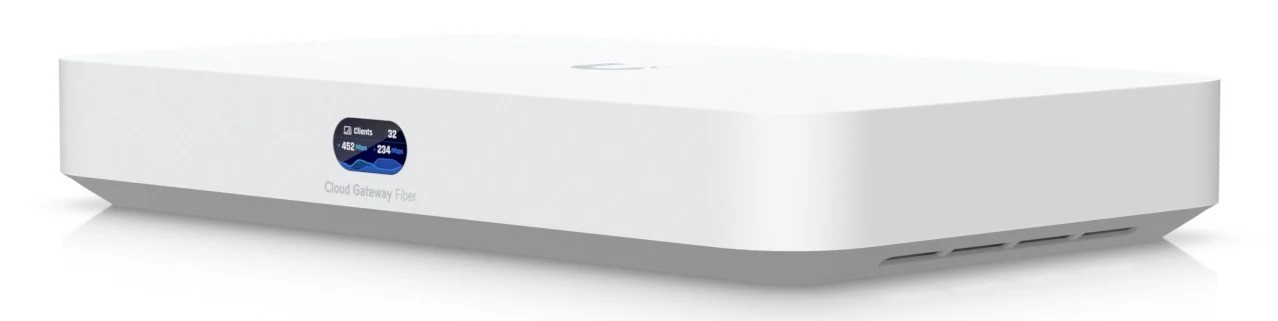

LCM Display: 0.96" status display
Management & Interfaces
-
Management: Ethernet, Bluetooth
-
LEDs: Ethernet ✓, SFP+ ✓
-
Button: 1 × Factory-reset
Environmental
-
ESD/EMP Protection: Air ± 8kV, Contact ± 4kV
-
Operating Temperature: 0 to 40 °C (32 to 104 °F)
-
Operating Humidity: 5–95% noncondensing
Compliance
-
NDAA Compliant: ✓
-
Certifications: CE, FCC, IC, SRRC
