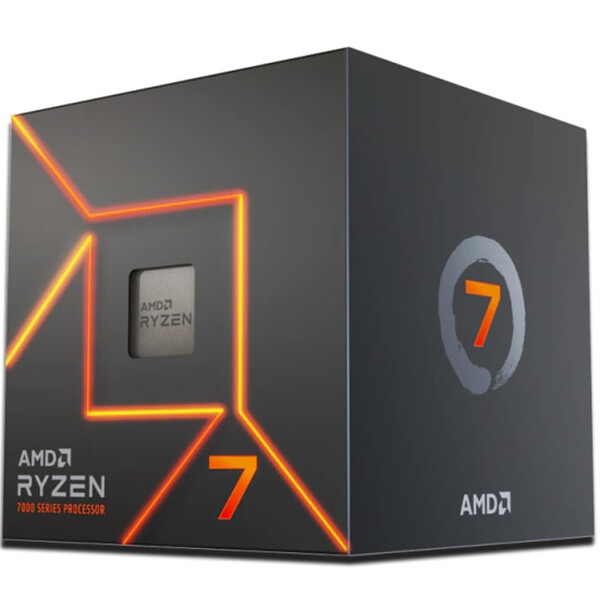

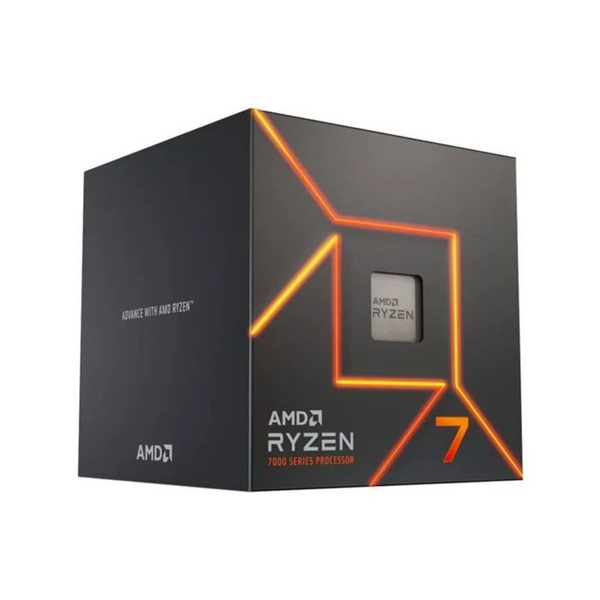

AMD CPU Desktop Ryzen 7 8C/16T 7700 (5.3GHz Max, 40MB,65W,AM5) box
General Specifications
Platform: Desktop
Market Segment: Enthusiast Desktop
Product Family: AMD Ryzen™ Processors
Product Line: AMD Ryzen™ 7 Processors
AMD PRO Technologies: No
Consumer Use: Yes
Regional Availability: Global
Former Codename: "Raphael AM5"
Architecture: "Zen 4"
# of CPU Cores: 8
Multithreading (SMT): Yes
# of Threads: 16
Max. Boost Clock: Up to 5.3GHz
Base Clock: 3.8GHz
L1 Cache: 512KB
L2 Cache: 8MB
L3 Cache: 32MB
Default TDP: 65W
Processor Technology for CPU Cores: TSMC 5nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
CPU Compute Die (CCD) Size: 71mm²
I/O Die (IOD) Size: 122mm²
Package Die Count: 2
Unlocked for Overclocking: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes
CPU Socket: AM5
Supporting Chipsets
A620
X670E
X670
B650E
B650
CPU Boost Technology: Precision Boost 2
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB)
AMD Wraith Prism
Max. Operating Temperature (Tjmax): 95°C
*OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support: Yes
Native USB 3.2 Gen 2 (10Gbps) Ports: 4
Native USB 3.2 Gen 1 (5Gbps) Ports: 0
Native USB 2.0 (480Mbps) Ports: 1
Native SATA Ports: 0
PCI Express® Version: PCIe® 5.0
Native PCIe® Lanes (Total/Usable): 28 / 24
Additional Usable PCIe Lanes from Motherboard
AMD X670E: 12x Gen4
AMD X670: 12x Gen4
AMD B650E: 8x Gen4
AMD B650: 8x Gen4
NVMe Support
Boot, RAID0, RAID1, RAID10
System Memory Type: DDR5
Memory Channels: 2
Max. Memory: 128GB
System Memory Subtype: UDIMM
Max Memory Speed:
2x1R: DDR5-5200
2x2R: DDR5-5200
4x1R: DDR5-3600
4x2R: DDR5-3600
ECC Support: Yes (Requires mobo support)
Graphics Capabilities:
Integrated Graphics: Yes
Graphics Model: AMD Radeon™ Graphics
Graphics Core Count: 2
Graphics Frequency: 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode: Yes
Supported Technologies
AMD EXPO™ Technology
AMD Ryzen™ Technologies
