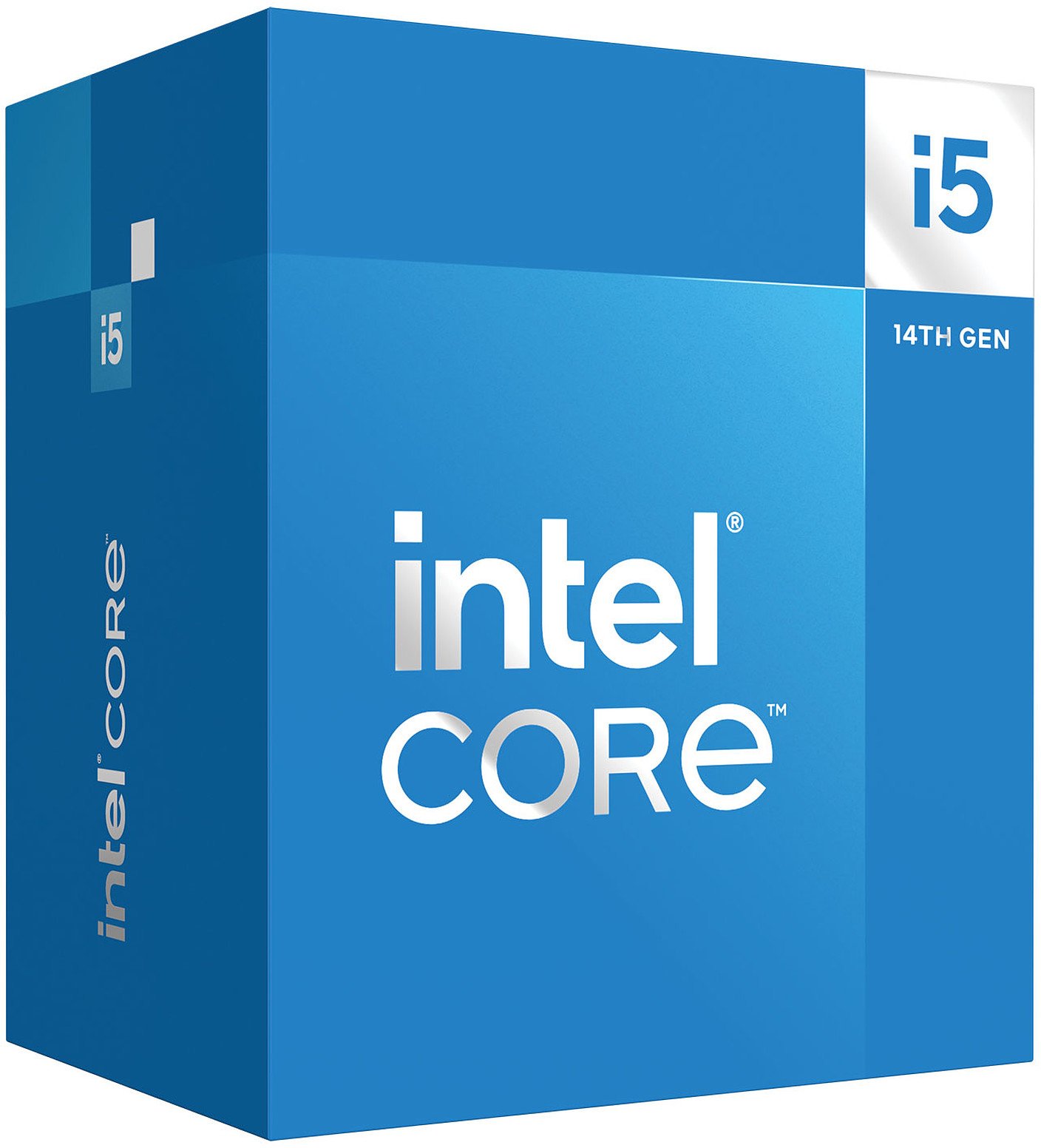

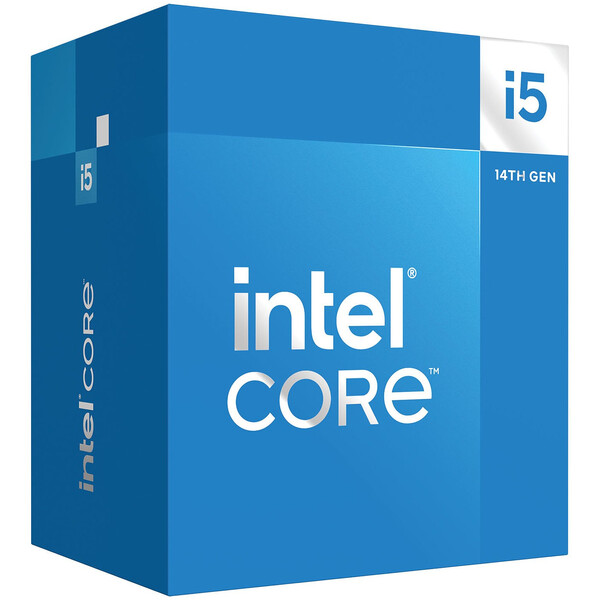

Intel Core i5-14400F BX8071514400FSRN47 (up to 4.70 GHz, 20M Cache, LGA1700) box

Product Collection: Intel® Core™ i5 processors (14th gen)
Code Name: Products formerly Raptor Lake
Vertical Segment: Desktop
Processor Number: i5-14400F
Lithography: Intel 7
Total Cores: 10
Performance-cores: 6
Efficient-cores: 4
Total Threads: 16
Max Turbo Frequency: 4.7 GHz
Performance-core Max Turbo Frequency: 4.7 GHz
Efficient-core Max Turbo Frequency: 3.5 GHz
Performance-core Base Frequency: 2.5 GHz
Efficient-core Base Frequency: 1.8 GHz
Cache: 20 MB Intel Smart Cache
Total L2 Cache: 9.5 MB
Processor Base Power: 65 W
Maximum Turbo Power: 148 W

Marketing Status: Launched
Launch Date: Q1'24
Embedded Options Available: No
Use Conditions: PC/Client/Tablet

Max Memory Size: 192 GB
Memory Types: Up to DDR5 4800 MT/s, Up to DDR4 3200 MT/s
Max # of Memory Channels: 2
Max Memory Bandwidth: 76.8 GB/s

DMI Revision: 4.0
Max # of DMI Lanes: 8
Scalability: 1S Only
PCI Express Revision: 5.0 and 4.0
PCI Express Configurations: Up to 1x16+4, 2x8+4
Max # of PCI Express Lanes: 20

Sockets Supported: FCLGA1700
Max CPU Configuration: 1
Thermal Solution Specification: PCG 2020C
TJUNCTION: 100°C
Package Size: 45.0 mm x 37.5 mm
Max Operating Temperature: 100°C

Intel Technologies: Intel GNA 3.0, Intel Thread Director, Intel DL Boost, Intel Speed Shift, Intel Turbo Boost 2.0, Intel Hyper-Threading, Intel 64
Instruction Set: 64-bit
Instruction Set Extensions: SSE4.1, SSE4.2, AVX2
Idle States: Yes
Enhanced Intel SpeedStep Technology: Yes
Thermal Monitoring Technologies: Yes
Intel VMD: Yes

Security: Intel Standard Manageability, Intel Secure Key, Control-Flow Enforcement, Intel AES-NI, Intel OS Guard, Execute Disable Bit, Intel Boot Guard, MBEC
Virtualization: Intel VT-x, Intel VT-d, Intel VT-x with EPT
