| Суич, тип | Fixed Port |
| Общ брой портове | 24 |
| Основни портове, тип | 10/100/1000Base-T |
| Power Over Ethernet (PoE) | Support both IEEE 802.3af PoE and IEEE 802.3at PoE+; 30W for any 12 ports or 15W for 24 ports; PoE power budget: 370W |
| Uplink портове | 4x SFP |
| Свободни (10GB) слотове | - |
| Управление | Web UI via Cisco Configuration Professional; CLI using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser. Single IP Management. Network management |
| Stackable | - |
| Fans | yes |
| Захранване | Single fixed power supply. Models have external power supply. Use the supplied AC power cord to connect the AC power connector to an AC power outlet. |
| Routing | Static |
| Памет (Flash, RAM) | 512MB DRAM, 256 MB Flash memory |
| Капацитет за маршрутизиране/превключване, Gbps | 10/20 Gbps (Forwarding/Switching) |
| Пропускателна способност, Mpps | 14.88 Mpps |
| MAC адреси | 15 360 |
| VLAN (брой, стандарти) | Maximum active: 256; IDs available: 4094 |
| QoS | Up to 8 egress queues and 2 thresholds per port, Ingress policing, QoS through DSCP mapping and filtering, QoS through traffic classification, Trust boundary, AutoQoS, Shaped Round Robin (SRR) scheduling and Weighted Tail Drop (WTD), 802.1p CoS |
| L2 мрежови стандарти | 802.1D STP, 802.1p CoS Prioritization, 802.1Q VLAN, 802.1s, 802.1w, 802.1X, 802.1ab LLDP, BT v4.0, 802.3ad, 802.3af, 802.3ah (100BASE-X single/multimode fiber only), 802.3x full duplex, 802.3, 802.3u, 802.3ab, 802.3z, RMON, SNMP, 802.3az, 802.3ae |
| L3 мрежови стандарти | - |
| IPv6 functionality | IPv6 routing, Access Control Lists (ACLS) |
| Сигурност | 802.1X, Authentication, ACLS, Port-based ACLs, SSH, Kerberos, and SNMP v3, SPAN, TACACS+ and RADIUS authentication, MAC address notification, MAC Authentication Bypass (MAB), BPDU Guard, IP Source Guard, SSH v2, STRG, IGMP |
| Размери (Ш, Д, В), mm | 444.5 x 345.2 x 43.9 |
| Опция за монтаж | Rackmount |
| Други | USB mini-B port, USB-A port for storage and Bluetooth console |

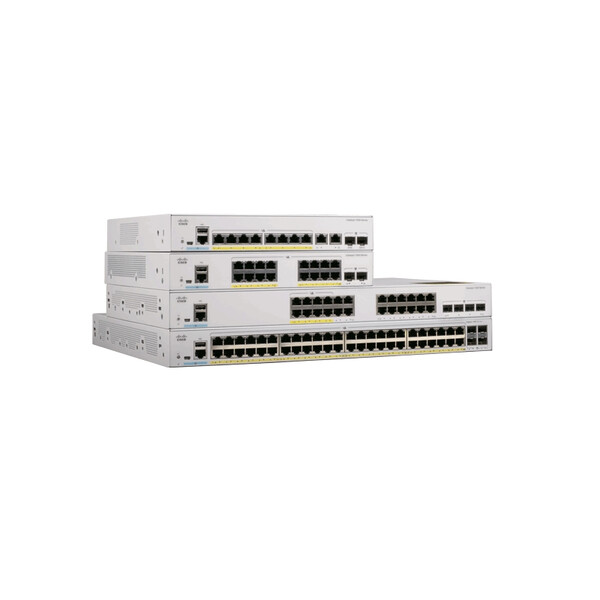

Комутатор Cisco Catalyst 1000 24port GE, Full POE, 4x1G SFP
Availability:
No stock
Brand:
CISCO
