Antenna Ubiquiti airFiber X AF-11G35

AF-11G35_VZ
Out of stock
  • Brand UBIQUITI
full product features
Price
813,55 BGN
Add to wishlist Comparison list

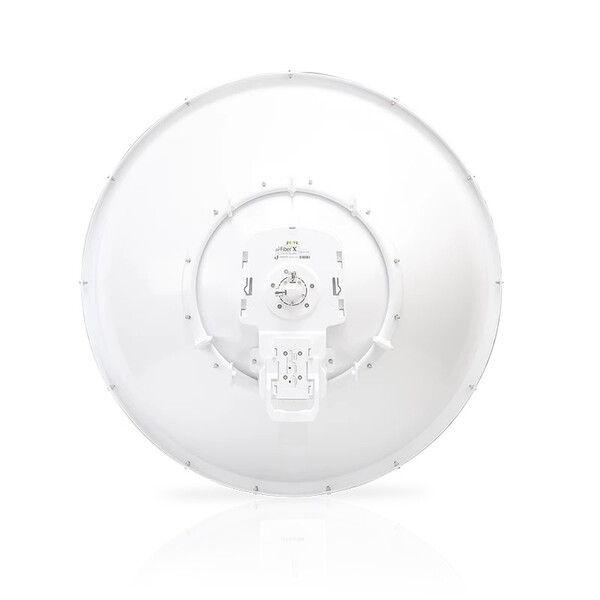

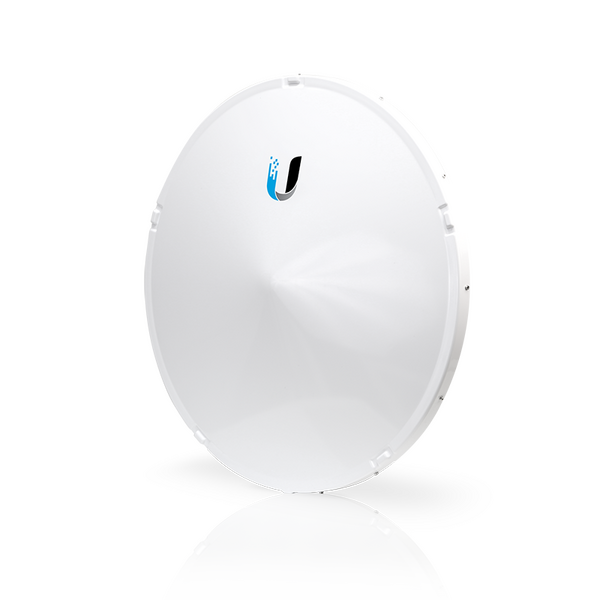

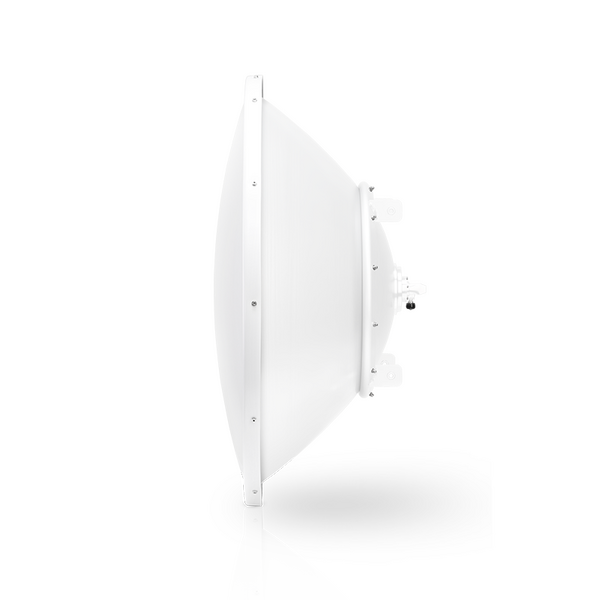

Antenna Ubiquiti airFiber X AF-11G35

The airFiber® X Antennas feature significant advances in noise isolation and beam performance to complement the airFiber X radios for carrier backhauls and Point-to-Point (PtP) bridging.

Features:
Dimensions ø 811 x 460 mm (ø 31.9 x 18.1")

Weight
Mount Not Included : 7.14 kg (15.74 lb)
Mount Included : 11.85 kg (26.12 lb)

Frequency Range
10.3 - 11.7 GHz

Gain
35 dBi

HPOL Beamwidth
2.5°

VPOL Beamwidth
2.5°

Front-to-Back Ratio
60 dB

Max. VSWR
2:1

Wind Survivability
200 km/h (125 mph)

Wind Loading
1538 N @ 200 km/h (346 lbf @125 mph)

Polarization
Default: H/V
After Rotating OMT: ±45°

Cross-Pol
Isolation 35 dB

Mounting
Uses the AF-5/AF-5U Mounting System

Pattern Regulatory
ETSI 302 217-4-2, Class 3 and FCC Cat B

Availability:
No stock
Brand:
UBIQUITI
Warranty:
24 месеца

Брошура (airFiber_AF-11G35_DS.pdf, 4,335 Kb) [Download]

Ръководство за бързо инсталиране (airFiber_AF-11G35_QSG.pdf, 7,649 Kb) [Download]

Декларация за съответствие (AF-11G35_DoC.pdf, 136 Kb) [Download]
