Ubiquiti Wave Pro Wave-Pro

Mechanical

• Dimensions: Ø424.4 x 166.2 mm (Ø16.7 x 6.5")

• Weight:

  • Without mount: 2.8 kg (6.2 lb)

  • With mount: 4 kg (8.8 lb)

• Enclosure Material: Aluminum alloy, UV stabilized plastic

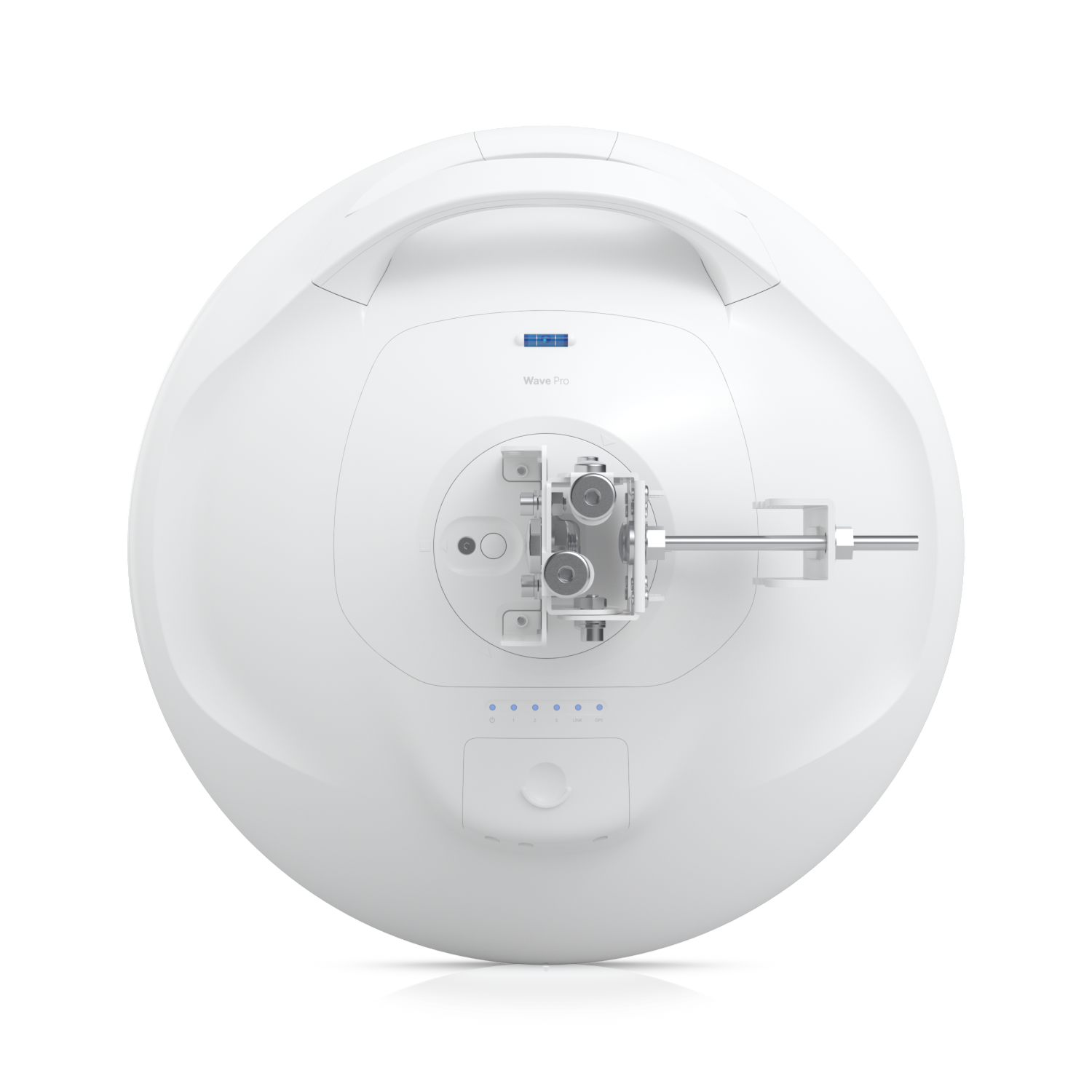

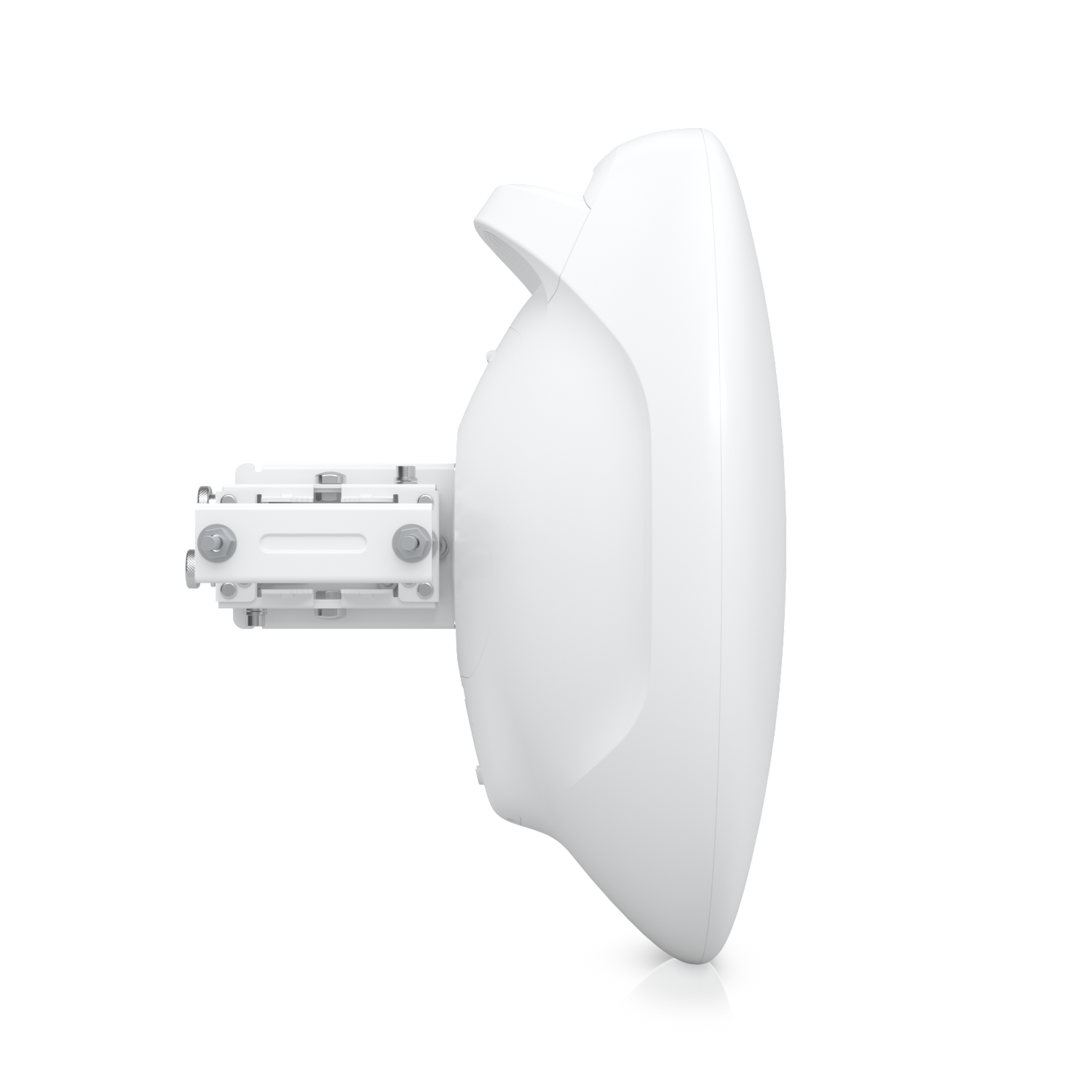

• Mount Material: Stainless steel

• Pole Mount Diameter: 25 to 76.2 mm (1 to 3") on pipe outer diameter

• Wind Loading: 369 N at 200 km/h (83 lbf at 125 mph)

• Weatherproofing: IPX6

Hardware

• Processor: Quad-core ARM® Cortex®-A53 at 1.4 GHz

• Memory: DDR3L 512 MB

• Networking Interface:

  • (2) 2.5 GbE RJ45 ports

  • (1) 10G SFP+ port

• Max. Power Consumption: 26W

• Power Method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)

  • Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

• Power Supply: 48V DC, 0.65A, 2.5 GbE PoE adapter (Included)

• Supported Voltage Range: 44–54V DC, 22–27V DC

• GPS: Yes

• Button: Factory reset

• LEDs: Power, (2) Ethernet, SFP+, GPS, link

• Ambient Operating Temperature: -40 to 60° C (-40 to 140° F)

• Ambient Operating Humidity: 5 to 95% noncondensing

• Certifications: FCC, IC, CE

• NDAA Compliant: Yes

Software

• Operating Mode: PtP, PtMP station

• Ubiquiti Specific Features: Integrated 60 GHz radio, discovery protocol, Wave technology

• Services: UISP, ping watchdog, NTP client, SNMP

• Tools: Antenna alignment, discovery utility, ping, trace route, speed test, cable test* (FW version 3.3.0 and later), site survey* (FW version 3.3.0 and later), traffic shaping** (FW version 3.4.0 and later)

• Network: Bridge/Router* mode (Router is available in PtMP station mode only)

• Application Requirements: UISP: Version 2.3.0 and later

System

• Total Throughput: 5.4 Gbps

• Max. Range:

  • PtP: Up to 15 km

  • PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)

• Encryption: WPA2-PSK (AES)

RF

• Operating Frequency: 57 to 71 GHz (Depends on regulatory region)

• Channel Bandwidth: 2160, 1080, 540* MHz (FW version 3.3.0 and later)

• Operating Channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz (Depends on regulatory region)

• Modulation: 16QAM, QPSK

• Antenna Gain: 46 dBi

• Polarization: Vertically linear

• Beamwidth:

  • Azimuth: 3 dB 1.3°

  • Elevation: 3 dB 1.3°

Back-Up RF

• WiFi Standard: 802.11ax (WiFi 6)

• Operating Frequency:

  • US/CA: U-NII-1 5150 - 5250 MHz, U-NII-2A 5250 - 5350 MHz, U-NII-2C 5470 - 5725 MHz, U-NII-3 5725 - 5850 MHz

  • Worldwide: 5150 - 5875 MHz (Depends on regulatory region)

• Channel Bandwidth: 20, 40, 80 MHz

• Max. Conducted TX Power: 27 dBm

• Modulation: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

• Antenna Gain: 22 dBi

• Polarization: Dual-linear

• Beamwidth:

  • Azimuth: 3 dB 8°

  • Elevation: 3 dB 8°

• Cross-Pol Isolation: 20 dB

LEDs

• Power:

  • Flashing white: bootup in progress

  • White: not connected to UISP application

  • Blue: connected to UISP application

  • Flashing blue: locate in progress

  • Blue/white: firmware upgrade in progress

• Ethernet: Flashing blue: Ethernet traffic detected

• SFP+: Flashing blue: SFP+ traffic detected

• Links: White: 5 GHz link, Blue: 60 GHz link

• GPS: Blue: receiving at least (4) GPS satellite signals
