Antenna Ubiquiti airFiber X 2GHz AF-2G24-S45

AF-2G24-S45_VZ
Out of stock
full product features
Price
438,27 BGN
Add to wishlist Comparison list

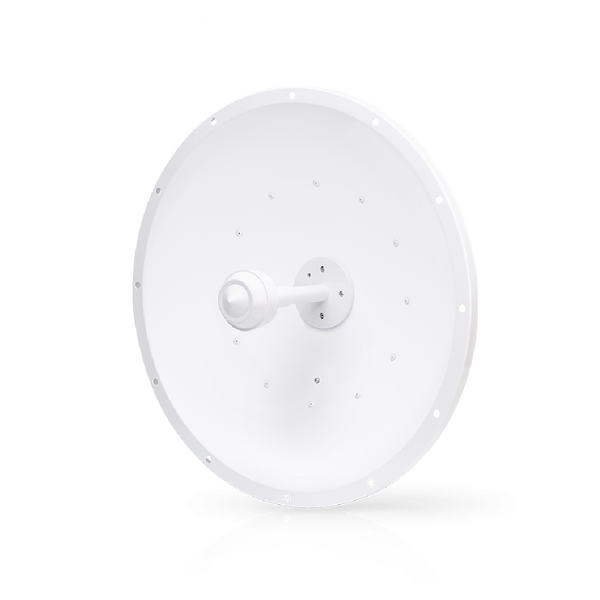

 Antenna Ubiquiti airFiber X 2GHz AF-2G24-S45

Special MIMO antenna for AF-2X, 2.4GHz, 24dBi, diameter 650mm
Special 2.4GHz directional antenna designed for AirFiber-2X with 24dBi gain and antenna diameter 650 mm.
The narrow radiation pattern and polarization shifted by 45° against the standard H/V polarization guarantees the highest possible signal to noise ratio (SNR) and high resistance to interference from other boards.

Features:
Frequency: 2.3 - 2.7 GHz
Polarization: Dual-Linear
Gain: 24dBi
Beam Angles (H/V): 6.6°/6.8°
Connectors: 2x RSMA female
VSWR: <1.6
Diameter: 650 mm

Package Contents:

  • Universal Pole Mount
  • airFiber X Radio Bracket
  • Weatherproof RF Connectors

Model comparison


Availability:
No stock
Brand:
UBIQUITI
Warranty:
24 месеца

Мрежови продукти - Антени

F/B Ratio:
  • 28 dB
Max. VSWR:
  • 1.6:1
Wind Loading:
  • 787 N @ 200 km/h (177 lbf @125 mph)
Wind Survivability:
  • 200 km/h (125 mph)
Защита:
  • VSWR(MAX.) 1.6:1
Монтаж:
  • Pole Mount
  • Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included
  • Външен
Поляризация:
  • Dual Linear
  • Vertical
Размери:
650 мм diameter
Сертификати:
  • EN 302 326 DN2
Тегло:
9,8 кг
Тип:
  • Outdoor
  • PARABOLIC
  • Външна
Усилване:
  • 2.4GHz 24dBi
  • F/B Ratio >28dB
Цвят:
  • Бял

Брошура (airFiber_AF-2G24-S45_QSG.pdf, 4,718 Kb) [Download]
