Antenna Mikrotik DISC Lite5 RBDisc-5nD

RBDisc-5nD_VZ
Out of stock
full product features
Price
121,44 BGN
Add to wishlist Comparison list

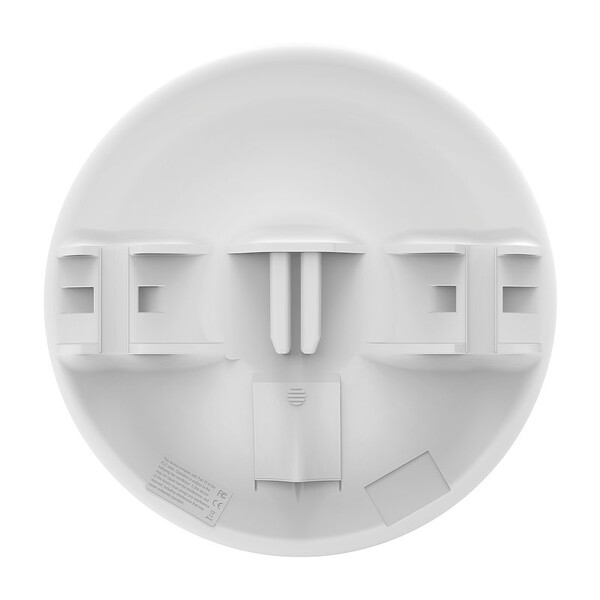

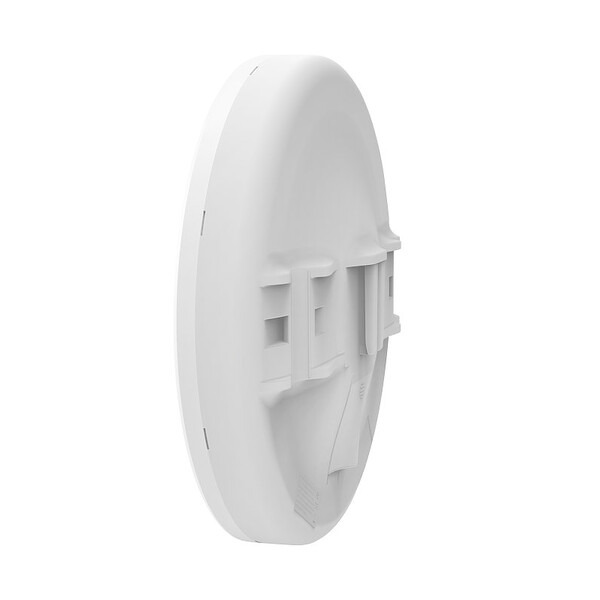

Antenna Mikrotik DISC Lite5 RBDisc-5nD

The DISC is a low cost high gain 5 GHz CPE. By using a unique and innovative short backfire
antenna design, we were able to achieve 21 dBi antenna gain in a compact and easy to
deploy package.
DISC Lite5 is based on our popular LHG hardware design and is equipped with 21dBi dual chain
802.11n integrated CPE with 600 MHz CPU, 64 MB RAM, 1x 10/100 Mbps Ethernet port and RouterOS
L3 installed. It comes complete with a power supply, PoE injector and mounting ring. The device is
also compatible with our SXT mounting systems, including the quickMOUNT pro series.
The RouterOS Level3 allows to use the DISC Lite5 as a CPE or for 5 GHz Point-to-Point links.

Features:

  • CPU: AR9344 600 MHz/ 64MB RAM/ 16 MB Flash memory
  • RouterOS license level 3
  • Passive PoE-in: 10-30V
  • Max. Power consumption: 6W
  • 1x 10/100 Ethernet port
  • 8x LEDs

Package contents:

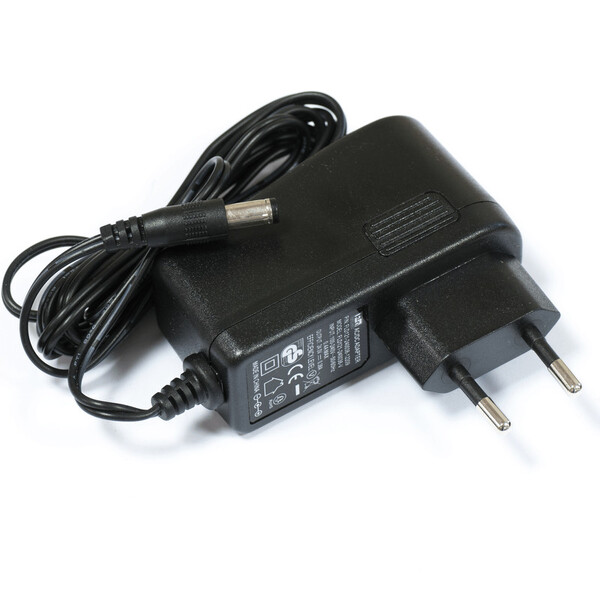

  • 24 V 0.38 A power adapter

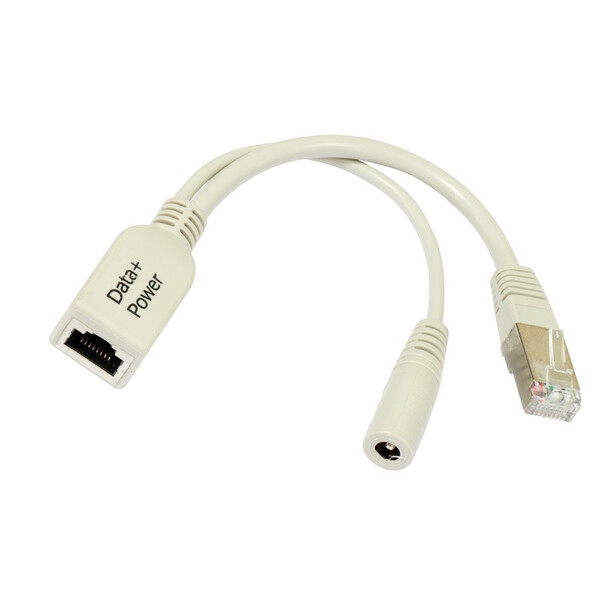

  • PoE injector

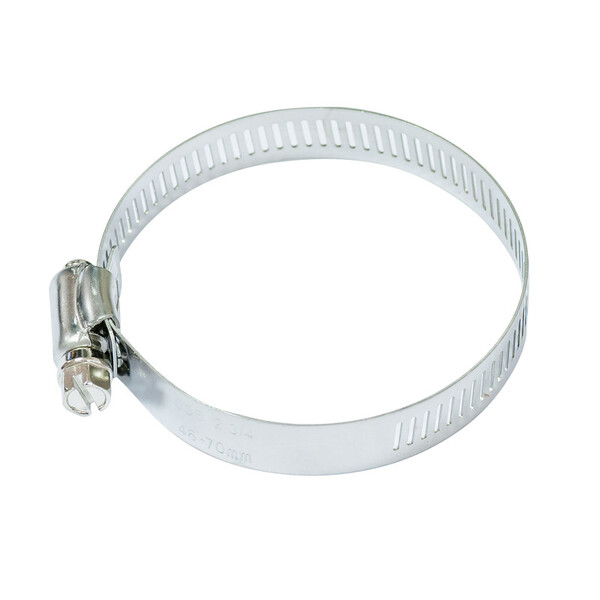

  • Metal ring

Availability:
No stock
Brand:
MIKROTIK
Warranty:
12 месеца ( юридически лица ) / 24 месеца ( физически лица )

Мрежови продукти - Антени

F/B Ratio:
  • 30 dB
Frequency:
  • AUTO Negotiation/AUTO MDI/MDIX
Захранване:
  • 11 V - 30 V
  • 24V 0.38A power adapter
  • 6W
Интерфейс:
  • PoE
Монтаж:
  • Wall Mount
  • Външен
  • на стена
Памет:
  • 64 MB
Процесор:
  • AR9344 600 MHz
Работна температура:
  • -40 to 70° C
Размери:
Ø265 мм, височина 80 мм
Сертификати:
  • CE
  • FCC
Тип:
  • Outdoor
  • Външна
Усилване:
  • 22 dBi
  • 5GHz
Цвят:
  • Бял

Брошура (DISC_Lite5-170927115739.pdf, 442 Kb) [Download]

Декларация за съответствие (NII_TC622521-180202161455.pdf, 207 Kb) [Download]

Декларация за съответствие (RouterBOARD_RBDisc_5nD_Declaration_of_Conformity_RED_update_02_07_2018-180702133011.pdf, 96 Kb) [Download]
