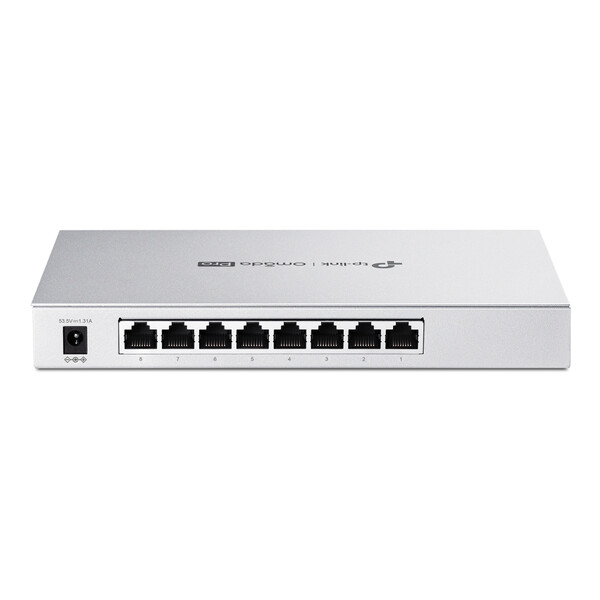

8-ports desktop/rackmount swtich TP-Link Omada Pro S4500-8GP with 4-Port PoE+

S4500-8GP
In stock
  • Приложение Rackmount
  • Тип Desktop switch
  • Brand TP-LINK
full product features

8-ports desktop/rackmount swtich TP-Link Omada Pro S4500-8GP with 4-Port PoE+

  • 62W PoE Budget: 4× 802.3at/af-compliant PoE+ ports with a total power supply of 62 W.*
  • Full Gigabit Ports: 4× gigabit PoE+ ports and 4× gigabit non-PoE ports provide high-speed connections.
  • Integrated into Omada Pro: Zero-Touch Provisioning (ZTP), Intelligent Anomaly Detection, and centralized cloud management with cloud access and the Omada App.**
  • Management Flexibility: Supports a selection of management methods, including centralized cloud management with the Omada Pro Controller, CLI, Web GUI, and SNMP.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: ACL, IP-MAC-Port Binding, VLAN Binding, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP Snooping.

What This Product Does
The S4500-8GP is equipped with eight RJ45 ports (10/100/1000 Mbps) with four of them being compliant with 802.3at/af PoE. Users can supply up to 62W total power to connected devices and easily deploy equipment such as wireless access points or IP cameras without worrying about power outlets. PoE support, together with high-performance static routing, enterprise-level QoS, advanced security features, and a choice of Layer 2 management options, make the S4500-8GP an excellent choice for business networking.

Layer 2 and Layer 2+ features include IGMP Snooping, MLD Snooping, and Static Routing. While IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication protect against broadcast storms, ARP attacks, Denial-of-Service (DoS) attacks, and other threats. Quality of Service (QoS) provides enhanced traffic management capabilities to ensure fast transfers for your important data, even when the network is busy. Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image, mean faster setup and configuration with less downtime.

IEEE 802.3at/af-compliant Power over Ethernet
Eight IEEE 802.3at/af-compliant PoE ports supply up to 62 W total power to 802.3at and 802.3af devices.* Quickly and easily set up wireless access points, surveillance cameras, IP phones, and other PoE devices without the hassle and cost of installing power cabling.

Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission—even when bandwidth is in short supply.

Abundant L2 and L2+ features
The S4500-8GP supports a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee that your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Integrated into Omada Pro
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.** Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Apart from the ability to be centrally managed via Omada Pro controllers, the S4500-8GP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.



Package Contents
• S4500-8GP
• Power Adapter
• Installation Guide
• Rubber Feet

Availability:
Limited
Brand:
TP-LINK
Warranty:
60 месеца
Warranty criteria:
Warranty Card/Serial Number

Мрежови продукти - Суичова

Quality of Service:
  • Bandwidth Control
  • Priority Schedule Mode - SP (Strict Priority) - WRR (Weighted Round Robin)
  • Queue Weight Config
  • Storm Control
  • Support 8 priority queues
  • Support 802.1p CoS/DSCP priority
VLAN:
  • 802.1Q tag VLAN
  • GVRP
  • MAC VLAN: 12 Entries
  • Max. 4K VLAN Groups
  • VLAN, Private VLAN, Voice VLAN
  • Voice VLAN
Вид на монтаж:
  • Rackmount
  • Декстоп
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • Jumbo Frame 9 KB
  • MAC Address Table 8K
  • Packet Buffer Memory 4.1 Mbit
  • Packet Forwarding Rate 11.90 Mpps
  • Switching Capacity 16 Gbps
Захранване:
  • External Power Adapter (Output: 53.5 VDC/ 1.31 A)
Интерфейс:
  • 8× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3at/af PoE+)
  • Auto-Negotiation/Auto MDI/MDIX
Метод на комутация:
  • Store and Forward
Мрежови характеристики:
  • Auto-Negotiation
  • MDI/MDI-X switch
  • Switching Capacity: 160 Gbps
Охлаждане:
  • Активно
Приложение:
  • Rackmount
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • 0 ~ 50 ˚C
Размери височина:
26 mm
Размери дълбочина:
126 mm
Размери ширина:
209 mm
Сертификати:
  • CE, FCC, RoHS
Софтуерни функции:
  • 802.1p/DSCP QoS
Съвместимост с мрежови стандарти:
  • IEEE 802.1p
  • IEEE 802.3 an
  • IEEE 802.3ab
  • IEEE 802.3bz
  • IEEE 802.3u
  • IEEE 802.3x
Температура на съхранение:
  • -40℃~70℃ (-40℉~158℉)
Тип:
  • Desktop switch

Брошура (Omada_Pro_Smart_Switch_Datasheet__2_.pdf, 8,385 Kb) [Download]

Ръководство за инсталиране (7106511367_S4500-8GP_UN__IG__1_.pdf, 294 Kb) [Download]

Декларация за съответствие (CE_DOC_S4500-8GP.pdf, 877 Kb) [Download]
