Antenna Ubiquiti airFiber 24HD

AF-24-HD_VZ
Out of stock
  • Brand UBIQUITI
full product features
Price
6 797,20 BGN
Add to wishlist Comparison list

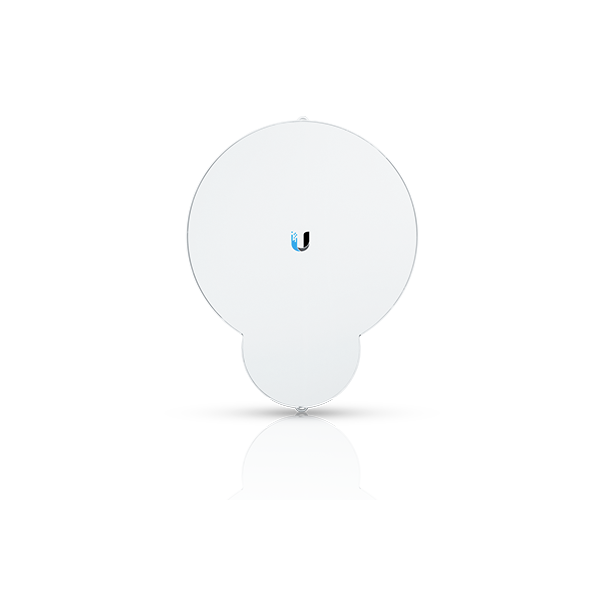

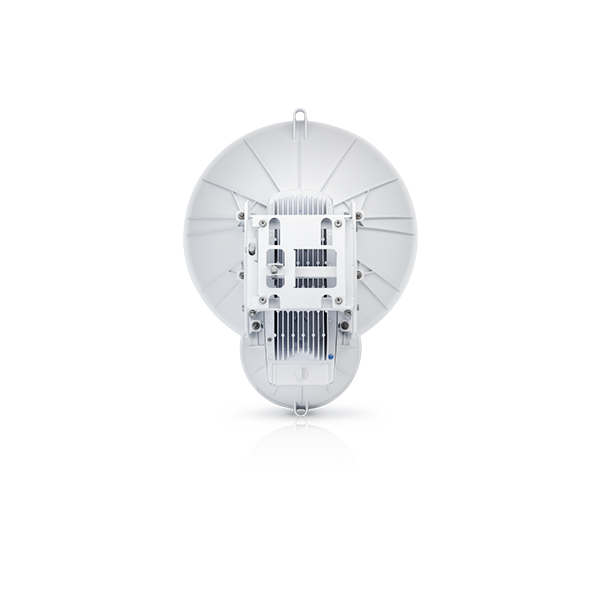

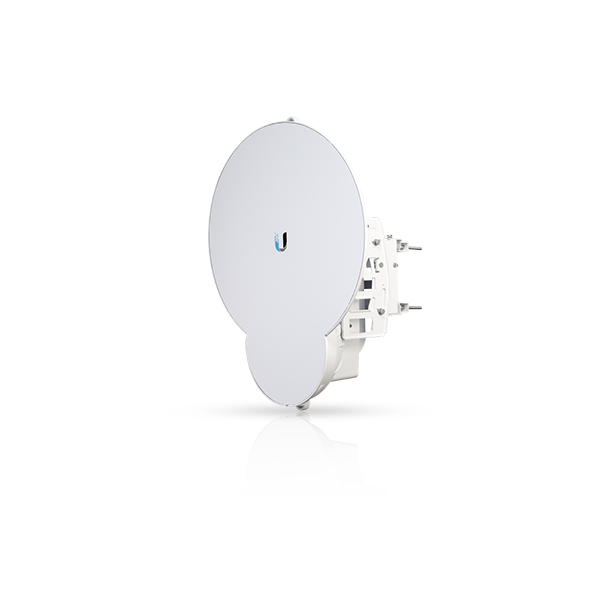

Antenna Ubiquiti airFiber 24HD

Revolutionary Wireless Technology
Introducing airFiber®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks.
Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range.
airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Supports 24 GHz frequencies.

  • Works with UNMS Network Controller
  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Automatic Client Shaping
  • Customer Billing

Features:

  • 1х 10/100/1000 Mbps Ethernet port
  • 1x 10/100 Mbps config. ethernet port
  • 1х RJ-12, Alignment Tone port
  • Maximum Throughput: 2 Gbps
  • Maximum Range: ~20+ km
  • Packets per Second: >1 million
  • Ecryption: 128-Bit AES
  • GPS antenna
  • Operating Frequency - 24.1 GHz, 24.2 GHz
  • Modulation: 256QAM, 64QAM, 16QAM, QPSK MIMO, QPSK SISO, ¼x QPSK SISO
  • Palarization: Dual-Slant Polarization
  • Max. power consumption: 50W
  • Power method: Passive PoE (42-58VDC)
  • Powering: 50V, 1.2A PoE gigabit  /included/
  • Wind Survivability: 125 mph
Availability:
No stock
Brand:
UBIQUITI
Warranty:
24 месеца

Мрежови продукти - Антени

EAN:
0810354022050
F/B Ratio:
  • 70 Dbi
Frequency:
  • 1 RJ-12 Alignment Tone Port
  • 1x 10/100 Ethernet Port
  • External GPS antenna
  • Gigabit LAN Port с POE
Wind Loading:
  • 770 N @ 200 km/hr (170 lbf @ 125 mph)
Wind Survivability:
  • 200 km/h (125 mph)
Захранване:
  • 50V 1.2A PoE Gigabit Ethernet Adapter (Included)
  • Passive PoE
Защита:
  • 128-bit AES
Интерфейс:
  • PoE
Монтаж:
  • Pole Mounting Kit (Included)
  • Wall/Pole (Kits Included)
  • Външен
  • на стена
Обхват на работа:
  • 20+ км range
Поляризация:
  • Dual-Slant Polarization
Работна температура:
  • -40℃~55℃
Размери:
593 x 768 x 370 мм
Сертификати:
  • CE
  • CE, FCC, IC
  • FCC
  • IC
Тегло:
17 кг.
Тип:
  • Outdoor
  • Външна

Брошура (airFiber_DS.pdf, 4,428 Kb) [Download]

Декларация за съответствие (AF-2X_DoC.pdf, 139 Kb) [Download]
