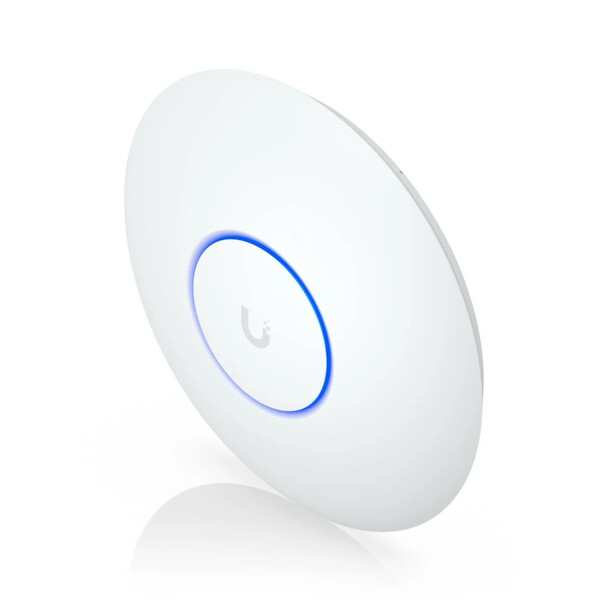

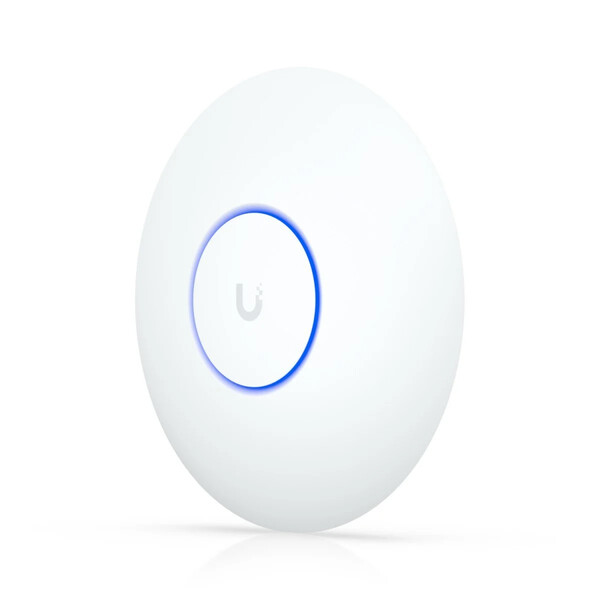

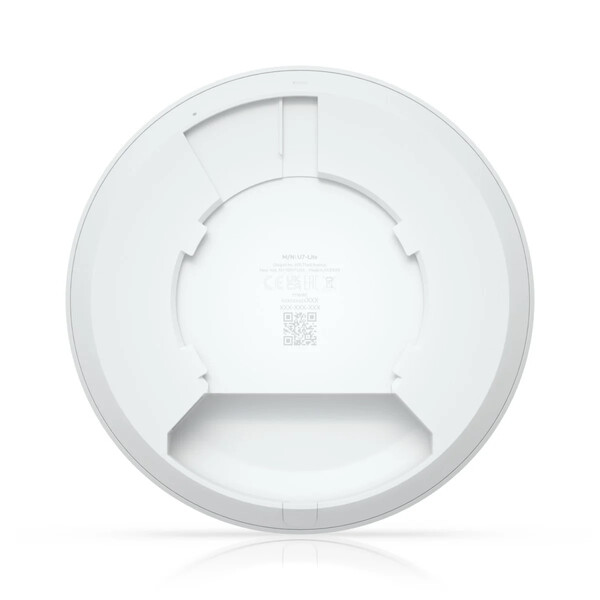

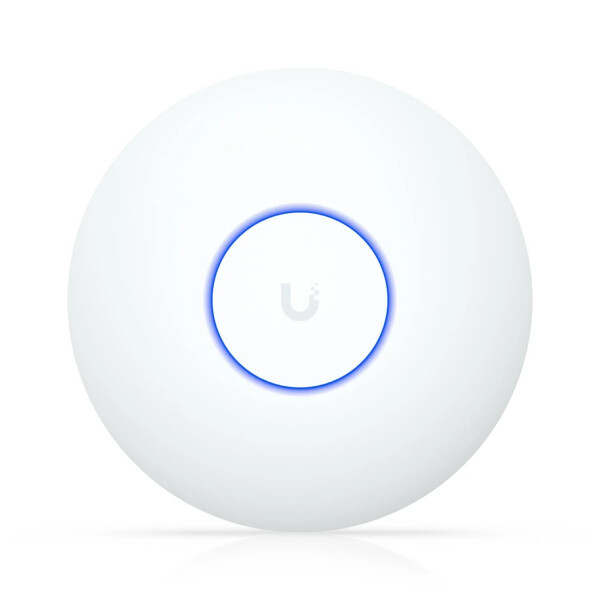

Ubiquiti UniFi WiFi 7 Access Point U7-Lite

Overview

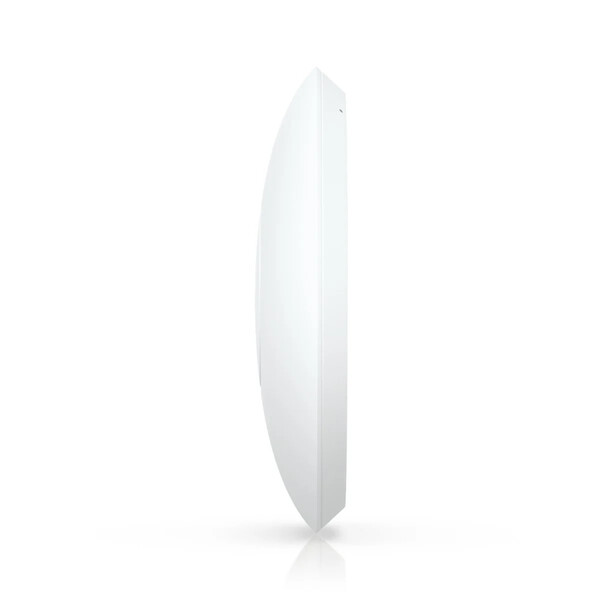

Dimensions

Ø171.5 x 33 mm (Ø6.8 x 1.3")

WiFi Standard

WIFi 7

Spatial Streams

4

Coverage Area

115 m² (1,250 ft²)

Max. Client Count

200+

Uplink

2.5 GbE

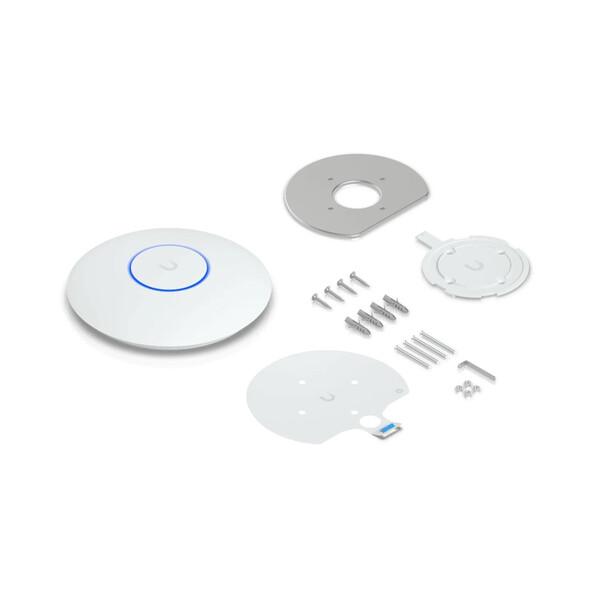

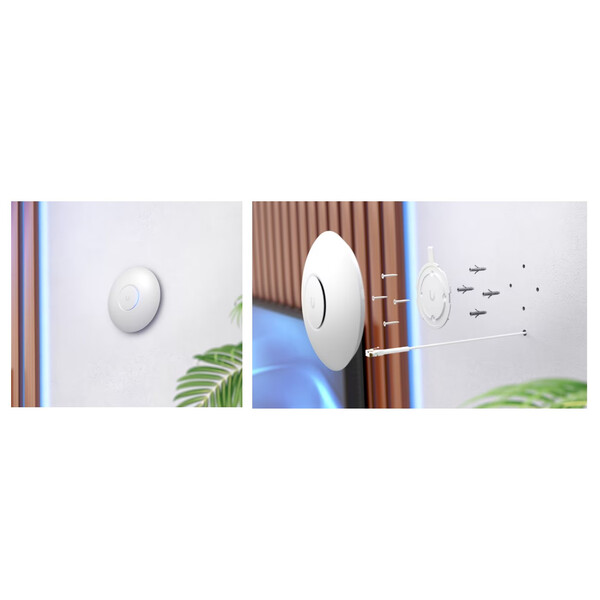

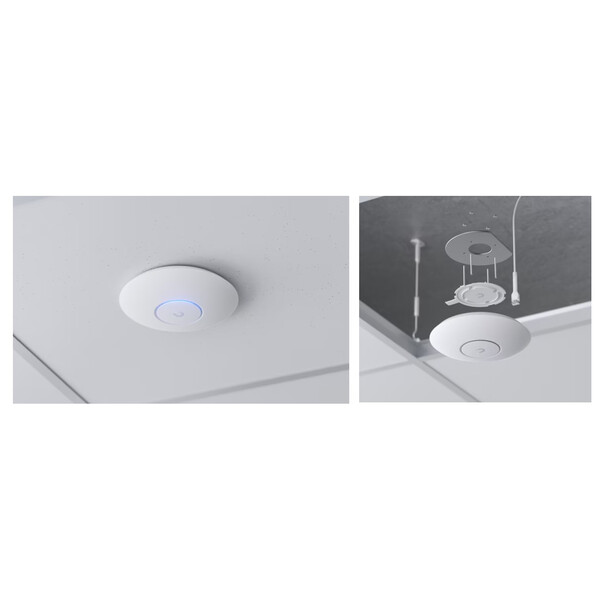

Mounting

Ceiling, Wall (Lite Mount Included)

Power Method

PoE

Performance

MIMO

5 GHz

2 x 2 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz

4.3 Gbps (BW240)

2.4 GHz

688 Mbps (BW40)

Antenna Gain

5 GHz

5 dBi

2.4 GHz

4 dBi

Max. TX Power

5 GHz

24 dBm

2.4 GHz

23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7)

7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page

Yes

Voucher Authentication

Yes

Payment-Based Authentication

Yes

External Portal Server Support

Yes

Password Authentication

Yes

Guest Network Isolation

Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

13W

Supported Voltage Range

42.5—57V DC

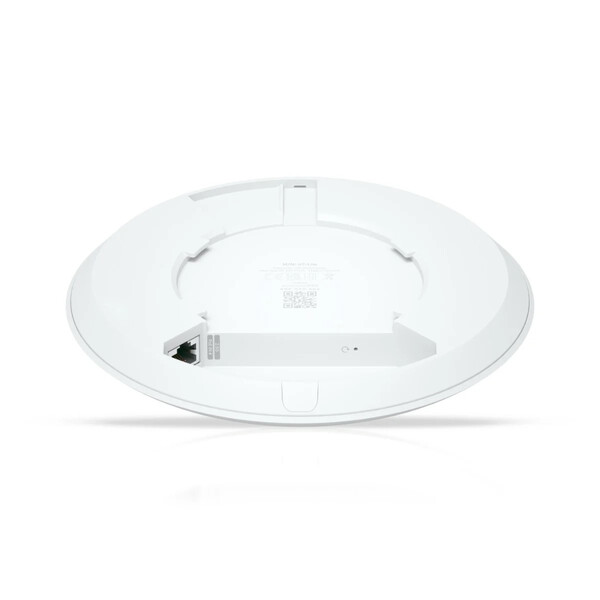

Networking Interface

(1) 2.5 GbE RJ45 port

Weight

313 g (11 oz)

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate

Mount Material

UV-stabilized polycarbonate, galvanized steel (SGCC)

LEDs

System

White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications

CE, FCC, IC

Ambient Operating Temperature

-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network

Version 9.0.114 and later

UniFi OS

iOS™ version 10.20.2 and later Android™ version 10.21.7 and later
