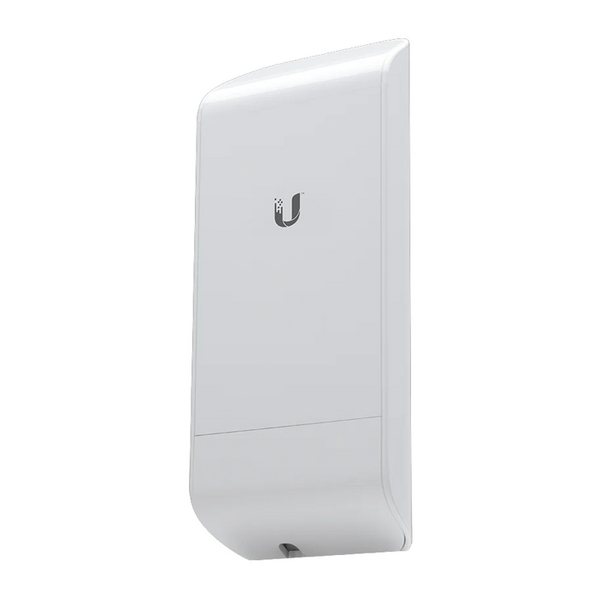

Ubiquiti NanoStation LocoM5 Access Point
150+ Mbps real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before.
The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE.
The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.
New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor.
The New NanoStation M provides a secondary ethernet port with software enabled POE output for seamless IP Video integration.
Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location.
In addition, any NanoStation can easily become 802.3af 48V compliant through use of Ubiquiti's Instant 802.3af adapter.
Remote reset is an additional option. Nanostation M comes standard as 24V without remote reset.
Version 5 of Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.
Features:
- CPU: Atheros MIPS 74Kc, 560 MHz/64 MB DDR2, 8 MB Flash
- (1) 10/100 Ethernet Port
- Max. VSWR: 1.4:1
- Beamwidth: 45° (H-pol)/45° (V-pol)/45° (Elevation)
- Power Supply: (PoE) 24V, 0.5A
- Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
