Access Point TP-Link Omada Pro AP9778 BE19000 Ceiling Mount Wi-Fi 7

• Unprecedented Wi-Fi 7 Speeds: Simultaneous 11520 Mbps on 6 GHz, 5760 Mbps on 5 GHz, and 1376 Mbps on 2.4 GHz for up to 19 Gbps WiFi speeds.
• 320 MHz and MLO: Provide lower latency for your enterprise network.
• Two 10 Gbps Ethernet Ports: Ensure high throughput on your business network.
• PoE Support: Supports Power over Ethernet (802.3bt) for convenient deployment and installation.
• High-Density Connectivity up to 1500+ Clients: Improves WiFi performance in dense environments with OFDMA, BSS Color, and MU-MIMO.
• Integrated into Omada SDN: Supports Centralized Cloud Management, Zero-Touch Provisioning (ZTP), and Intelligent Monitoring.
• Centralized Management: Cloud access and the Omada app offer ultra convenience and easy management.​

What This Product Does
AP9778, the Omada Pro BE19000 Ceiling Mount WiFi 7 Access Point, provides up to 19 Gbps speeds with the latest WiFi 7 technologies. Two built-in 10G Ethernet ports ensure high network throughput. High-density environments will no longer be a hindrance.

Integrating into the Omada Software Defined Networking (SDN) solution, AP9778 runs in an efficient management way. Centralized and remote management can liberate managers and help reduce maintenance costs.

Wi-Fi 7: Swifter, Smoother, Stronger
Supersized Throughput for Better Experiences
With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds.  Making full use of these new resources, the throughput of AP9778 reaches up to 19 Gbps.

Higher Capacity for Increased Traffic Demands
WiFi 7 supports 4096-QAM with 12 bits rather than WiFi 6’s 10 bits. The updated modulation method enables each signal to carry more dense amounts of data. Equipped with advanced 4096-QAM, AP9778 empowers your business to meet ever-growing traffic demands from high-bandwidth applications, such as remote offices, HD video conferencing, and cloud-based applications.

Lower Latency for Boosted Network Reliability
AP9778 allows network devices to communicate across multiple bands and channels simultaneously thanks to Multi-Link Operation (MLO). Additionally, Multi Resource Units (Multi-RUs) open up previously wasted channels. More bands can be used concurrently to share redundant data, and interference will be blocked to improve reliability.

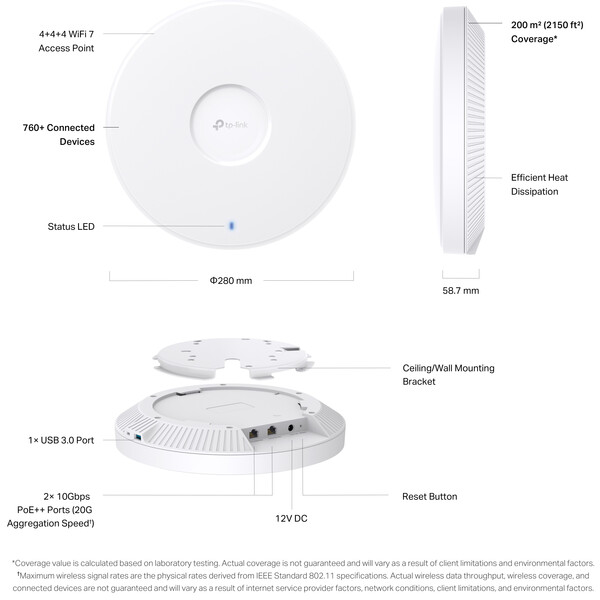

Professional Hardware Design
AP9778 is equipped with 2× 10G PoE++ input ports. The supported link aggregation function can aggregate two ports together at most to get a higher speed of up to 20 Gbps. One port is used for Power over Ethernet (PoE), and another one can be a hot backup for stable and reliable networking. Furthermore, the AP778's smart antennas improve network flexibility and signal quality by altering antenna directions based on terminal device location.

Enhanced Network Security
Customizable WIDS and adaptive WIPS assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9778 also provides secure WiFi access along with multiple authentication options (SMS/Voucher/RADIUS) and abundant wireless security technologies, such as WPA3.

Centralized Management
The Omada Software Defined Networking (SDN) platform provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface. Seamless wireless connections are provided, making them ideal for use in hotels, education, retail, offices, and more.

Easy Deployment

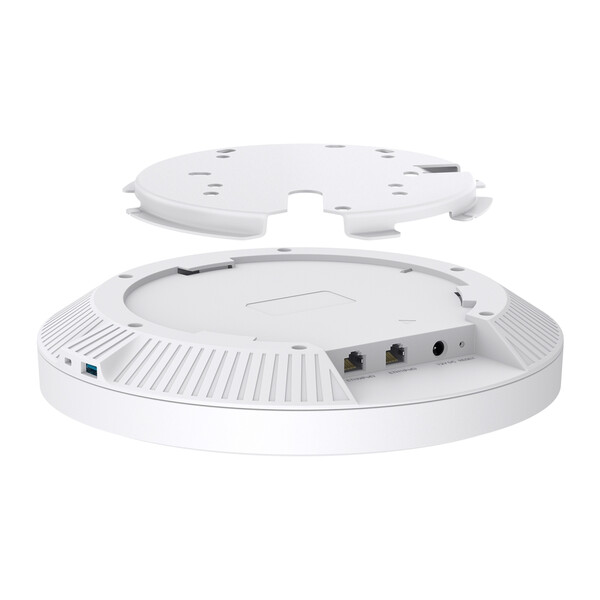

Intelligent software and quality hardware design together lead to simple deployment. With Automated Radio Frequency Deployment, AP9778 efficiently optimizes RF deployment by scanning the surrounding area 24/7.  Supporting DC and 802.3bt PoE, flexible product installation is at the fingertips. Due to its compact case design, the AP9778 can be installed in two steps: simply push and rotate.

Package Contents
• AP9778
• Installation Guide
• Ceiling/Wall Mounting Kits
