Access Point TP-Link Omada Pro AP7650 AX3000 Wi-Fi 6 wall

AP7650
In stock
  • Brand TP-LINK
full product features

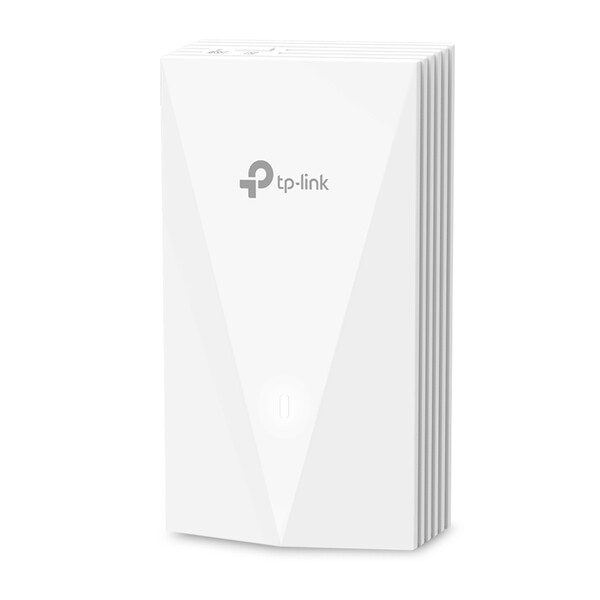

Access Point  TP-Link Omada Pro AP7650 AX3000 Wi-Fi 6 wall

  • Ultra-Fast AX3000 WiFi 6 Speeds:: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • Complete In-Room WiFi Coverage: Guaranteed strong signals and corner-to-corner WiFi coverage.
  • Multiple Gigabit Ports: Connect multiple devices with three downlink gigabit ports, one with PoE pass-through.
  • Centralized Cloud Management: Integrates into Omada SDN for cloud access and remote management.
  • Secure Guest Network: Implement multiple authentication options (SMS/Voucher) packed with high-quality wireless security technologies.
  • Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.


What This Product Does
AP7650, the Omada Pro AX3000 Wall Plate WiFi 6 access point, delivers speeds of up to 2976 Mbps which are boosted by the latest WiFi 6 technology such as 1024-QAM, BSS Coloring, and more. Multiple built-in Gigabit Ethernet ports allow a smooth network for each room, such as dormitories, apartments, villas, and more. PoE supported also provides easy and flexible installations.

Network with Enterprise-Grade WiFi 6
The overall 2976 Mbps WiFi performance is increased by 1024-QAM and longer OFDM symbol, supporting both 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

The WiFi 6 features and advanced wireless techniques guarantee higher network efficiency and lower latency, such as BSS Coloring, Band Steering, and more.

Auto Channel Selection and Power Adjustment
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.

Full Gigabit Ports to Bridge Network

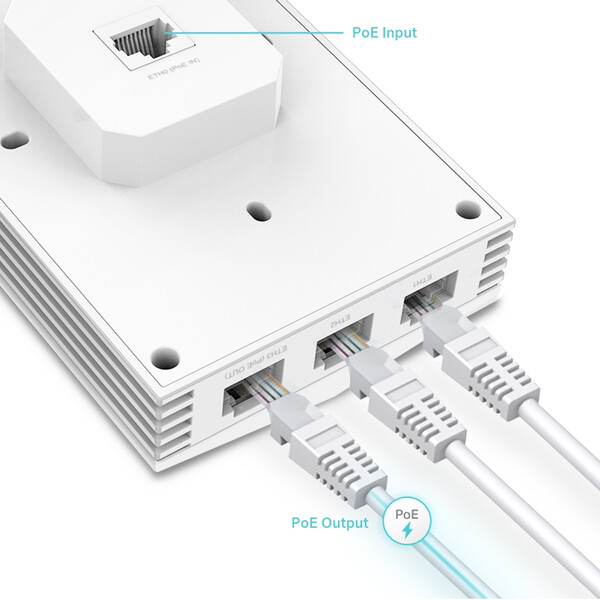

Wired devices like VoIP phones can be powered with no need for extra electrical cables. The four data ports (1 uplink + 3 downlinks) transfer data at multiple gigabits, allowing you to connect several devices to your gigabit network. One of the downlink ports offers PoE pass-through to eliminate the need for that extra power port.

More than Speed, Security Matters
Customizable WIDS§ and adaptive WIPS§ empower the protection of critical data and network resources.

Intelligent Anomaly Detection and Analysis§ maintains 24/7 detection of network anomalies with timely alarms. Protect your network anywhere, anytime.

AP7650 also provides secure WiFi access along with multiple authentication options (SMS, Voucher, etc) and abundant wireless security technologies, such as WPA3.

Cloud Centralized Management
The Omada Software Defined Networking (SDN) platform provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface. Seamless wireless connections are provided, making them ideal for use in dormitory, apartment, villa, and more.

Quick, Simplified Installation

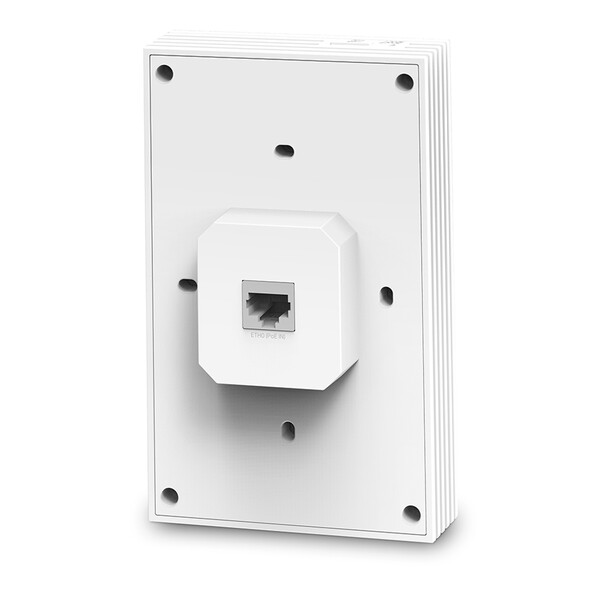

AP7650 supports 802.3af/802.3at PoE, so there’s no need for more wiring.

With an easy-to-install design, there is no need to bring someone to install our AP7650. Plug it into the existing Ethernet cables, and it’s ready.

Follow the configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status, and manage clients, all from the convenience of a smartphone or tablet.

Package Contents
• AP7650
• Installation Guide
• Mounting Kits

Availability:
Limited
Brand:
TP-LINK
Warranty:
60 месеца
Warranty criteria:
Warranty Card/Serial Number
Color:
White

Декларация за съответствие v1 (AP7650_1.0-CE_DOC.pdf, 1,023 Kb) [Download]

Брошура v1 (Omada_Pro_AP_Datasheet.pdf, 11,182 Kb) [Download]

Кратко ръководство за инсталация v1 (7106510354_AP7650_IG.pdf, 472 Kb) [Download]

Ръководство за работа (7106511073_Indoor_AP_EU2_16_Languages.pdf, 14,773 Kb) [Download]
