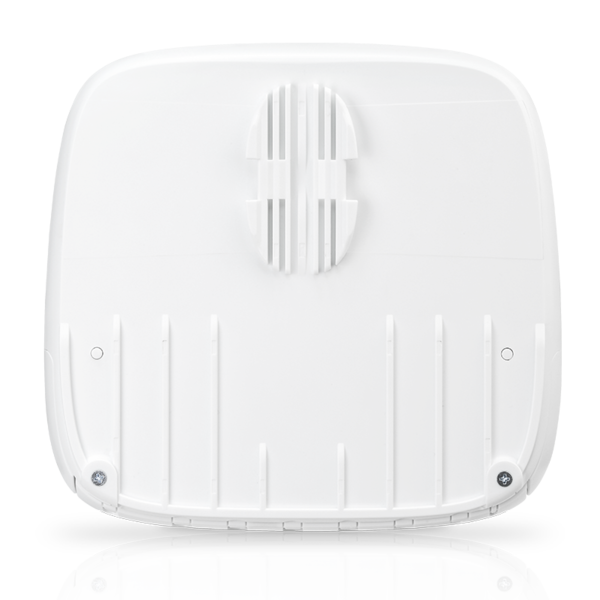

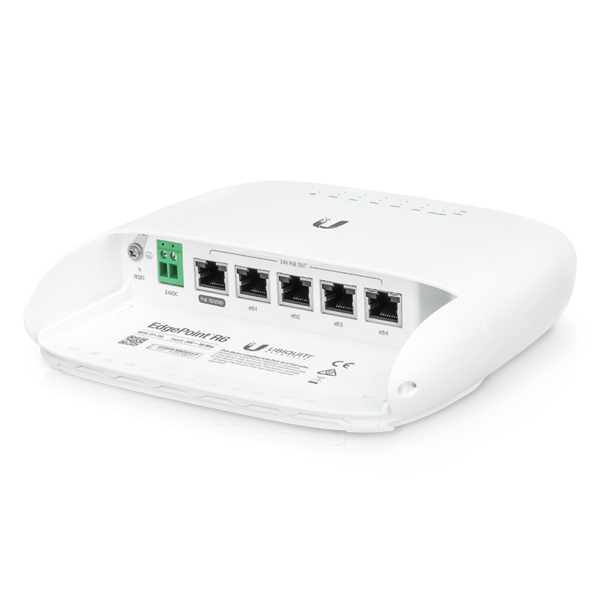

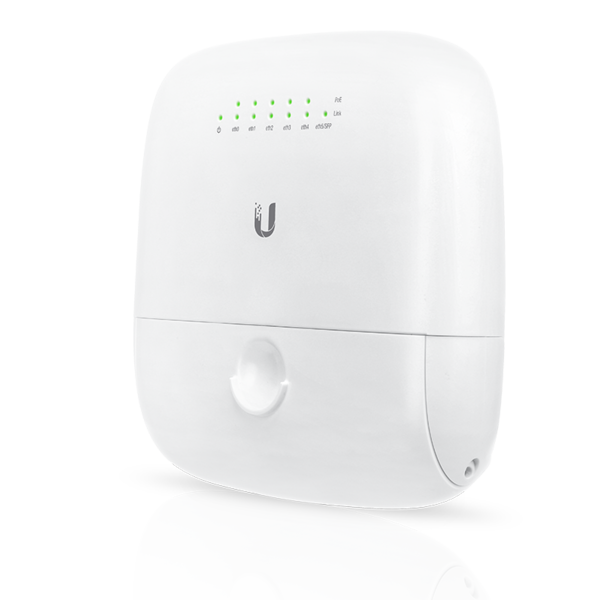

WISP Control Point Ubiquiti EdgePoint R6 EP-R6
Ubiquiti Networks introduces the EdgePoint™, part of the EdgeMAX® platform. The first application-specific designed WISP control point, the EdgePoint combines EdgeMAX routing features with fiber backhaul and versatile powering capabilities.
The EdgePoint features FiberProtect to significantly reduce electrostatic discharge (ESD) failures and electromagnetic interference (EMI), greatly improve data signal integrity, and consolidate the wired data backhaul to a single fiber cable run for long-distance connectivity.
Features:
- Five RJ45 Ethernet ports and one SFP Ethernet port
- Weatherproof Enclosure for Outdoor Use
- Powerful Routing or Switching Features
- Fiber Backhaul Capability
- Intuitive User Interface
- Max. Power Consumption: 7W (Excludes PoE Output)
- Power Input:
- (1) DC Terminal Block
- (1) RJ45 (eth0)
- Power Supply: Min. 24V/0.3A (Excludes PoE Output Power)
- VDC Input: 24V, 3A
- Passive PoE Input: (1) 24V / 1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, eth0
- (Do NOT Configure eth0 in PoE Output Mode if You Are Using a PoE Input Power Source.)
- Passive PoE Output: (5) 24V / 0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, eth0 to eth4
- Power Monitoring: (1) DC Terminal Block, Input Power: (1) RJ45, eth0, Input Power
- Ports: 5x 10/100/1000 RJ45 Ports
- Data Ports: 1x SFP Port
