5G router Mikrotik Chateau D53G-5HacD2HnD-TC&RG502Q-EA

D53G-5HacD2HnD-TC&RG502Q-EA_VZ
Out of stock
full product features
Price
1 170,24 BGN
Add to wishlist Comparison list

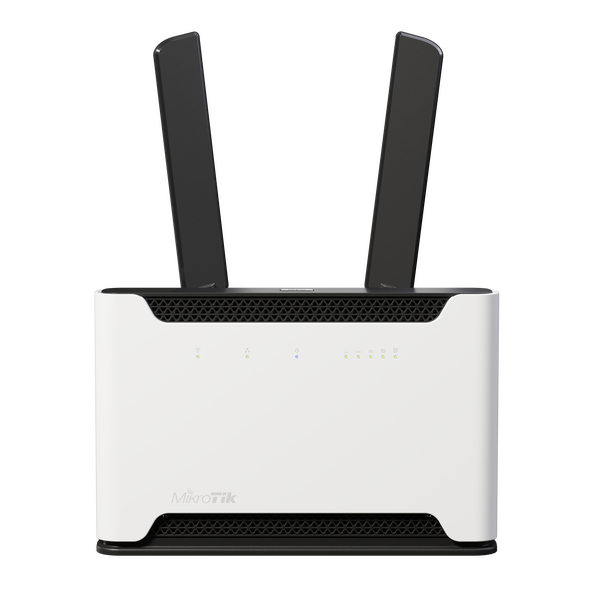

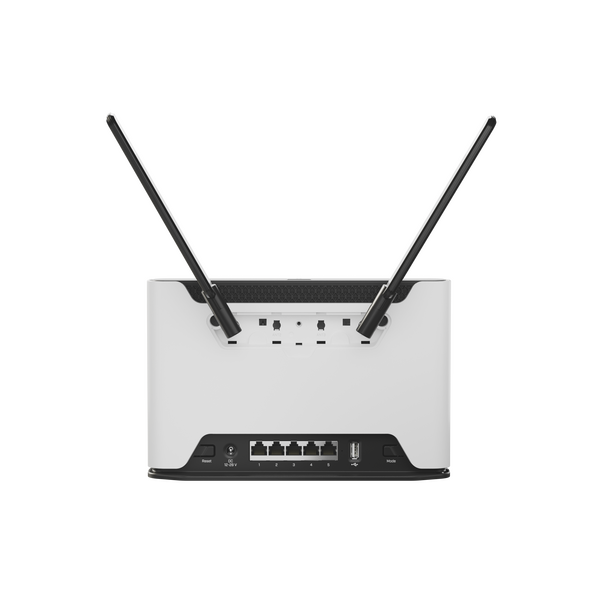

5G router Mikrotik Chateau D53G-5HacD2HnD-TC&RG502Q-EA

Chateau 5G s a high-speed, dual-band home access point with LTE/5G support – for really fast Internet anywhere, anytime. There are many options to choose from, depending on your needs: from CAT4 LTE up to the CAT20 LTE and the ultra-fast 5G. But LTE is not the only option – Chateau also features 5 x Gigabit Ethernet ports and a full size USB port.
Strong dual-chain dual-band 2.4/5 GHz wireless for concurrent coverage will solve most interference issues in a crowded environment. For example, a client can simultaneously use the 2.4 GHz channel for all household mobile devices and reserve the 5 GHz channel for tasks that are sensitive to packet loss – such as streaming high-quality videos.
And there is another great feature – you can use TR-069 technology to create a custom remote client management option. You can choose how much control your clients need and which features of the highly versatile RouterOS they get to use. Some operators use this to allow users to configure the router via the same web-page they use to pay bills, others restrict novice users from meddling with the settings to provide better browsing experience in the long run.

Features:

  • CPU: 4-core IPQ-4019 716 MHz / 256 MB RAM / 16 MB flash
  • 5x 10/100/1000 Mbps Ethernet ports
  • 1х MicroSIM slot
  • 1х USB type-A port(1A)
  • 1х m.2 port
  • Wi-Fi standarts:
    • 2.4 GHz @ 300 Mbps (802.11b/g/n)
    • 5GHz @ 867 Mbps (802.11a/n/ac)
  • OS: RouterOS (v7 only) license level 4
  • TR-069 technology
  • Powering: 24V/1A DC with power adapter
  • DC input voltage: 12-28V
  • Max. consumption energy: 23W

Mobile specs:

  • 3G Category: R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
  • 3G bands: 6 (850 MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) / 19 (800 MHz) / 1 (2100MHz)
  • LTE Category: 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
  • LTE FDD bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 18 (800 MHz) / 19 (800 MHz) / 20 (800MHz) / 26 (850MHz) / 28 (700MHz) / 32 (1500 MHz)
  • LTE TDD bands: 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) / 34 (2000 MHz)
  • 5G NSA FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
  • 5G NSA TDD bands: 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz) / 38 (2600 MHz)
  • 5G SA FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
  • 5G SA TDD bands: 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 79 (4700 MHz) / 38 (2600 MHz) / 40 (2300 MHz)

Availability:
No stock
Brand:
MIKROTIK
Warranty:
12 месеца ( юридически лица ) / 24 месеца ( физически лица )

Мрежови продукти

Interface:
  • 5 10/100/1000 Ethernet ports
  • SIM Card Slot
Processor:
  • IPQ-4019 4-core, 716 MHz
USB портове:
  • USB 2.0
Wi-Fi скорост:
  • 2.4GHz: Up to 300Mbps
  • 5GHz: Up to 867Mbps
  • AC1200
Wi-Fi Технология:
  • 802.11ac
  • IEEE 802.11ac/n/a 5GHz
  • IEEE 802.11b/g/n 2.4GHz

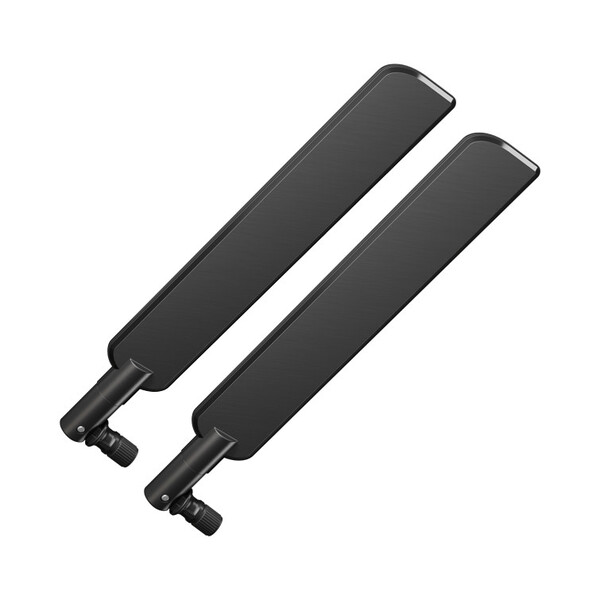

Антени:
  • 2 външни антени
безжични функции:
  • AP mode
Бутони:
  • Reset Button
Вид антени - филтър:
  • сваляеми антени
Вид на мрежата:
  • Wireless
  • Жична
Захранване:
  • Външно 24V, 1A
Охлаждане:
  • пасивно
Приложение:
  • За бизнеса
  • За дома
Системни изисквания:
  • Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher,or other Java-enabled browsers
  • iOS 8.0 or later / Android 4.3 or later / Bluetooth 4.0 or later
Софтуерни функции:
  • MikroTik app
  • RouterOS License level 4
  • Webpage
  • поддържа TR-069 - ISP функция за управление
Температура на съхранение:
  • -40℃~70 ℃ (-40 ℉~158℉)
Форм фактор:
  • Desktop

Брошура (Chateau_5G_220106.pdf, 533 Kb) [Download]

5G modem options (Chateau_distro_4b_210344.pdf, 348 Kb) [Download]

Декларация за съответствие (ID164_D53G-5HacD2HnD-TCRG502Q-EA_DOC_210722.pdf, 2,060 Kb) [Download]
