Cloud Core Router Mikrotik CCR1036-8G-2S+EM 8-Gbit ports и 2-SFP+ ports

CCR1036-8G-2S+EM_VZ
Out of stock
  • EAN 8592457063186
  • Приложение Rackmount
  • Тип Cloud Core Router
  • Brand MIKROTIK
full product features
Price
3 212,40 BGN
Add to wishlist Comparison list

Cloud Core Router Mikrotik CCR1036-8G-2S+EM 8-Gbit ports и 2-SFP+ ports

Our fastest router has now become even better - the new CCR1036-8G-2S+ now has two SFP+ ports for 10G interface support (SFP+ module available separately).
It uses the same 36 core Tilera CPU as our other CCR1036 model, and delivers the same performance, but now, ten gigabit links are possible.

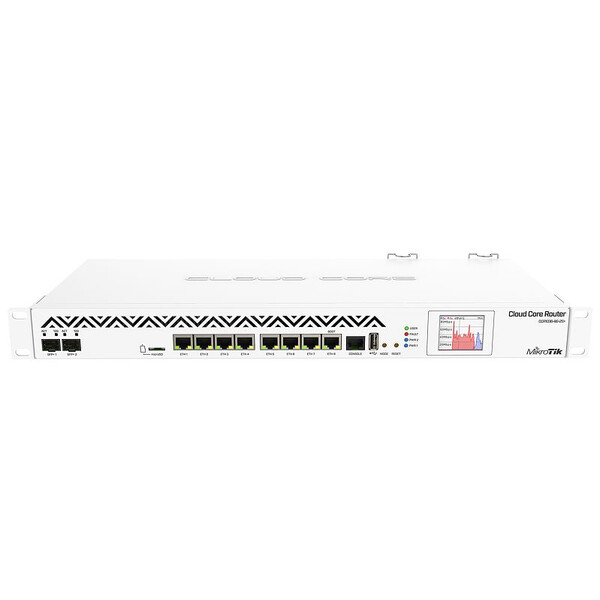

The device comes in a 1U rackmount case, has two SFP+ ports, eight Gigabit ethernet ports, a serial console cable and a USB port.

The CCR1036-8G-2S+ has two SODIMM slots, by default it is shipped with 4GB of RAM, but has no memory limit in RouterOS (will accept and utilize 16GB or more).
Also available now, the EM model with 16GB of RAM!

Supports both SFP (1.25G) and SFP+ (10G) modules

Features:

  • CPU: TLR4-03680CH-12CE-A3c 1.2 GHz per core/ 16GB RAM
  • Color touchscreen LCD
  • Ports directly connected to CPU
  • Mikrotik RouterOS license level 6
  • Storage memory 1GB
  • speed controlled fan

Packege contents:

  • Mikrotik CCR1036-8G-2S+EM router
  • IEC cord

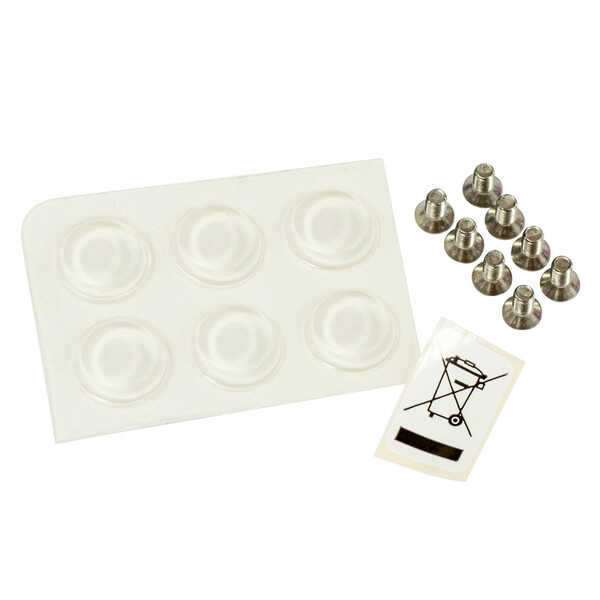

  • USB OTG cableScrew and feet kit (K10)

Availability:
No stock
Brand:
MIKROTIK
Warranty:
12 месеца ( юридически лица ) / 24 месеца ( физически лица )

Мрежови продукти - Суичова

EAN:
8592457063186
Ethernet портове:
  • 28 Gbps
Processor:
  • Tilera Tile-Gx36 (36-cores, 1.2Ghz per core)
System Memory:
  • 16 GB
Вид на монтаж:
  • Rackmount
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • 41.5 mpps fastpath forwarding
  • 8 mpps standart forwarding
Захранване:
  • 110 - 240VAC
Интерфейс:
  • (8) 10/100/1000 Ethernet Ports
  • 1 Console Port
  • 2 SFP+ ports
  • microSD card slot
  • microUSB type AB
Мрежови характеристики:
  • MDI/MDI-X switch
Охлаждане:
  • Пасивно
Предаване на данни:
  • up to 28 Gbit/s
Приложение:
  • Rackmount
Работна влажност:
  • 5%~90% без кондензация
Работна температура:
  • -20C~+60C
Размери височина:
55 mm
Размери дълбочина:
145 mm
Размери ширина:
355 mm
Сертификати:
  • CE
Софтуерни функции:
  • RouterOS License level 6
Съвместимост с мрежови стандарти:
  • AES-128-CBC + SHA1
Тип:
  • Cloud Core Router

Мрежови продукти

Lan ports:
  • 10/100/1000 Base
Specific:
  • SFP+
  • RouterOS
  • Touch LCD

Брошура (CCR1036-8G-2Splus-131030144853.pdf, 1,016 Kb) [Download]

Декларация за съответствие CE (ID044_CCR1036-8G-2Splus_DOC_181050.pdf, 108 Kb) [Download]
