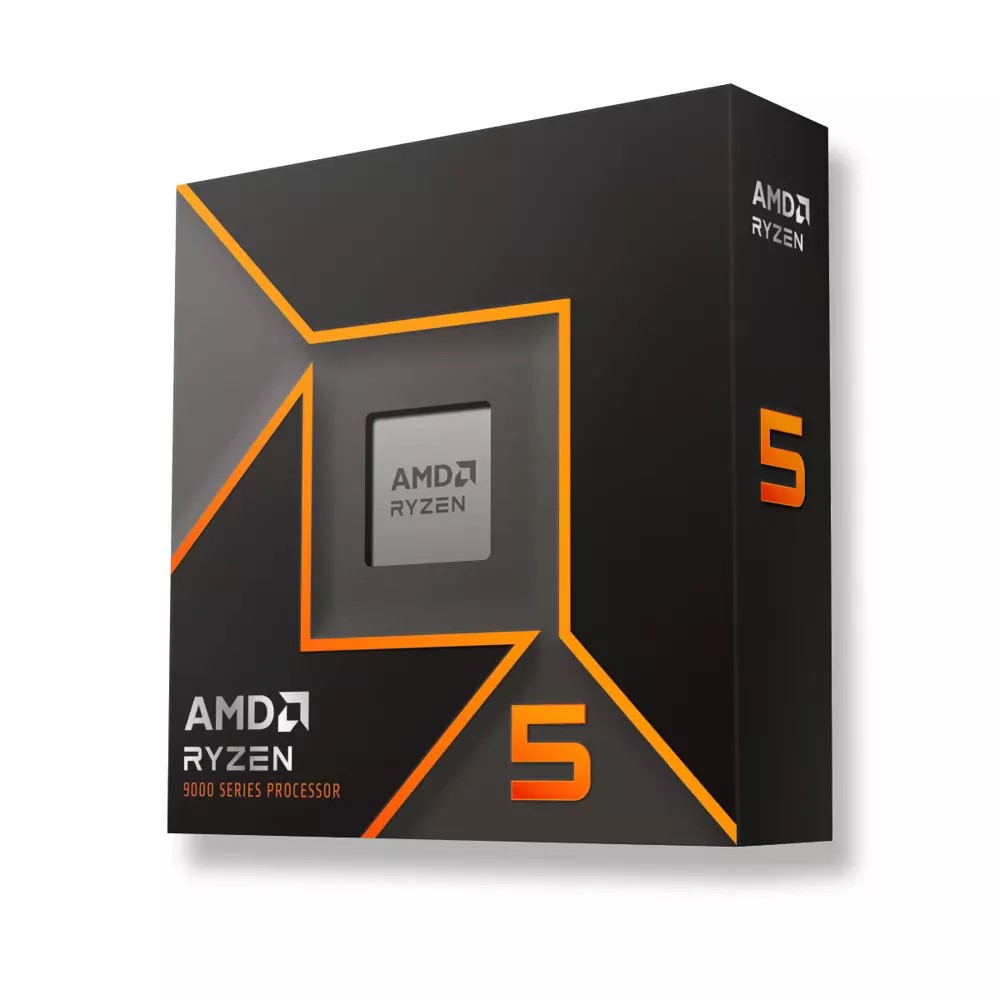

AMD CPU Desktop Ryzen 5 6/12T 9600X

AMD Ryzen™ 5 9600X
100-100001405WOF

Family
Ryzen

Series
Ryzen 9000 Series

Form Factor
Desktops , Boxed Processor

Market Segment
Enthusiast Desktop

Consumer Use
Yes

Regional Availability
Global

Former Codename
Granite Ridge AM5

Architecture
Zen 5

# of CPU Cores
6

Multithreading (SMT)
Yes

# of Threads
12

Max. Boost Clock
Up to 5.4 GHz

Base Clock
3.9 GHz

L1 Cache
480 KB

L2 Cache
6 MB

L3 Cache
32 MB

Default TDP
65W

Processor Technology for CPU Cores
TSMC 4nm FinFET

Processor Technology for I/O Die
TSMC 6nm FinFET

Package Die Count
2

Unlocked for Overclocking
Yes

AMD EXPO™ Memory Overclocking Technology
Yes

Precision Boost Overdrive
Yes

Curve Optimizer Voltage Offsets
Yes

AMD Ryzen™ Master Support
Yes

CPU Socket
AM5

Supporting Chipsets
A620 , X670E , X670 , B650E , B650 , X870E , X870

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64


Recommended Cooler
Premium air cooler recommended for optimal performance

Max. Operating Temperature (Tjmax)
95°C

Launch Date
08/08/2024

*OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

PCI Express® Version
PCIe® 5.0

Native PCIe® Lanes (Total/Usable)
28 , 24

Additional Usable PCIe Lanes from Motherboard

X870E
8x Gen4

X870
4x Gen4

X670E
12x Gen4

X670
12x Gen4

B650E
8x Gen4

B650
8x Gen4

NVMe Support
Boot , RAID0 , RAID1 , RAID5 , RAID10

System Memory Type
DDR5

Memory Channels
2

Max. Memory
192 GB

System Memory Subtype
UDIMM

Max Memory Speed
2x1R

DDR5-5600
2x2R

DDR5-5600
4x1R

DDR5-3600
4x2R

DDR5-3600

ECC Support
Yes (Requires mobo support)

Graphics Model
AMD Radeon™ Graphics

Graphics Core Count
2

Graphics Frequency
2200 MHz

USB Type-C® DisplayPort™ Alternate Mode
Yes
