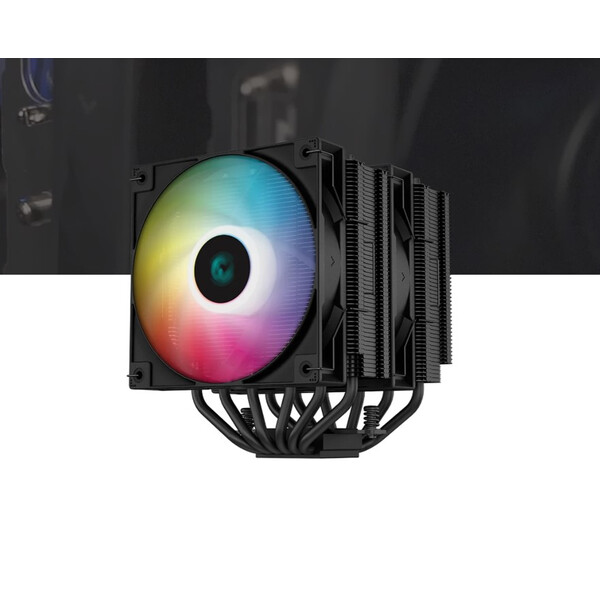

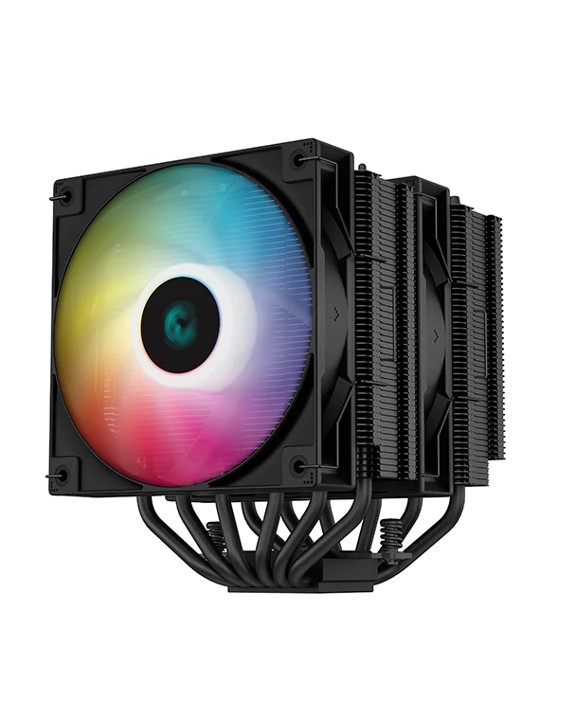

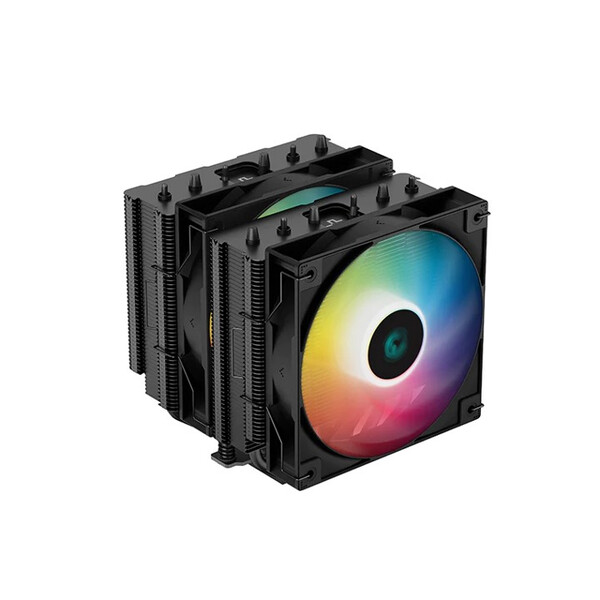

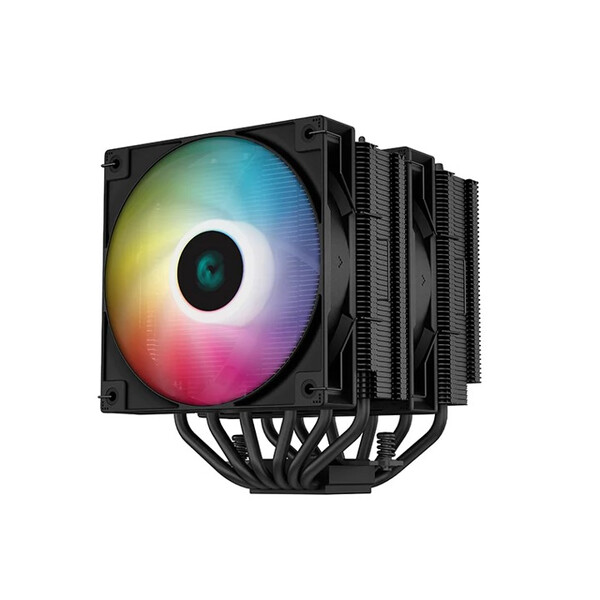

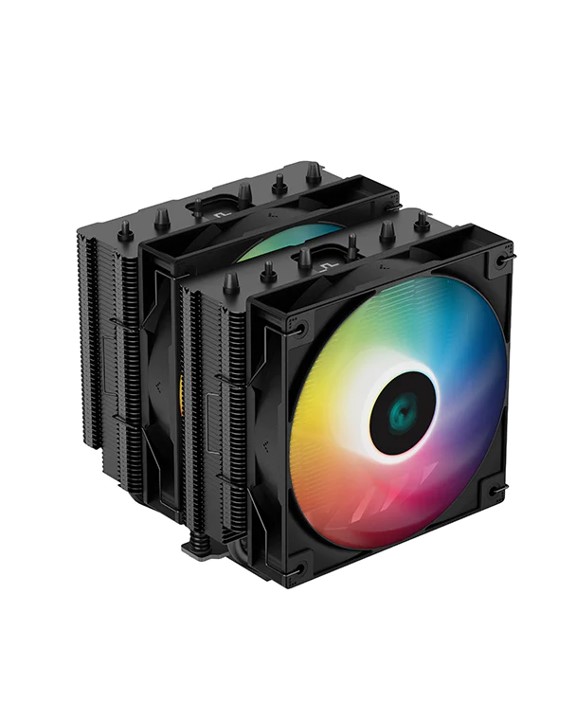

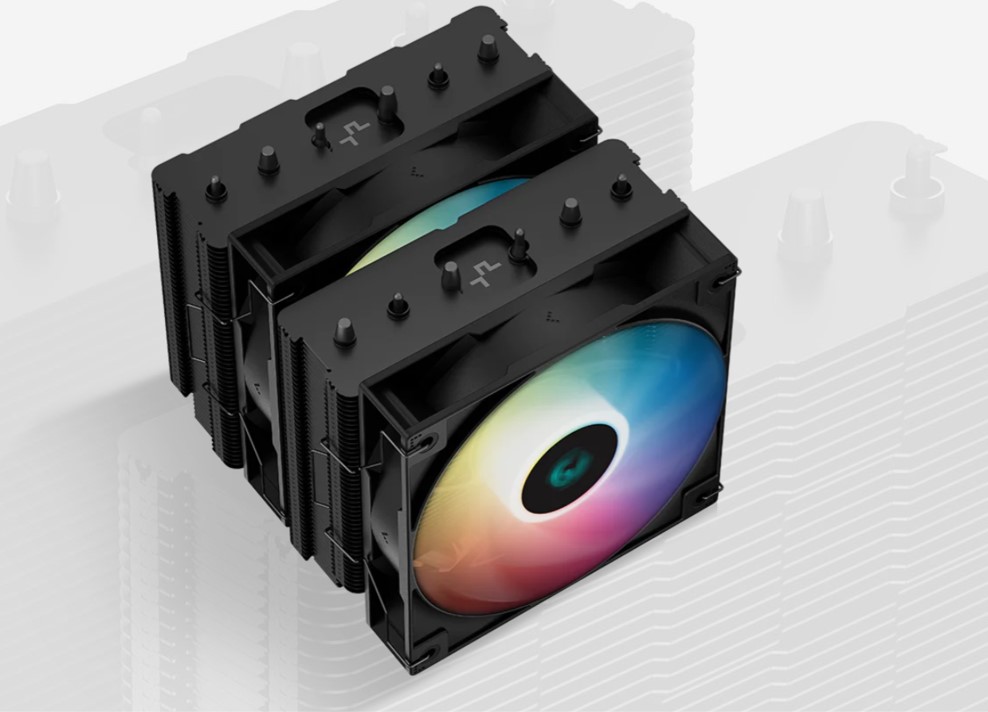

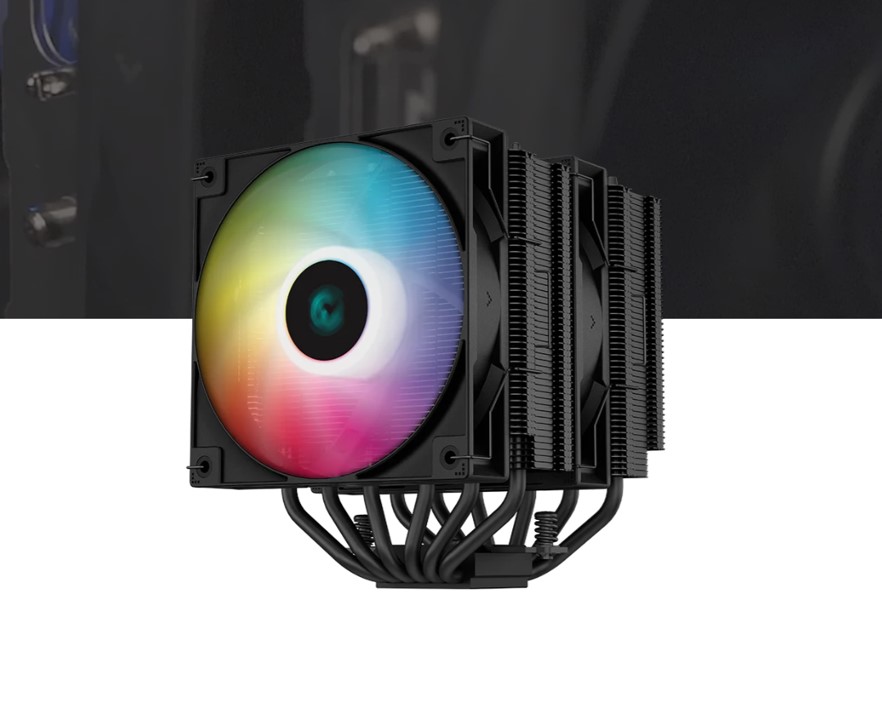

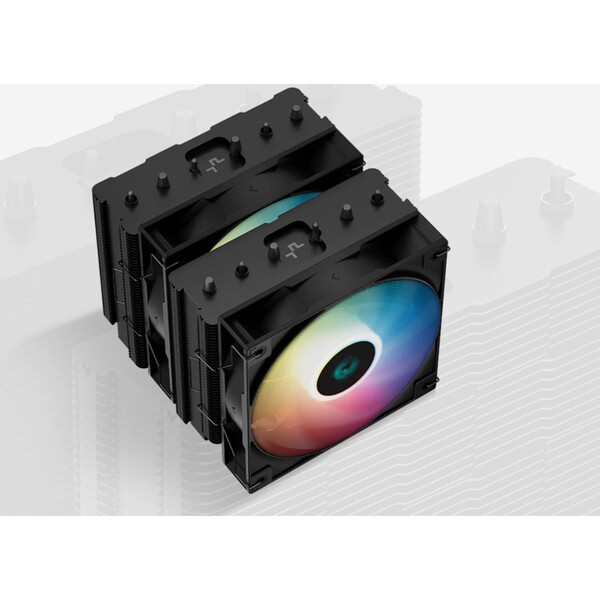

Cooler for Intel/AMD CPUs DeepCool AG620 ARGB R-AG620-BKANMN-G-2 - black
Technical Spec
Application For: Intel: LGA2066/2011-v3/2011/1700/1200/1151/1150/1155; AMD: AM4/AM5 processorsProduct Dimensions: 129×136×157 mm(L×W×H)
Heatsink Dimensions: 127×110×157 mm(L×W×H)
Net Weight: 1300 g

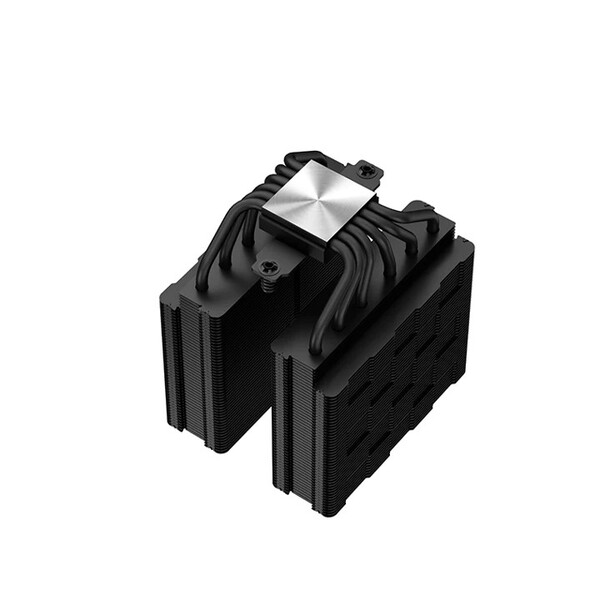

Heatpipe: Ø6 mm×6 pcs
Fan Dimensions: 120×120×25 mm(L×W×H)
Fan Speed: 300~1850 RPM±10%
Fan Airflow: 67.88 CFM
Fan Air Pressure: 2.04 mmAq
Fan Noise: ≤29.4 dB(A)
Fan Connector: 4-pin PWM
Bearing Type: Hydro Bearing
Fan Rated Voltage: 12 VDC
Fan Rated Current: 0.14 A
Fan Power Consumption: 1.68 W
LED Type: Addressable RGB LED
LED Connector: 3-pin(+5V-D-G)
LED Rated Voltage: 5 VDC
LED Power Consumption: 1.05 W
SUBSTANTIAL COOLING POWER
Keep things cool with up to 260W of heat dissipation power to ensure your system is performing at its peak without a sweat.

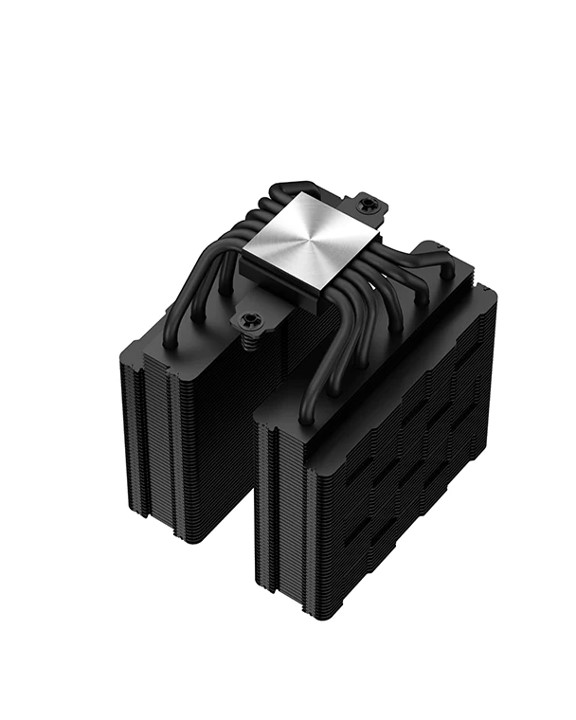

BALANCED BIDIRECTIONAL HEAT PIPE TECHNOLOGY
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

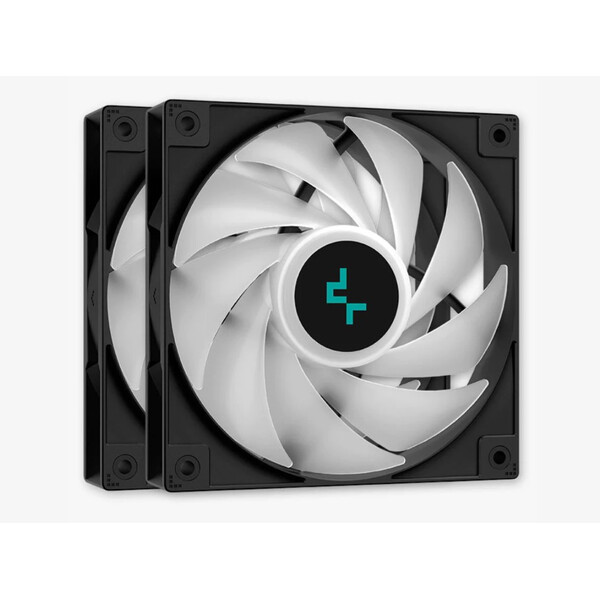

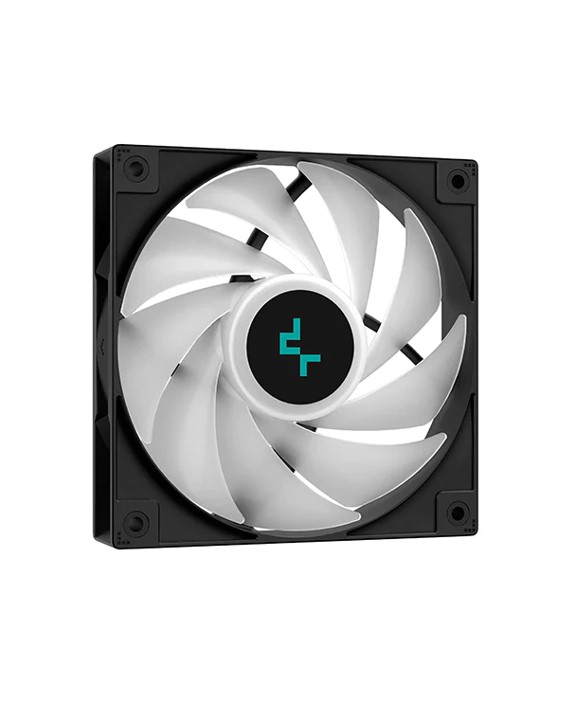

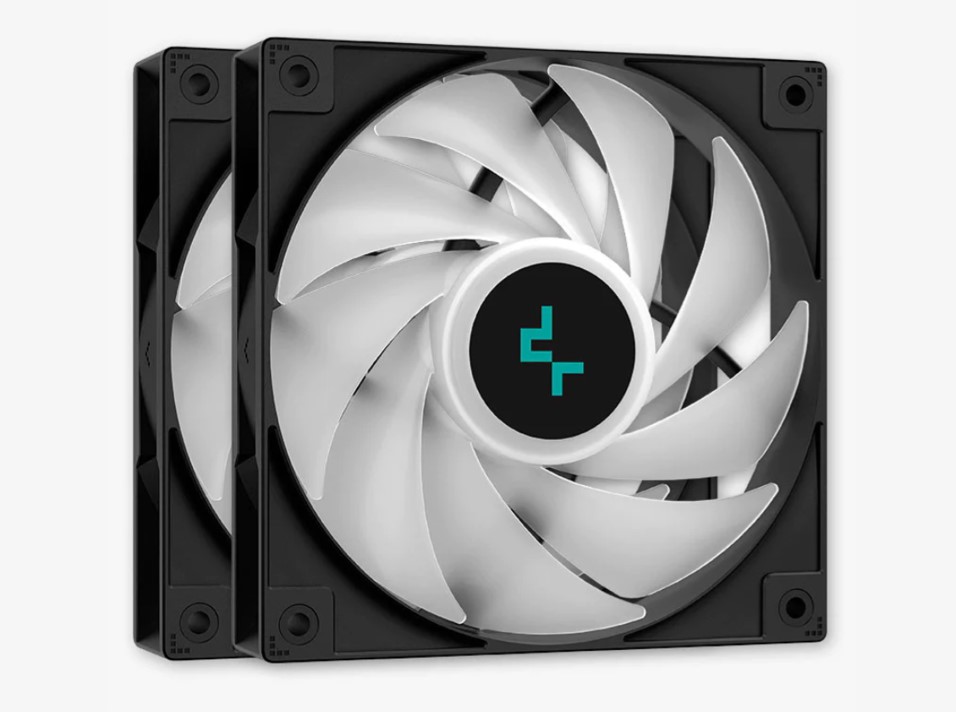

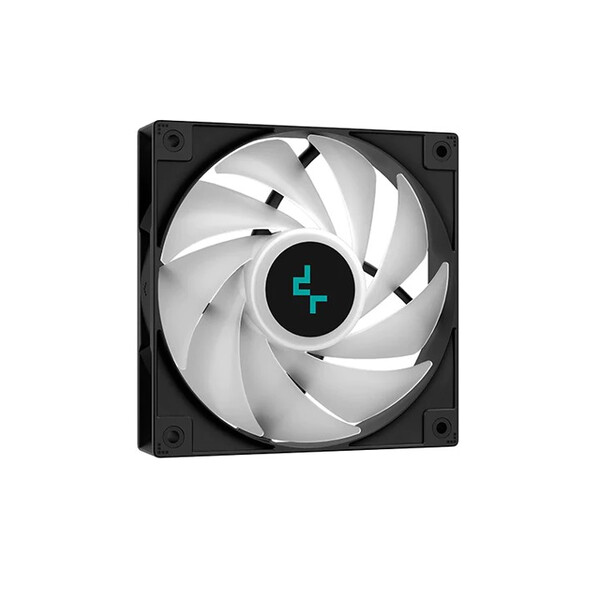

HIGH EFFICIENCY FANS
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
300-1850 RPM
≤29.4 dB(A)
67.88 CFM

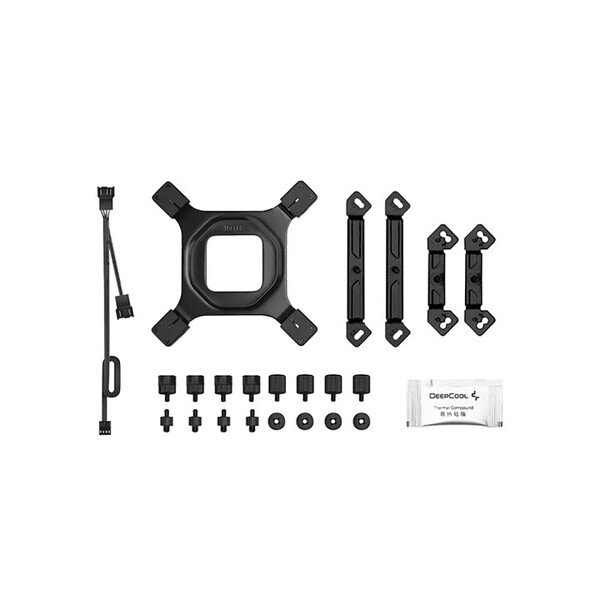

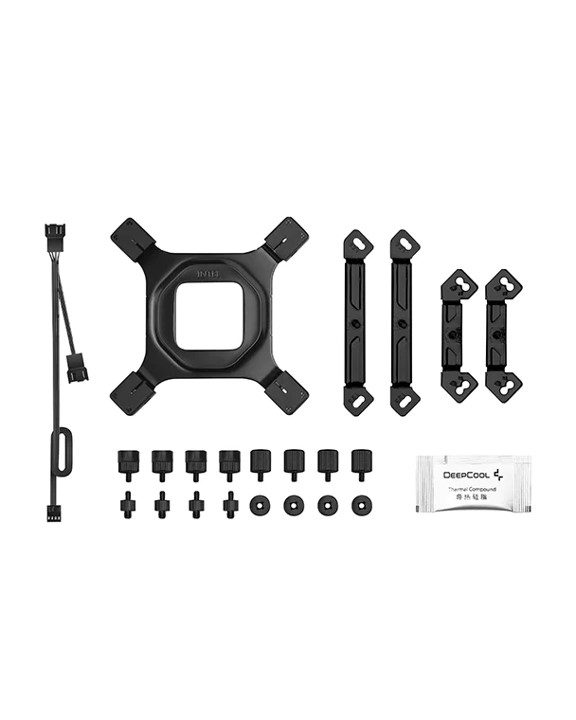

SIMPLE AND SECURE
The included all-metal mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure.
