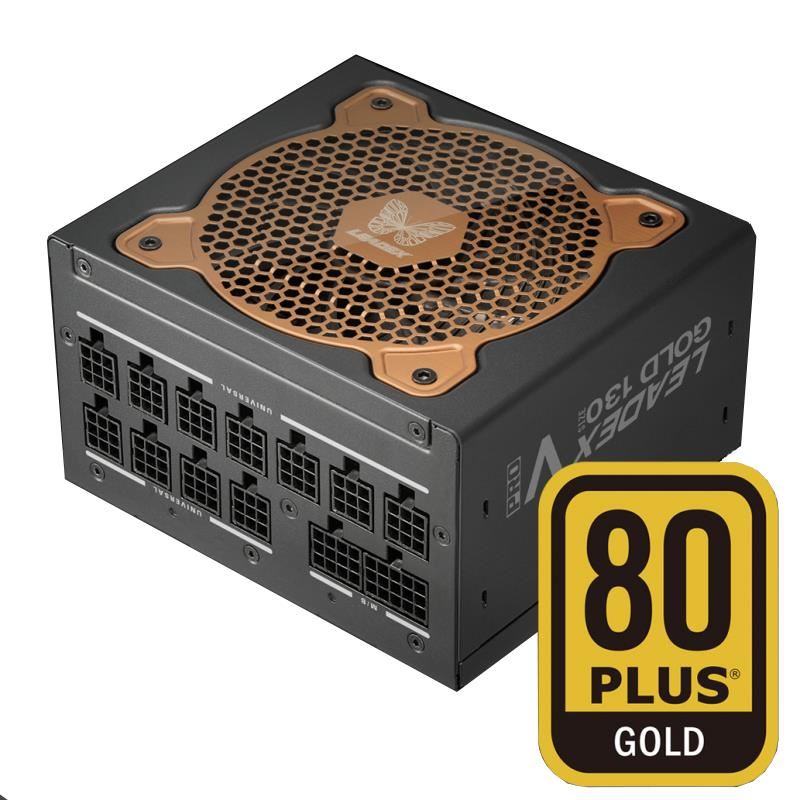

Super Flower SF-750F14TG-V2 Leadex V Gold PRO 750W PSU
LEADEX V Platinum PRO series PSU is 80PLUS Platinum certified with 100% fully modular cable design. Smallest 1000W ATX power supply in the market with a length of 130mm. Patented 9-Pin Super Connector which allows CPU / PCI-E / SATA and Molex cables to plug into any of the universal sockets. Ultra-flexible flat ribbon cables which maximize PSU best cable routing solution. 12cm FDB fan provides accurate RPM thus minimizing the noise (dBA).
♦ Exclusive Patent Transformer With Innovative Engineering Technology Which Offers Superb Output Performance.
♦ Synchronous Rectifier Microminiaturization (SRM)
Revolutionary Technology By Microminiaturize The Traditional 12V Synchronous Rectifier Into One Small Card Onto The Transformer.
♦ Innovative technology patents that combine transformers with proprietary SRM technology improve performance and minimize dimensions.

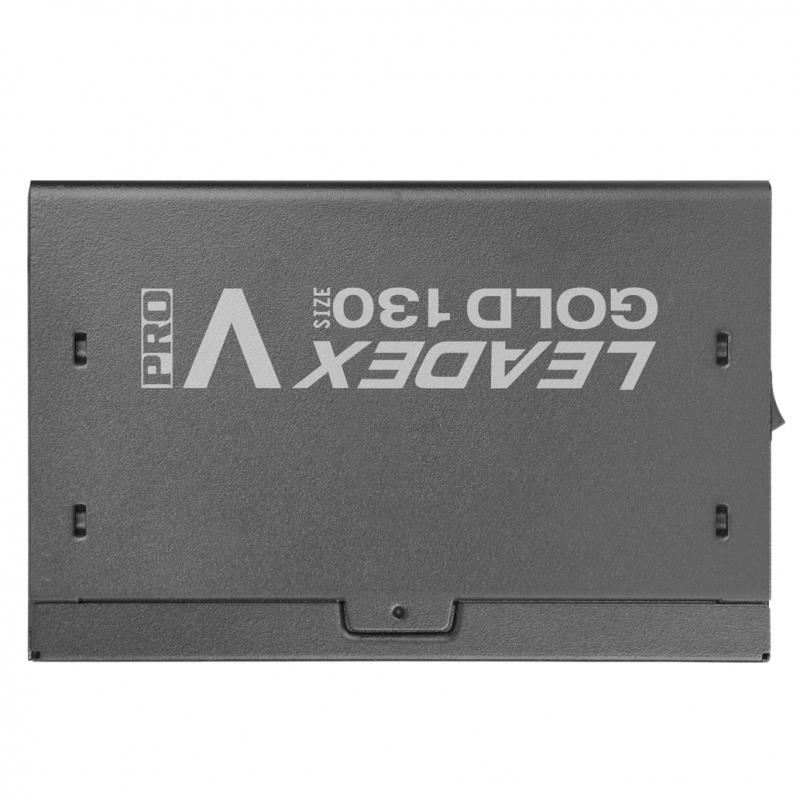

♦ Shorten its size to 130mm with no reduced performance.
1000W size 180mm==>130mm
750W / 850W size 165mm==>130mm
♦ Intelligent Recognition Dual Over Power Protection.

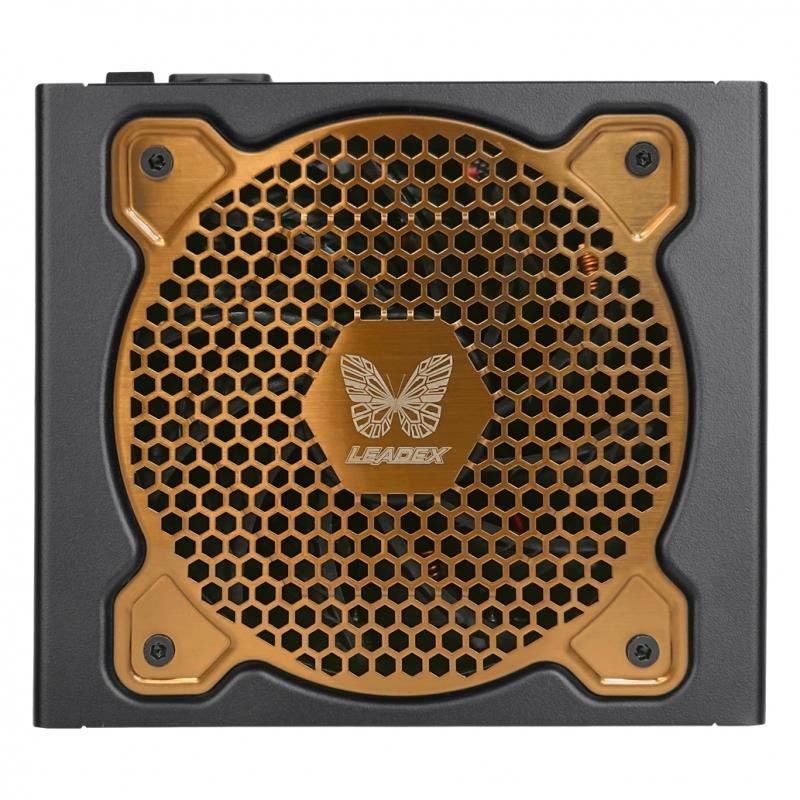

♦ 120mm F.D.B PWM Fan:Unique 11-blade design for high airflow and more stable cooling system, & PWM function provides accurate RPM thus minimizing the noise (dBA).

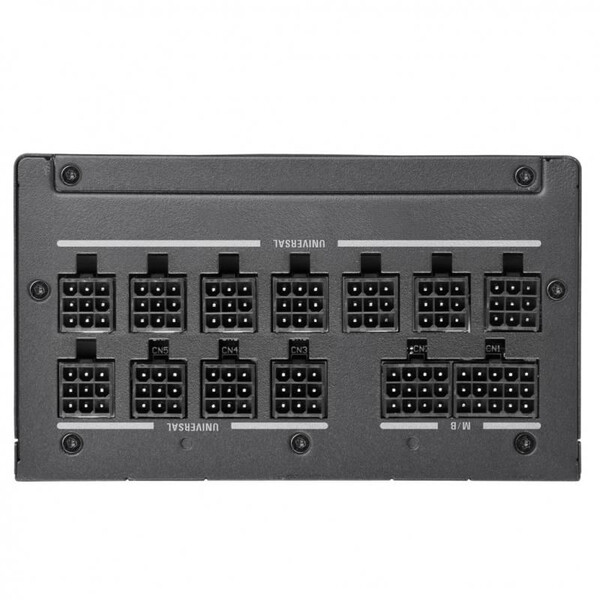

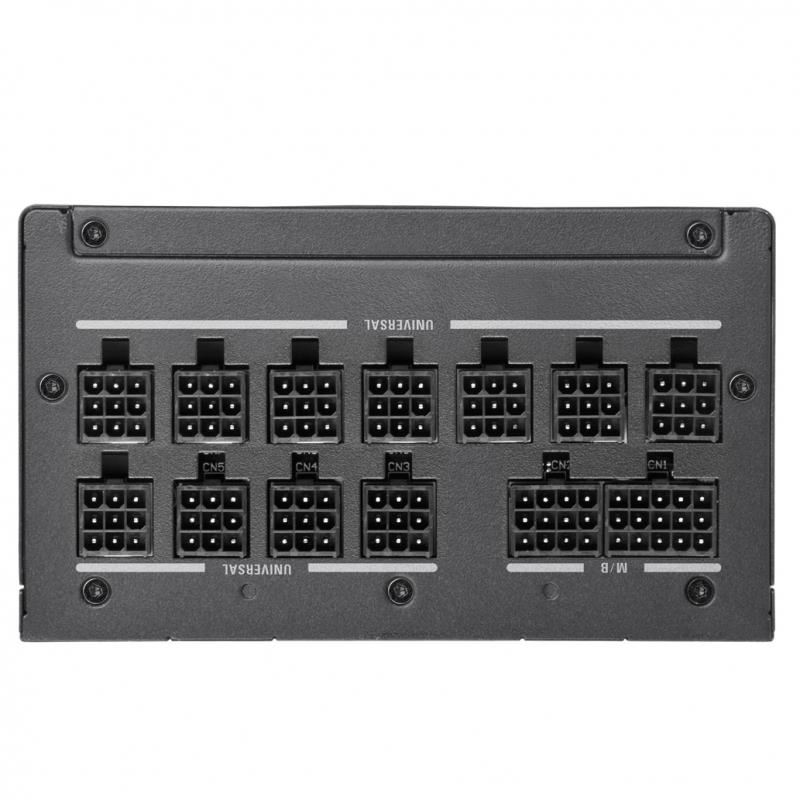

♦ New patented Universal SUPER CONNECTOR(Patent No.: Taiwan D196948 D196949 ; China CN304998083S,USA, Germany & Japan Patents Pending) Universal Super Connectors with patent allows you to plug CPU, PCI-E and peripherals freely in any of the 9pin socket provided.
♦ New patented technology of Buckle (20+4) Pin connector.
(Patent No.: Taiwan M563575 ; China 7566010,USA, Germany & Japan Patents Pending)
♦ Innovative Design for gaming System & PSU protection.
1. DC output +12V/ +5V/ +3.3V remain stable.
2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V.
3. +12V Output With Exceptional Low Ripple Measurements.
4. Dual Over Power Protection.
♦ ECO-design

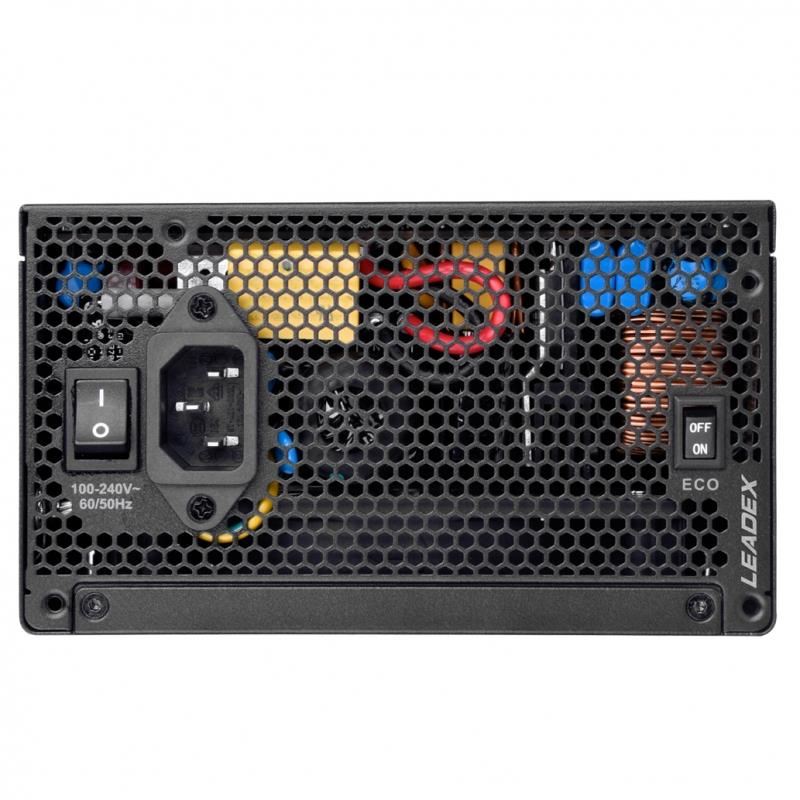

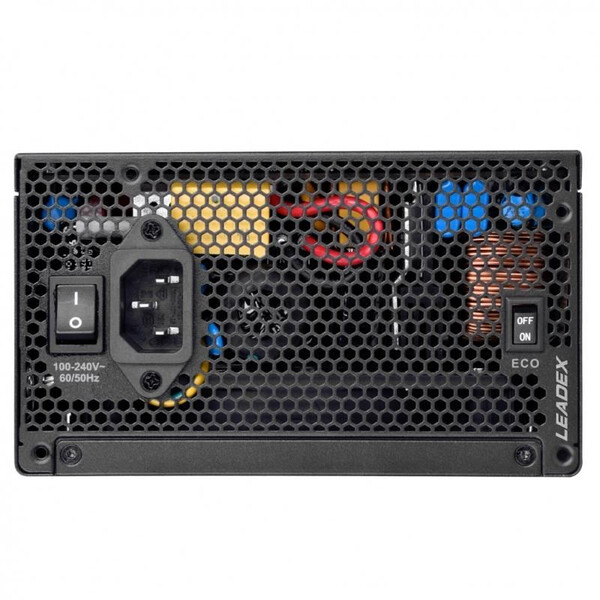

1. Auto & ECO Fan control
2. High efficiency on all rails, including 5VSB

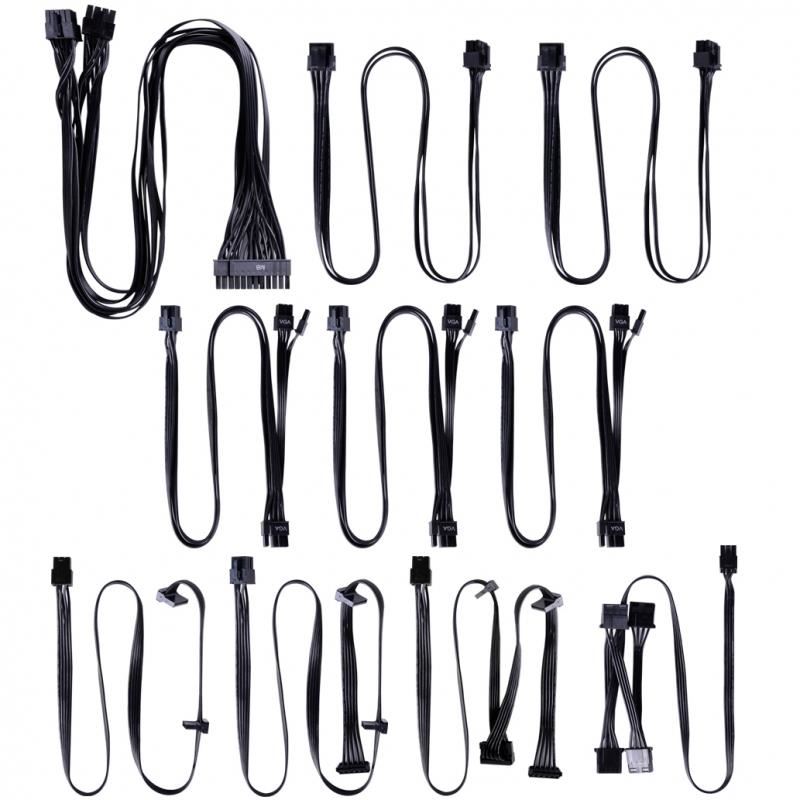

♦ Full modular design with all ribbon cables to maximize flexibility.
♦ 80 PLUS® Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load.
♦ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel).

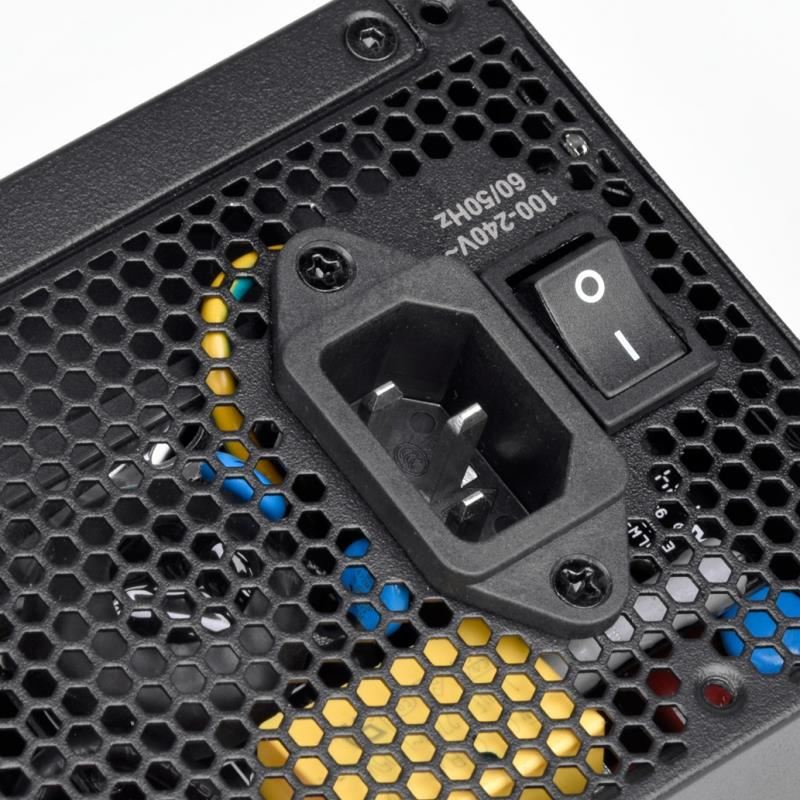

♦ Full Range Auto Voltage Detection Design 100V~240V (Active PFC).
♦ Comply With ATX 12V v2.52 & EPS 12V. v2.92 Specification.
♦ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation.
♦ Over Voltage Protection / Over Current Protection / Dual Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection.
♦ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards(Haswell ready).
♦ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card.
♦ More than 2,000 times On/Off test.
♦ Lead-free Green Materials with RoHS / WEEE Compliance.
♦ Perfect For Professional & High Performance Gaming System.
Form factor: ATX
Power source: 750W
Fan size: 120 mm
modulation: Yes
Recommended gamingvYes
PFC Active
Certification: 80+ Gold
Efficiency: 90%
ATX/EPS 12V: 2x 4+4 pin
6+2pin PCI-E: 6
SATA: 9
Molex: 4
Rail: Single Rail

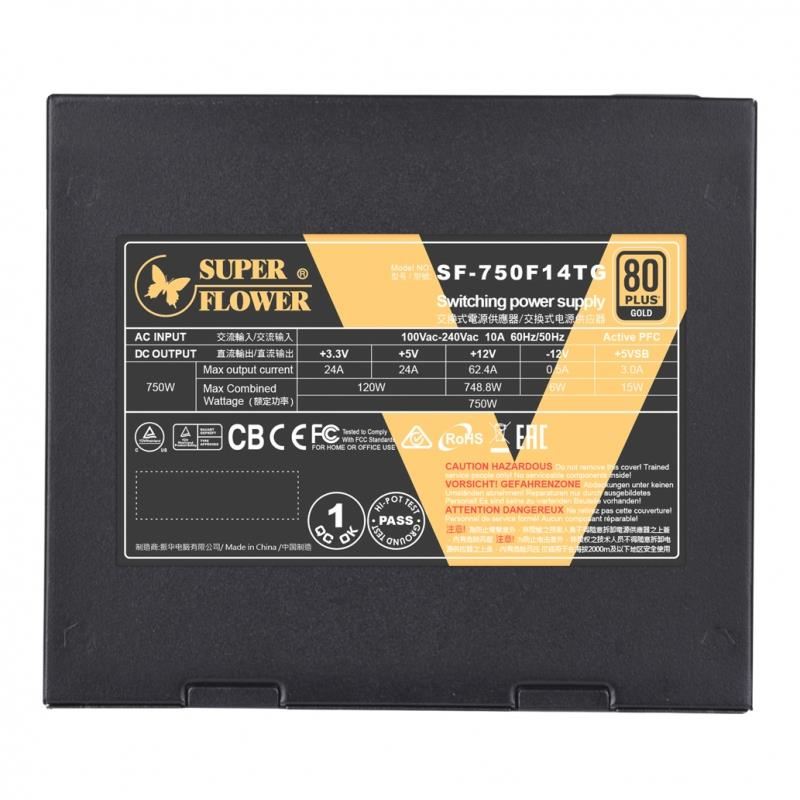

Amperage 12v (A): 64.2 AA
Source length: 150 mm
light: Not
