Micromodule Smart 2x digital inputs and 2x outputs 12 ... 24Vac / dc Shelly Uni
Smart Wi-Fi-operated module
With this tiny insulated chip, you can control sensors and measure data to trigger actions.
- Suitable for low-voltage AC and DC applications (12V - 24V AC and 12V-36V DC)
- Easy control through the Shelly app, as well as various protocols, platforms, and voice assistants.
- Has an embedded web server and connects to your Wi-Fi network
Tiny with a sensor interface

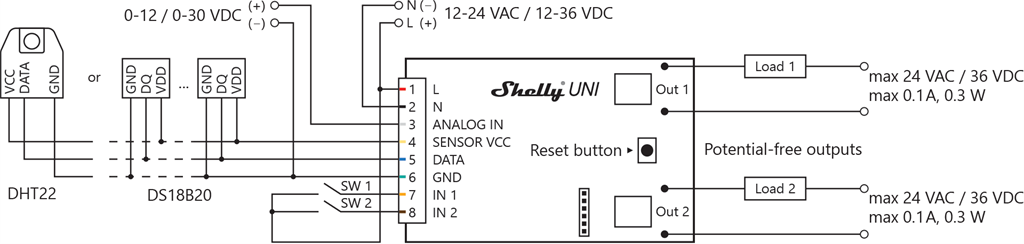

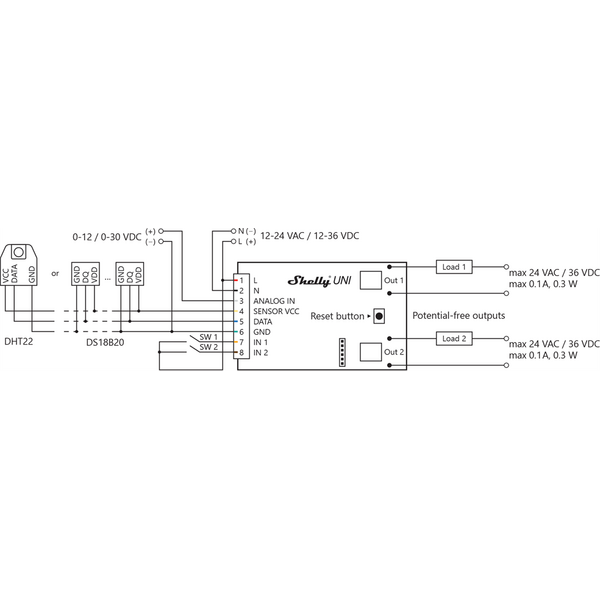

Shelly UNI's dual range enables you to connect any analog sensor and measure it, allowing you to complete highly sophisticated and powerful scenes. Additionally, Shelly UNI can be connected to 3 programmable resolution digital thermometers DS18B20 or a single temperature and humidity digital sensor DHT22. Precisely measure temperature and humidity in your facility and take appropriate action using scenes with other Shelly devices.
Convert anything to smart

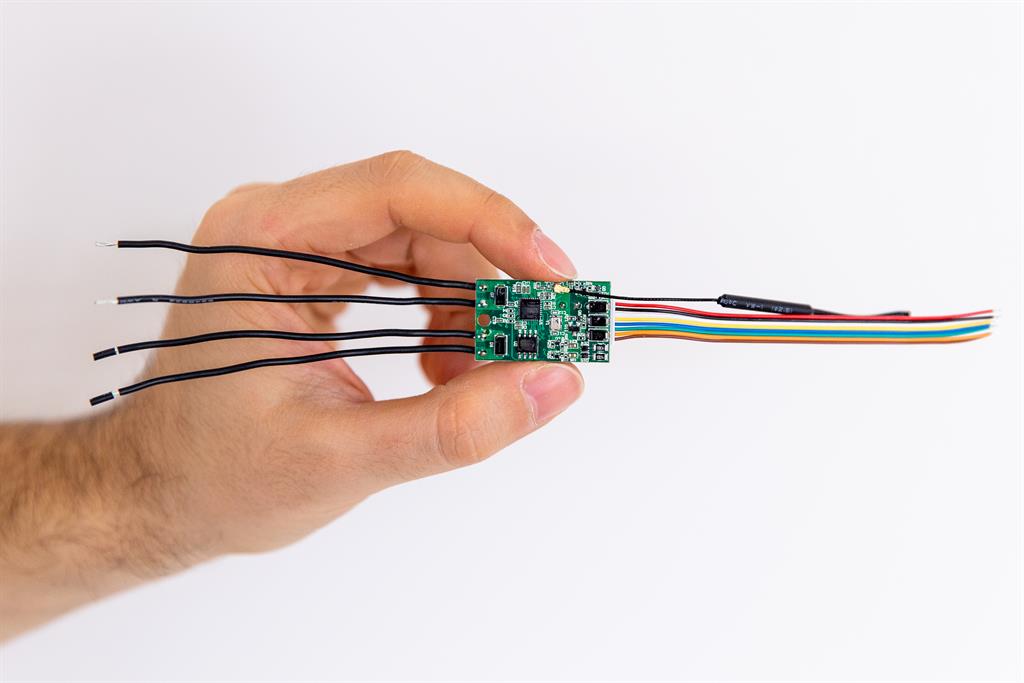

Fit the tiny Shelly UNI relay anywhere you desire! It's suitable for low-voltage applications and can monitor various types of sensors, keeping you fully informed of your facility's condition. Even though there is no plastic box surrounding it, the transparent cover over the chip insulates and protects it from any possible dangers to the device or your home appliances.
Functionalities
Wi-Fi Operated
Connect Shelly Uni to your Wi-Fi network. No HUB required!
Digital inputs
Can support differing voltages and work separately
from 2.2-36VDC and 12-24VAC
Potential-free outputs
Two potential-free outputs that can
switch up to 36VAC and 24VDC
Wide range of voltage support
Shelly UNI can be powered with
12V-36VDC and 12V-24VAC
Smart schedules
Set custom schedules based on your daily agenda or
follow the sunrise/sunset automatically
Smart scenes
Set custom scenes by combining Shelly UNI
with your other Shelly devices.
Endless use applications
Door lock control
Never again worry if you locked the front door before you leave. With Shelly UNI you can manage your door lock remotely! That way you will not have to rush home if your children are back from school before you've finished work, or if you've forgotten your keys inside while going out to run a quick errand. With just a press of a button, Shelly UNI eliminates the need for your keys.
Never miss the doorbell again
Don't worry if you are doing some gardening in the backyard and you don't hear the doorbell. Shelly UNI will ensure that you receive a notification on your smartphone when the doorbell rings - and allow you to open the door using the app or your voice. That way you will not miss the delivery person ever again!
Never miss the doorbell Shelly UNI
Adventure friendly
Shelly Uni works on 12 to 36 VDC, making it perfect for the automation of your camper and its appliances! Use the analog input to measure your camper batteries and receive an instant notification to your phone if they're running low. Together with other Shelly devices, you can turn off connected appliances to take further action and save power. Additionally, you can use its binary inputs to detect if a door has been opened and be alerted of a potential break-in while you're away.
Full compatibility
Shelly devices are compatible with Alexa, Google Home, Android and iOS. Together with the voice assistant, you can command Shelly devices using just your voice!
Shelly Smart Control is here!
One app to control your spaces, energy consumption, and expenses.
Specifications
POWER
Power supply AC 12V – 24V
Power supply DC 12V – 36V
SPECIAL FUNCTIONS
Inputs 2 Separated digital inputs from 2.2-36V DC and 12-24V AC
Outputs 2 Potential free outputs up to 24VAC and 36VDC, max 100 mA, 300mW each
Overload protection No
Power measurement 1 ADC – dual ranges from 0-12V and 0-30V
FEATURES
Channels 2 Channels
Operational temperature 0 to + 40 °C
Device power consumption < 1 W
Intelligent On/Off Yes
Sunrise/Sunset Yes
Weekly Schedule Yes
UL Listed option No
CONNECTIVITY
Wireless/WiFi Protocol 802.11 b/g/n
Radiofrequency 2400 – 2500 MHz
Range up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
DIMENSIONS
Size 20mm x 33mm x 13mm
