Mikrotik Cloud Core Router CCR1016-12S-1S+

CCR1016-12S-1S+_VZ
Out of stock
full product features
Price
1 846,46 BGN
Add to wishlist Comparison list

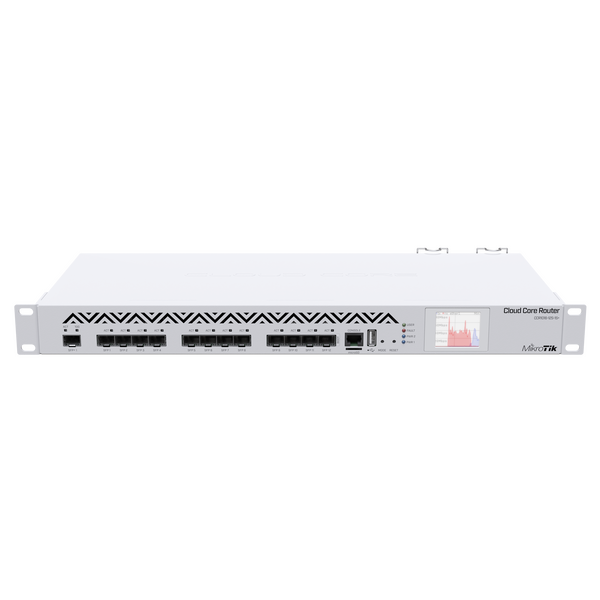

Mikrotik Cloud Core Router CCR1016-12S-1S+

CCR1016 is an industrial grade router with a cutting edge 16 core Tilera CPU. If you need many millions of packets per second - Cloud Core Router is your best choice.
This model has twelve SFP ports and one SFP+ port for 10G connectivity. It is available in a 1U rackmount case and also has a serial console port, a touchscreen LCD and a USB port.
The CCR1016-12S-1S+ comes with redundant power supplies and one RJ45 SFP 10/100/1000M copper module.

The CCR1016-12S-1S+ comes with:

  • redundant power supplies
  • RJ45 SFP 10/100/1000M coper module.
  • 12x SFP ports for 1 Gigabit connectivity
  • 1x SFP+ port for 10 Gigabit connectivity
  • 16 core Tilera CPU, 1.2GHz clock per core
  • 12 Mbytes total on-chip cache
  • State of the art TILE GX architecture
  • Ports directly connected to CPU
  • 1U rackmount case
  • Color touchscreen LCD display
  • two power supplies for redundancy
  • Max Power consumption: 44W
  • Tested ambient temperature: -20C ~ +60C
  • microUSB type AB with USB Power Reset option
  • CPU temperature monitor: Yes
  • Current Monitor:Yes
  • PCB temperature monitor: Yes
  • Voltage Monitor: Yes

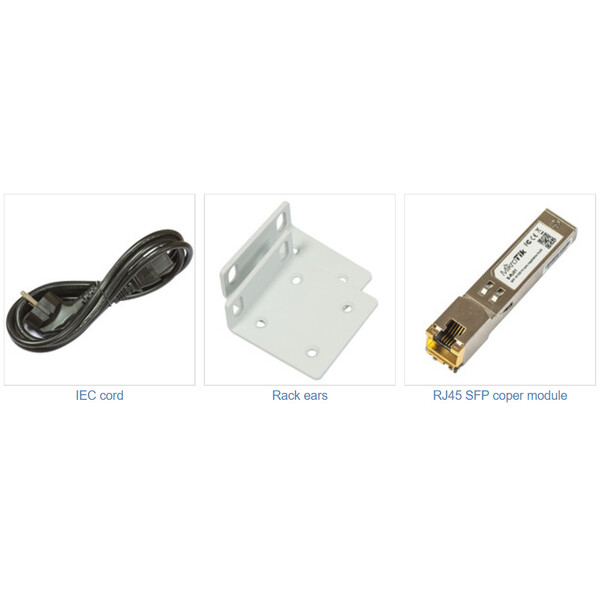

Package contents:

  • CCR1016-12S-1S+ router
  • IEC cord
  • 2x Rack ears
  • RJ45 SFP coper module
Availability:
No stock
Brand:
MIKROTIK
Warranty:
12 месеца ( юридически лица ) / 24 месеца ( физически лица )

Мрежови продукти - Суичова

EAN:
8592457072072
Processor:
  • Tilera Tile-Gx16 CPU
System Memory:
  • 2GB
Вид на монтаж:
  • Rackmount
  • Декстоп
Захранване:
  • 110V - 220V
Интерфейс:
  • 1 USB ports
  • 12 SFP ports
  • 1x SFP+ 10 Gigabit port
  • microUSB type AB
  • SPF+ port
Мрежови характеристики:
  • Auto-Negotiation
  • MDI/MDI-X switch
Охлаждане:
  • Активно
Приложение:
  • Rackmount
Работна влажност:
  • 5%~95% без кондензация
Размери дълбочина:
155 mm
Размери ширина:
290 mm
Сертификати:
  • CE
Софтуерни функции:
  • RouterOS License level 6
Тип:
  • Cloud Core Router
  • Managed

Брошура (CCR1016-12S-1S_plus-140425161749.pdf, 357 Kb) [Download]

Декларация за съответствие (RouterBOARD_CCR1016-12S-1Splus_Declaration_of_Conformity_01_2018-180131145438.pdf, 83 Kb) [Download]

Кратко ръководство за инсталация (1535487967ccr-16S-qg.pdf, 216 Kb) [Download]
