Ubiquiti UniFi Switch Pro-XG-24-PoE (720W) USW-Pro-XG-24-PoE
Product Overview
-
Dimensions: 442 × 480 × 44 mm (17.4 × 18.9 × 1.7")
-
Form Factor: Rack mount (1U)
-
Enclosure Material: SGCC steel
-
Weight: 7.9 kg (without brackets), 8 kg (with brackets)
-
Display: 1.3" touchscreen LCM

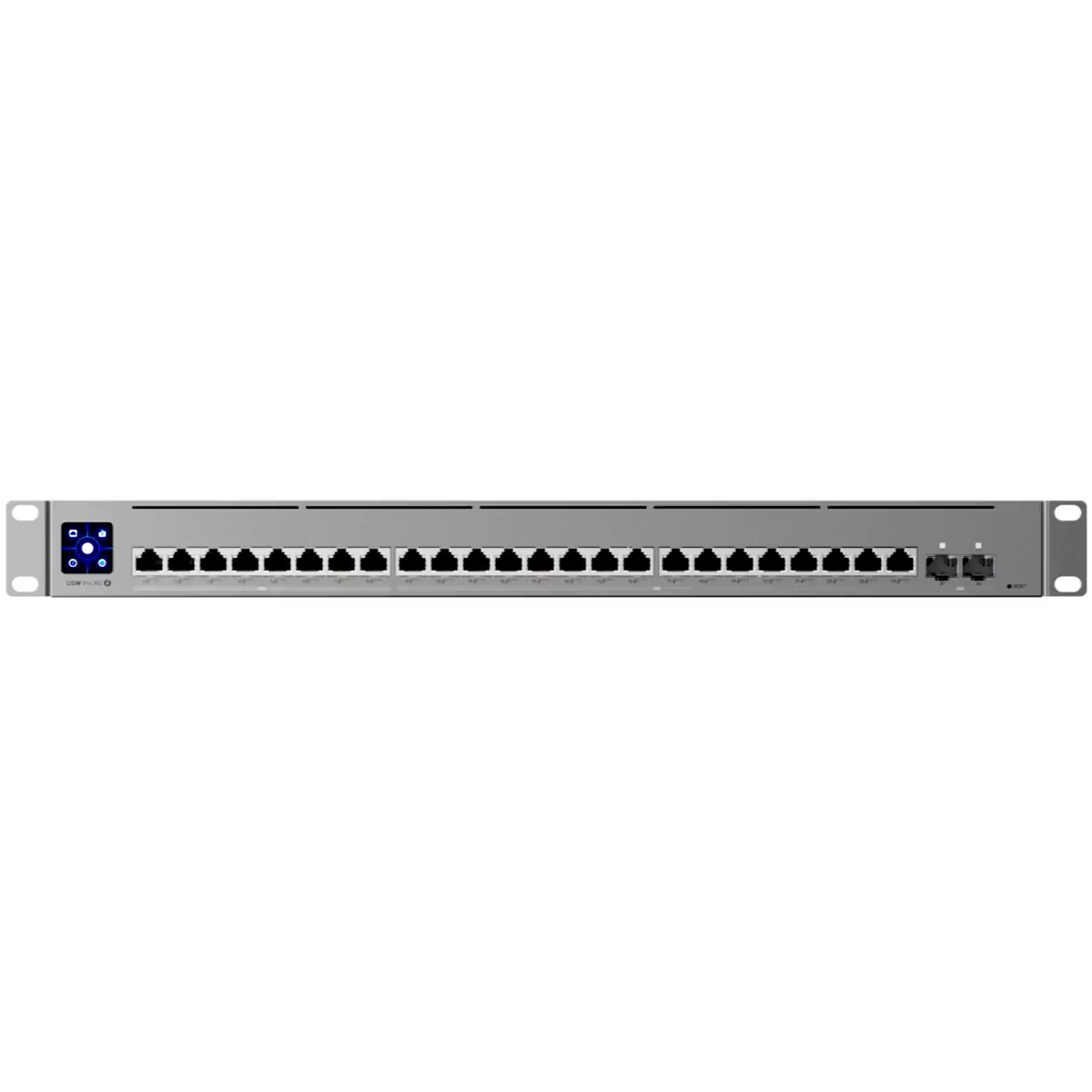

Ports
-
2.5 GbE RJ45: 8 × PoE+++ (2.5G/1G/100M/10M)
-
10 GbE RJ45: 16 × PoE+++ (10G/5G/2.5G/1G/100M)
-
25G SFP28: 2 slots
-
Total PoE Ports: 24 (all PoE+++)
PoE
-
Max PoE Output per Port:
-
PoE: 15.4W
-
PoE+: 30W
-
PoE++: 60W
-
PoE+++: 90W
-
-
Total PoE Availability: 720W
-
Redundancy: DC Power Backup
Performance
-
Switching Capacity: 460 Gbps
-
Non-Blocking Throughput: 230 Gbps
-
Forwarding Rate: 342 Mpps
-
Packet Buffer Size: 8 MB
-
MAC Table: 128,000
-
IPv4 Routes: 256,000
-
ARP Entries: 128,000
-
Supported VLANs: 1,000
-
ACLs: 256 IPv4, 256 MAC
Features
-
Layer 3: DHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
-
Layer 2: LACP, STP/RSTP, QoS (DSCP), Pro AV Profiles (Dante, Q-SYS, NDI, Shure, AES67, Crestron), IGMP Snooping, 802.1X, DHCP Snooping, Port Isolation, Jumbo Frames, LLDP-MED, Voice VLAN, Storm Control, Loop Protection, Port Mirroring, Rate Limiting.

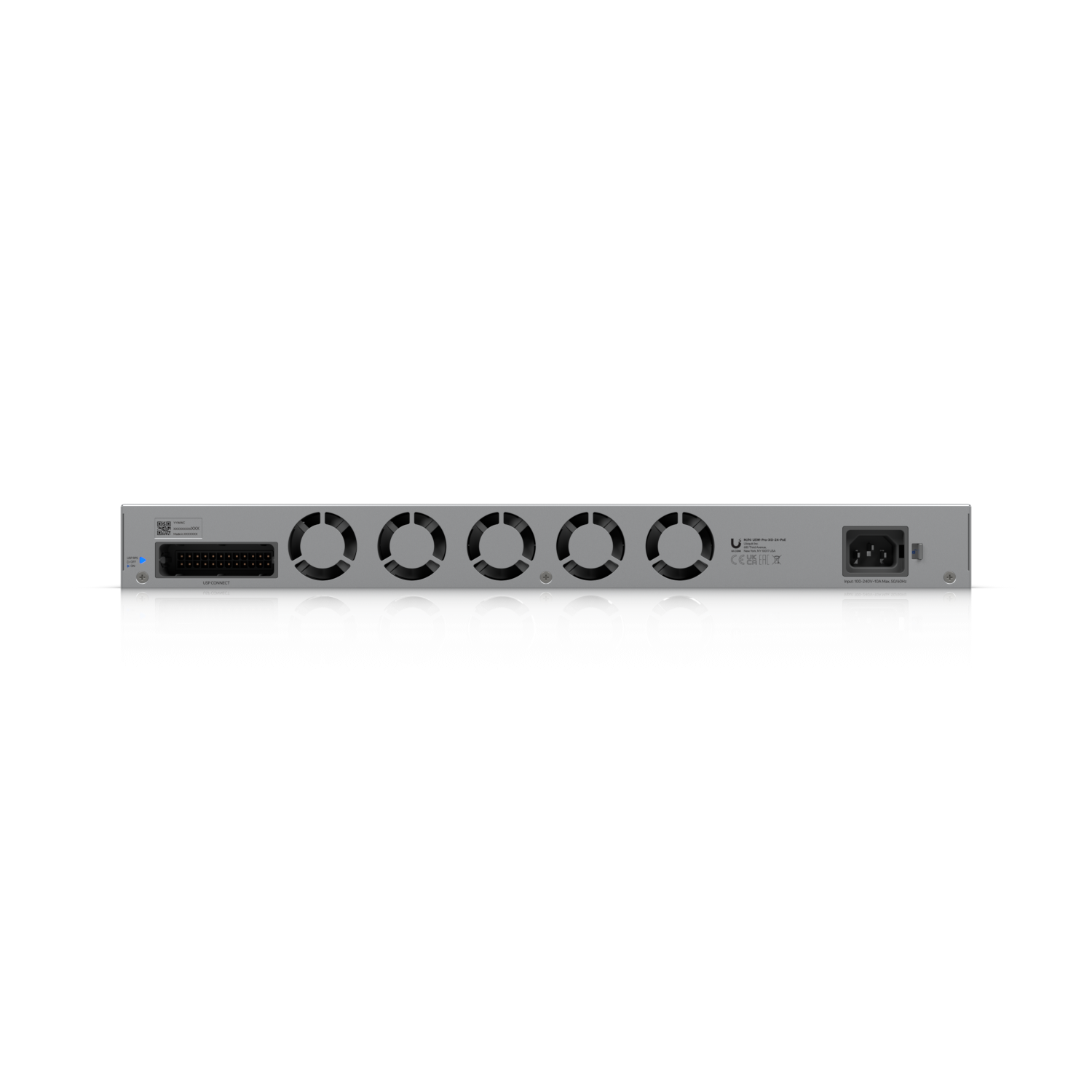

Hardware & Power
-
Max Power Consumption: 150W (without PoE), 870W (with PoE)
-
Power Supply: Internal AC/DC, 870W
-
Power Input: 100–240V AC, 50/60 Hz (with optional USP RPS DC input)
-

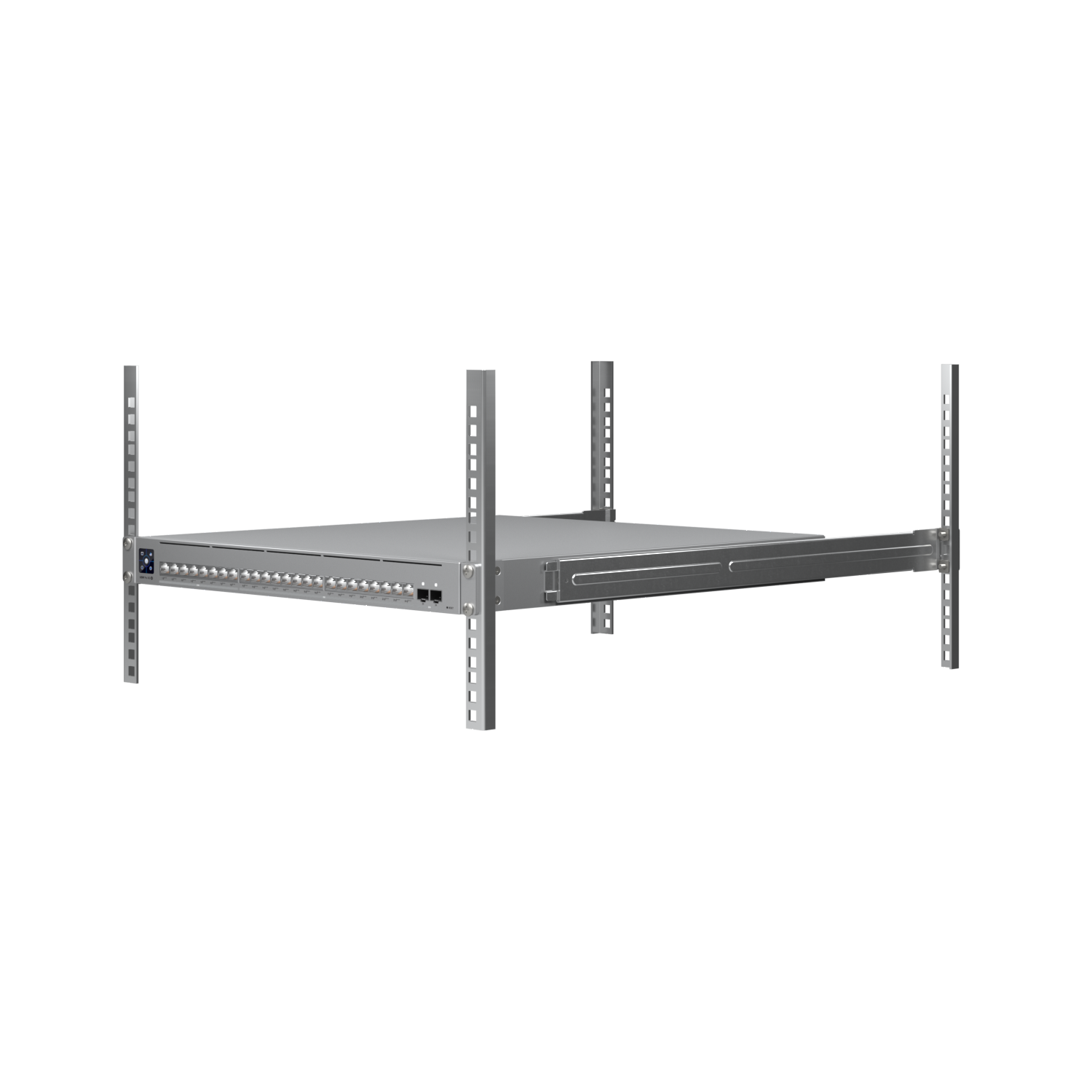

Rack Support: 19" four-post racks, depth 600–1,066 mm
Protection & Compliance
-
ESD Protection: ±30kV air, ±20kV contact
-
Operating Temp: -5 to 40°C (23–104°F)
-
Operating Humidity: 10–90% noncondensing
-

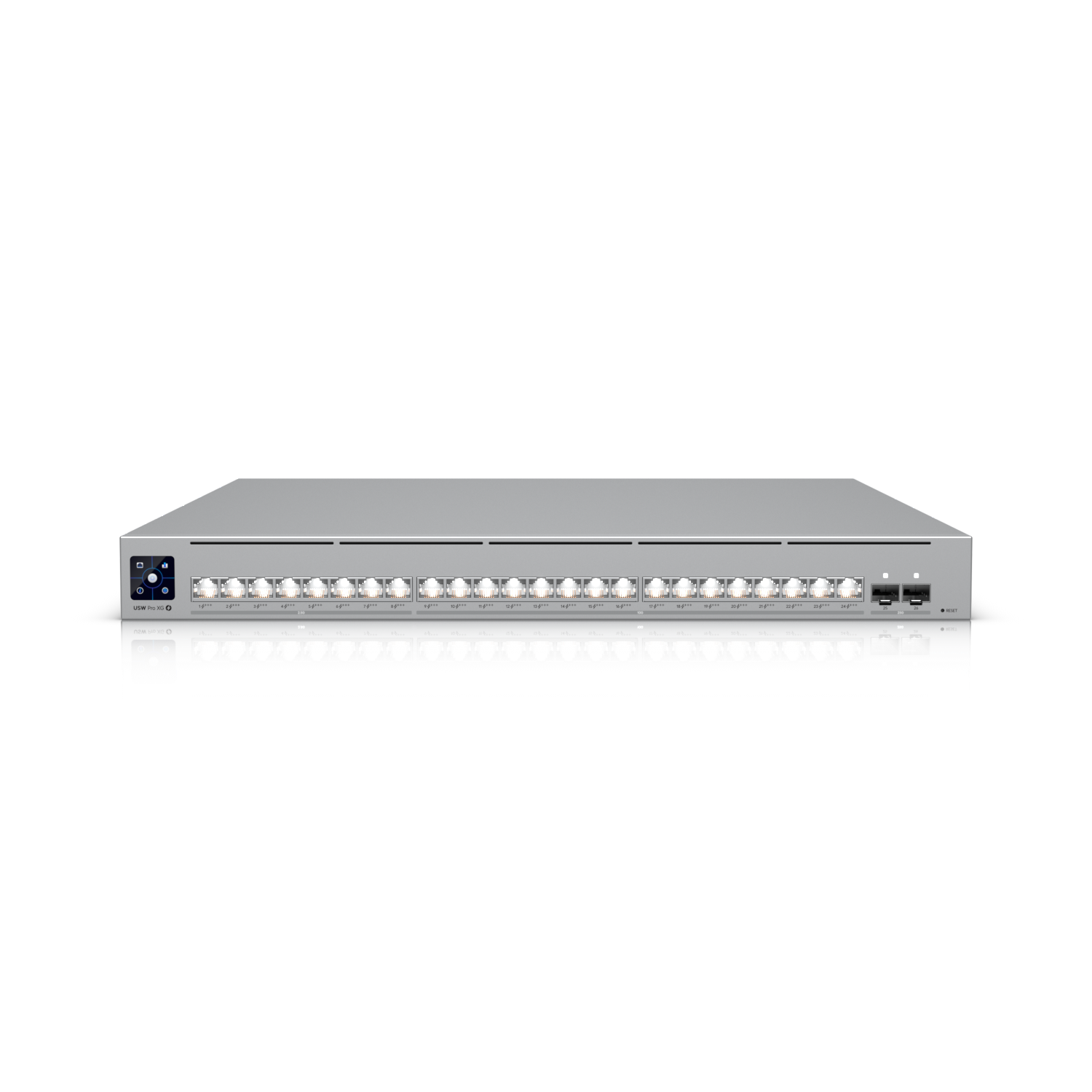

Etherlighting™: Ethernet + SFP28 LEDs
-
Certifications: CE, FCC, IC, Anatel, NDAA Compliant
Software
-
Controller Support: UniFi Network (v9.1.120 and later required)
