Switch Ubiquiti Enterprise 24 PoE with 2.5Gbps and SFP+ ports

USW-Enterprise-24-PoE_VZ
In stock
full product features
Price
1 973,61 BGN
Qty
+

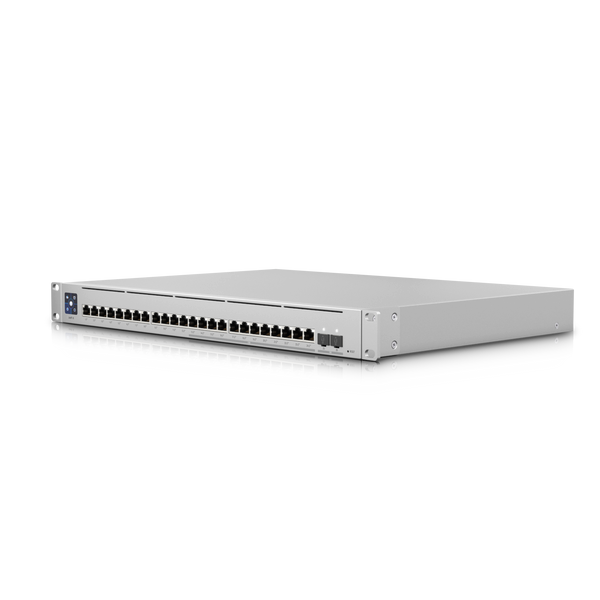

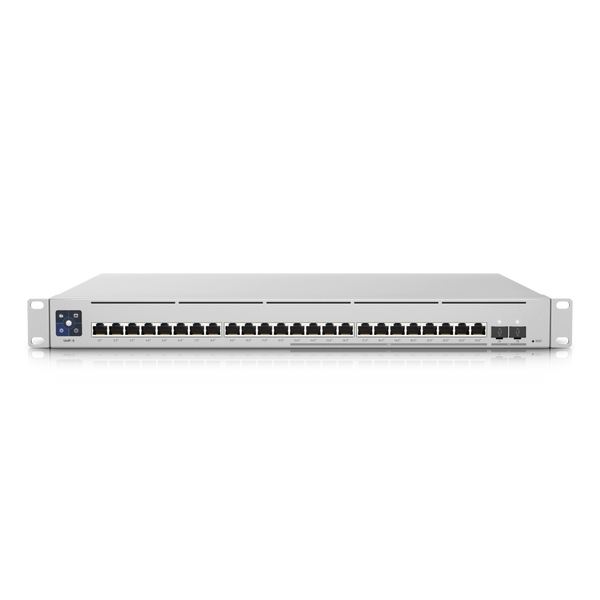

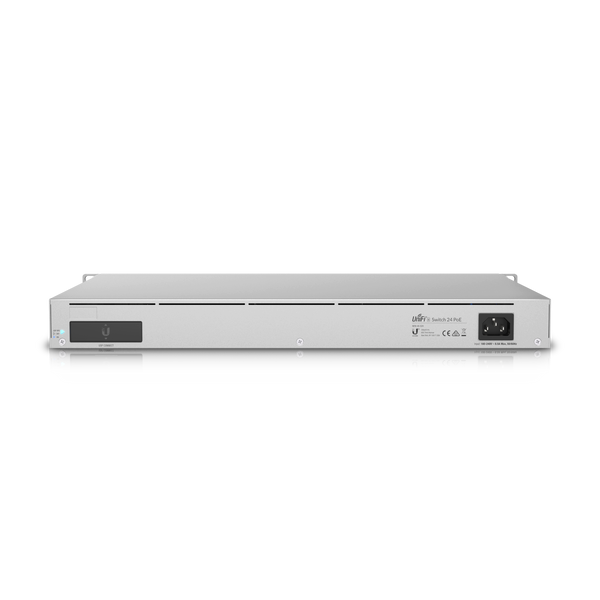

Switch Ubiquiti Enterprise 24 PoE with 2.5Gbps and SFP+ ports

USW-Enterprise-24-PoE is a congurable Gigabit Layer 3 switch with auto-sensing 802.3at PoE+.
It offers (12) 2.5G RJ45 Ethernet ports, (12) 1G RJ45 Ethernet ports, and (2) 10G SFP+ ports, providing 2.5G PoE links to your Wi-Fi 6 APs and 10G ber uplinks to your network.
Features include a 1.3" touchscreen, single-row RJ45 port layoutfor easy patch panel cable management, and UniFi SmartPower Redundant Power System (USP-RPS)
supportfor intelligent protection from internal PSU interruption or failure.

Features:

  • 12x 2.5 Gbps Ethernet PoE + ports
  • 12x 10/100/1000 Gbps Ethernet PoE + ports
  • 2x 10G SFP + ports
  • Management: Ethernet in-Band
  • Power supply: AC / DC, Built-in: 550W
  • Power supply method:
    • (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz
    • (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
  • Max. PoE+ consumptio per port: 34.2W
  • 802.3af Mode Voltage: 44-57V
  • 802.3at Voltage Mode: 50-57V
  • SMB Layer 3 PoE Gigabit Ethernet Switch
  • Protections: Air: ± 16 kV, Contact: ± 12 kV
  • LED indication: System, Ethernet, SFP+
  • Dimensions: 443 x 325 x 43.7 mm
  • Weight: ~ 5.2 kg.
Availability:
Limited
Brand:
UBIQUITI
Warranty:
24 месеца

Мрежови продукти - Суичова

Ethernet портове:
  • 128 Gbps
Вид на монтаж:
  • 1U rackmount case
  • Rackmount
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • Forwarding Rate: 92.25 Mpps
Захранване:
  • Max. PoE+ Wattage per Port: 34.2W
  • Max. Power Consumption 550W
  • PoE out: 802.3af/at
  • PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  • Power Method: (1) Universal AC input: 100-240VAC, 8.5A Max., 50/60 Hz; (1) USP-RPS DC input: 52VDC, 7.7A; 11.5VDC, 8.7A
Интерфейс:
  • 12x 10/100/1000 GbE PoE+ RJ45 порта
  • 12x 2.5GbE PoE+ RJ45 порта
  • 2 SFP+ ports
Приложение:
  • Rackmount
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • -5 to 40° C (23 to 104° F)
Размери височина:
43.7 mm
Размери дълбочина:
325 mm
Размери ширина:
443 mm
Сертификати:
  • CCC
  • FCC
  • IC
Сигурност:
  • ESD/EMP Protection: Air: ± 16 kV, Contact: ± 12 kV
Съвместимост с мрежови стандарти:
  • 802.3 af
  • IEEE 802.3 at
Тегло, кг.:
5.2 кг.
Тип:
  • Managed
  • UniFi Switch
Управление/Management:
  • Ethernet In-Band

Брошура (usw-enterprise-24-poe_ds, 2,124 Kb) [Download]
