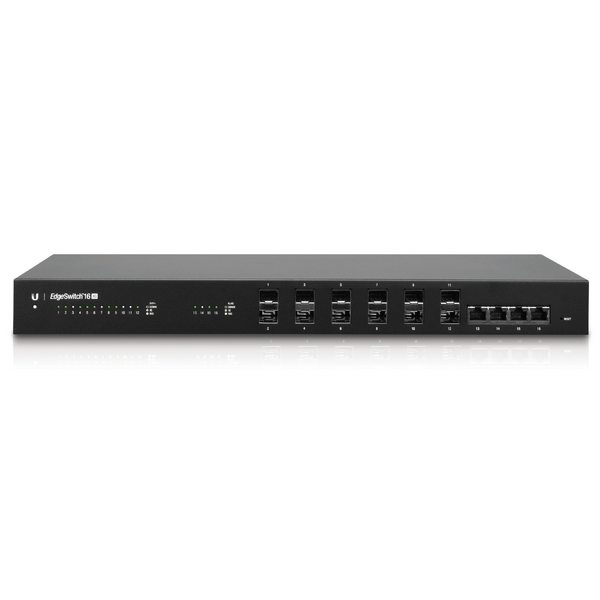

Ubiquiti EdgeSwitch ES-16-XG
10G High-Capacity Links

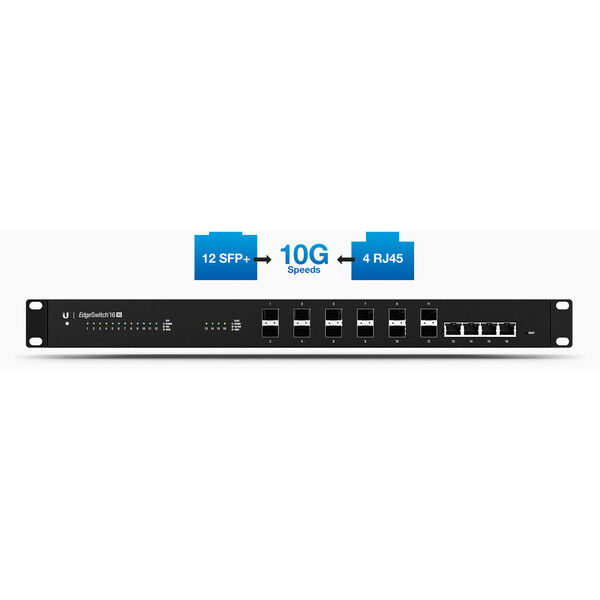

The EdgeSwitch features 12 SFP+ ports and four RJ45 10GBASE-T ports to efficiently deliver and aggregate data at 10G speeds.
Powerful Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non‑blocking throughput, the EdgeSwitch supports up to 160 Gbps.
Advanced Enterprise Switching
The EdgeSwitch uses a sophisticated operating system that provides advanced switching features, including VLAN tagging and link aggregation,
and limited layer-3 features, including static routing and DHCP server functionality.
Features:
• (12) SFP+ Ports
• (4) 10G RJ45 Ports
• (1) RJ45 Serial Console Port
• Non-Blocking Throughput: 160 Gbps
• Switching Capacity: 320 Gbps
• Forwarding Rate: 238.10 Mpps
• Rack Mountable with Rack-Mount Brackets (Included)
• DC Input Option (Redundant or Stand-Alone)
