9-Port 10/100Mbps Desktop Switch TP-Link LS109P with 8-Port PoE+

LS109P_VZ
Out of stock
  • Тип Desktop switch
  • Brand TP-LINK
full product features
Price
86,16 BGN
Add to wishlist Comparison list

9-Port 10/100Mbps Desktop Switch TP-Link LS109P with 8-Port PoE+

  • 63 W PoE Budget: Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
  • Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
  • PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
  • Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.
  • Plug and Play: Simply plug and play for instant connectivity with no configuration required.
  • Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
  • Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

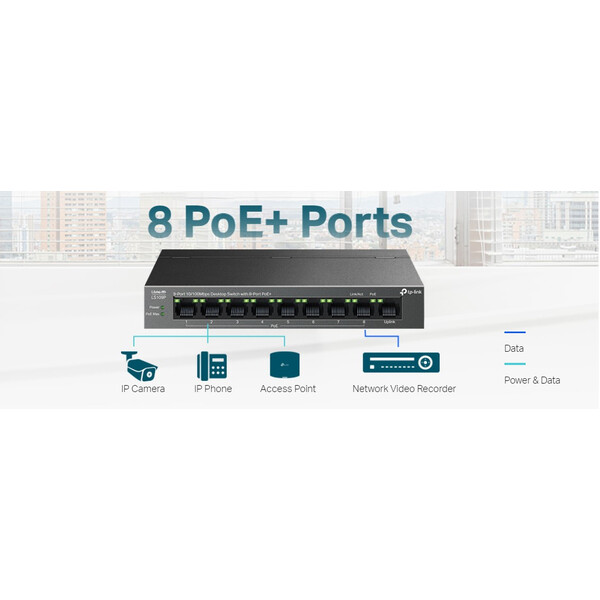

Power over Ethernet, Flexible Network Deployment
Compliant with the 802.3af/at PoE+ standard, 63 W available for all PoE+ Ports, 30 W max per Port

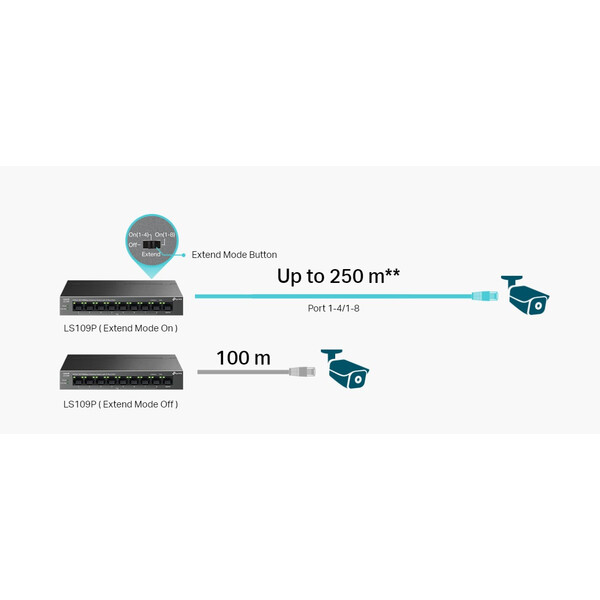

Ideal for IP Surveillance  —Up to 250 m Transmissions

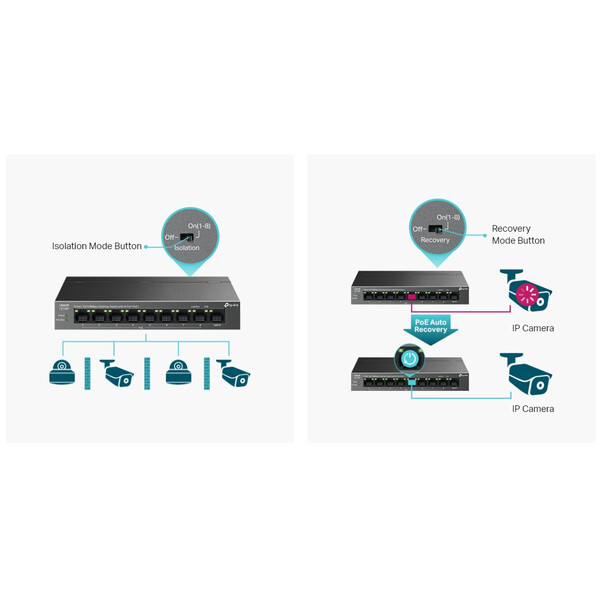

Toggle for Network Security and Stability

Isolation Mode
Easily divide traffic to avoid snooping/tampering and broadcast storm.

Recovery Mode ButtonIP CameraIP Camera
PoE Auto Recovery -  Automatically detect and reboot offline or unresponsive devices.

Plug and Play

Package content
• LS109P
• Power Adapter
• Installation Guide
• Rubber Feet

Availability:
No stock
Brand:
TP-LINK
EAN:
4895252504620
Warranty:
60 месеца
Warranty criteria:
Warranty Card/Serial Number

Мрежови продукти - Суичова

Ethernet портове:
  • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)
Вид на монтаж:
  • Wall Mounting
  • Декстоп
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • Jumbo Frame 2 KB
  • Mac Address Table 2K
  • Packet Forwarding Rate 0.744 Mpps
  • Switching Capacity 1 Gbps
Захранване:
  • External Power Adapter (Output: 53.5VDC / 1.31A)
Интерфейс:
  • 8× 10/100 Mbps 802.3af/at PoE+ Ports
  • 9x 10/100/1000 Mbps Ethernet Ports
  • AUTO Negotiation/AUTO MDI/MDIX
Мрежови характеристики:
  • Auto-MDI/MDIX Ports
  • Auto-Negotiation
Охлаждане:
  • Пасивно
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • 0℃~40℃ (32℉~104℉)
Сертификати:
  • CE, FCC, RoHS
Софтуерни функции:
  • Compatible With IEEE 802.3af Compliant PDs
  • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
  • Green Technology
  • IEEE 802.3x Flow Control
  • Mac Address Auto-Learning and Auto-Aging
  • PoE Auto Recovery Button (Ports 1-4)
Съвместимост с мрежови стандарти:
  • IEEE 802.3af/at
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Тегло, кг.:
1 кг.
Температура на съхранение:
  • -40℃~70℃ (-40℉~158℉)
Тип:
  • Desktop switch

Брошура (LiteWave_PoE_Switches_Datasheet.pdf, 5,195 Kb) [Download]

Ръководство за бързо инсталиране (7106510934_LS106LP_UN_2.0_IG.pdf, 245 Kb) [Download]

Декларация за съответствие - v.2 (CE_DOC_LS109P.pdf, 1,004 Kb) [Download]
