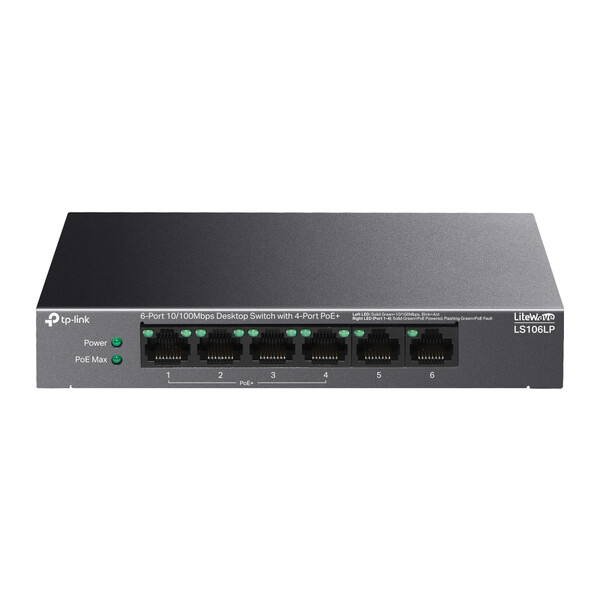

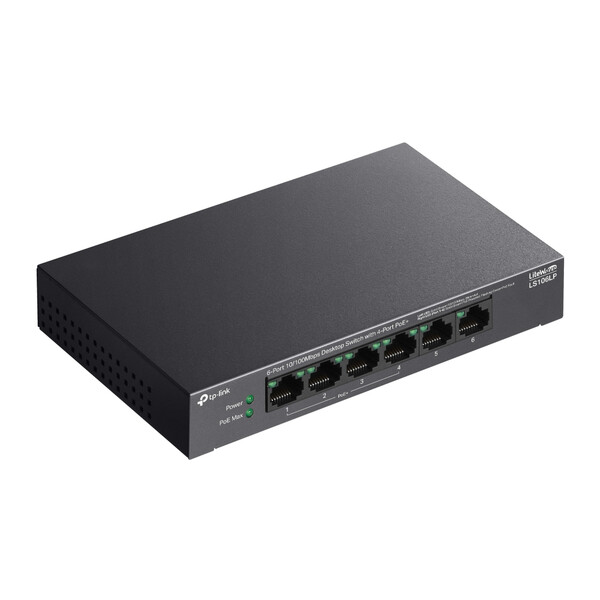

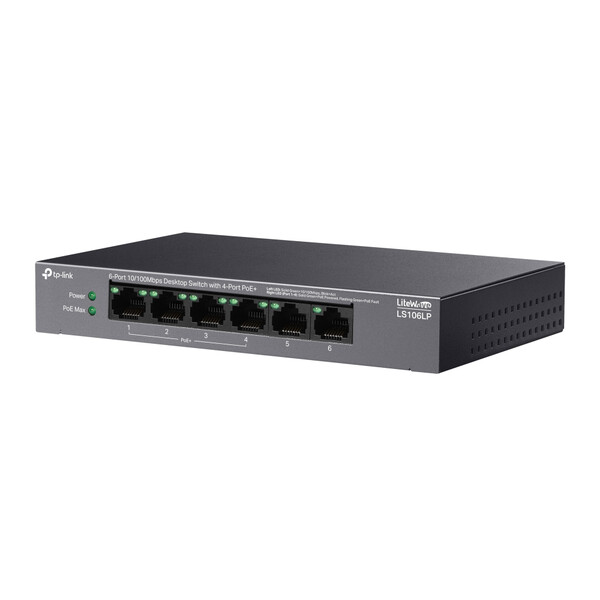

6-Port 10/100Mbps Desktop Switch TP-Link LS106LP with 4-Port PoE+

LS106LP_VZ
Out of stock
  • Тип Desktop switch
  • Brand TP-LINK
full product features
Price
61,00 BGN
Add to wishlist Comparison list

 6-Port 10/100Mbps Desktop Switch TP-Link LS106LP with 4-Port PoE+

  • 4× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port*
  • 41 W total PoE budget*
  • Up to 250m data and power transmitting range under Extend Mode**
  • Automatically reboots your dropped or unresponsive PoE-powered devices.
  • Simply plug and play for instant connectivity with no configuration required.
  • Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.

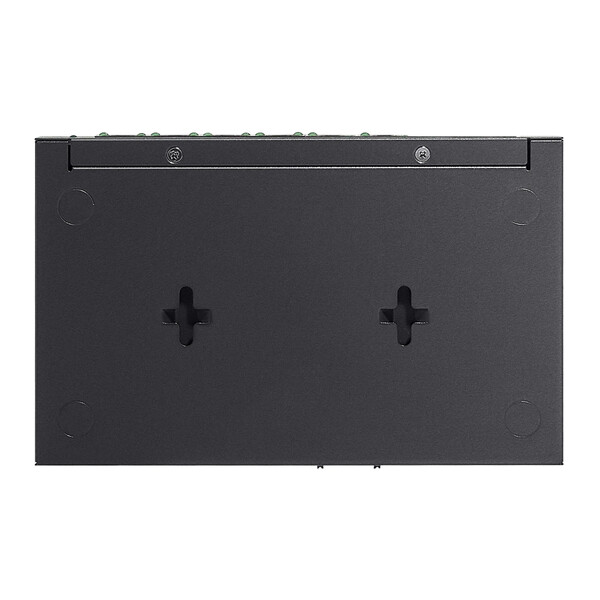

  • Desktop / Wall-mounting

41W PoE Budget*
Long-Range PoE+ (250 m**)
PoE Auto Recovery
Intelligent Power Management
Desktop or Wall-Mounting
Plug and Play
Fanless Design for Silent Operation
Durable Metal Casing

Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 41 W with 30 W max per PoE+ port. When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

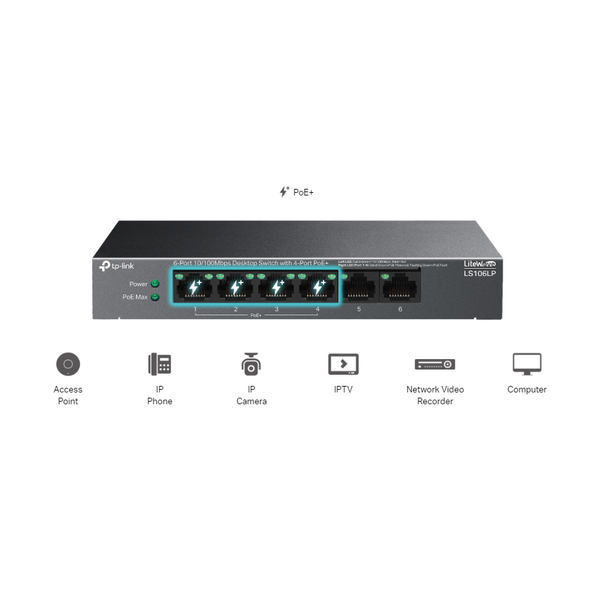

PoE+
Access Point
IP Phone
IP Camera
IPTV
Network Video Recorder
Computer



Instantaneous Multi-mode Toggles, Ideal for IP Surveillance

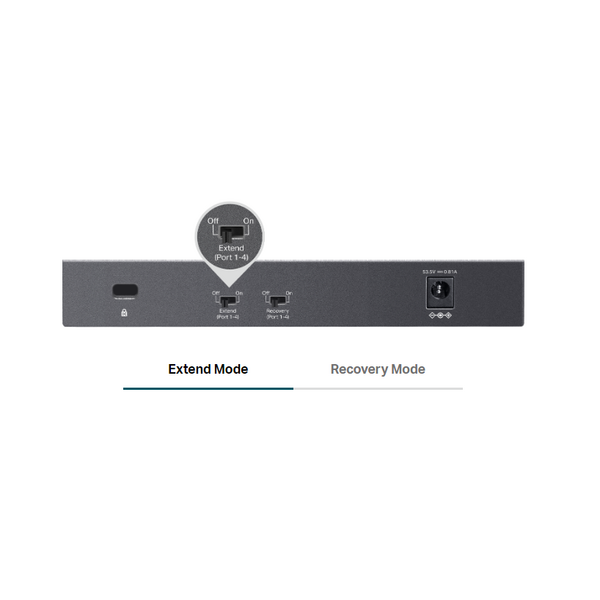

Extend Mode

Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m —perfect for IP Camera deployment in large areas.

Recovery Mode
PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

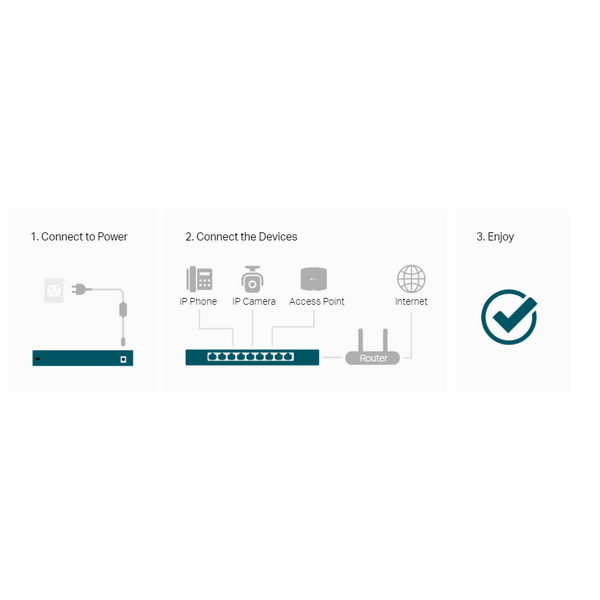

Plug and Play
1. Connect to Power
2. Connect the Devices
IP PhoneIP CameraAccess PointInternetRouter
3. Enjoy

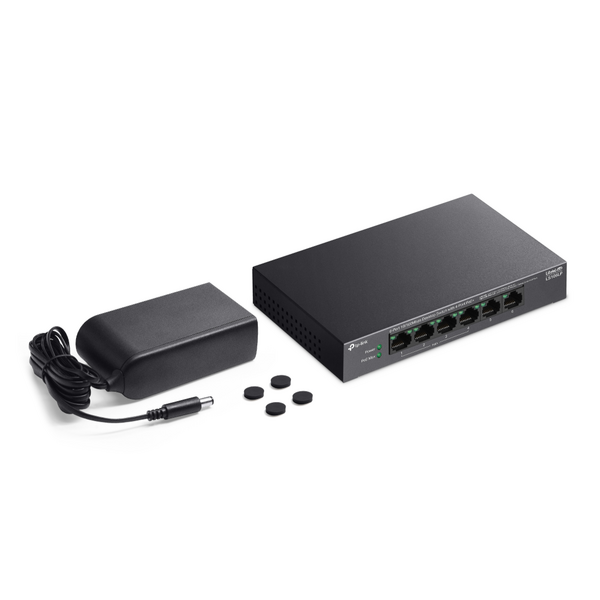

 Package content

  • LS106LP
  • • Power Adapter
  • • Installation Guide



Availability:
No stock
Brand:
TP-LINK
EAN:
4895252504606
Warranty:
60 месеца
Warranty criteria:
Warranty Card/Serial Number

Мрежови продукти - Суичова

Ethernet портове:
  • 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ Ports)
Вид на монтаж:
  • 13-inch rack-mountable steel case
  • Декстоп
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • Jumbo Frame 2 KB
  • Mac Address Table 2K
  • Packet Forwarding Rate 0.744 Mpps
  • Switching Capacity 1 Gbps
Захранване:
  • External Power Adapter (Output: 53.5VDC / 0.81A)
Интерфейс:
  • 6× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ Ports)
  • AUTO Negotiation/AUTO MDI/MDIX
Мрежови характеристики:
  • Auto-MDI/MDIX Ports
  • Auto-Negotiation
Охлаждане:
  • Пасивно
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • 0℃~40℃ (32℉~104℉)
Размери височина:
25 mm
Размери дълбочина:
101 mm
Размери ширина:
158
Сертификати:
  • CE, FCC, RoHS
Софтуерни функции:
  • Compatible With IEEE 802.3af Compliant PDs

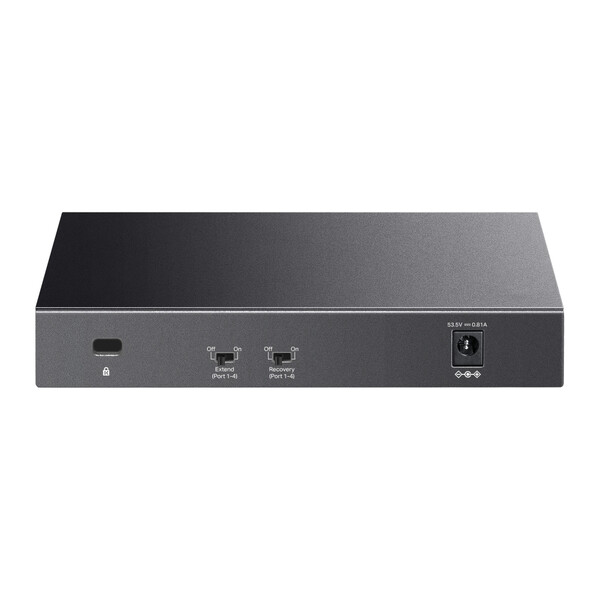

  • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)
  • Green Technology
  • IEEE 802.3x Flow Control
  • Mac Address Auto-Learning and Auto-Aging
  • PoE Auto Recovery Button (Ports 1-4)
Съвместимост с мрежови стандарти:
  • IEEE 802.3af/at
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Тегло, кг.:
1 кг.
Температура на съхранение:
  • -40℃~70℃ (-40℉~158℉)
Тип:
  • Desktop switch

Брошура (LS106LP_UN_2.0_datasheet.pdf, 2,230 Kb) [Download]

Ръководство за бързо инсталиране (Wall_Mountable_Switches_Wall_Mounting_Guide.pdf, 523 Kb) [Download]

Декларация за съответствие - v.2 (CE_DOC_LS106LP_V2.pdf, 1,004 Kb) [Download]
