Smart Battery Video Doorbell TP-Link Tapo D235

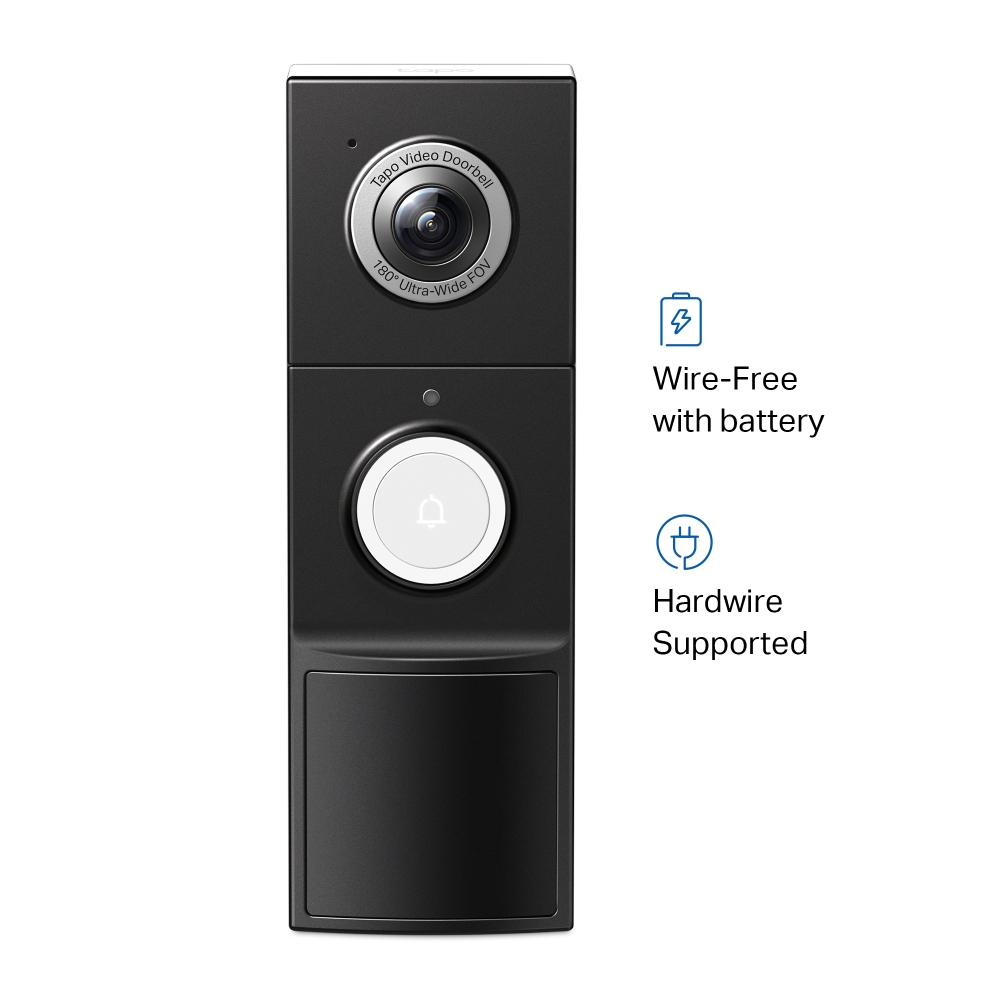

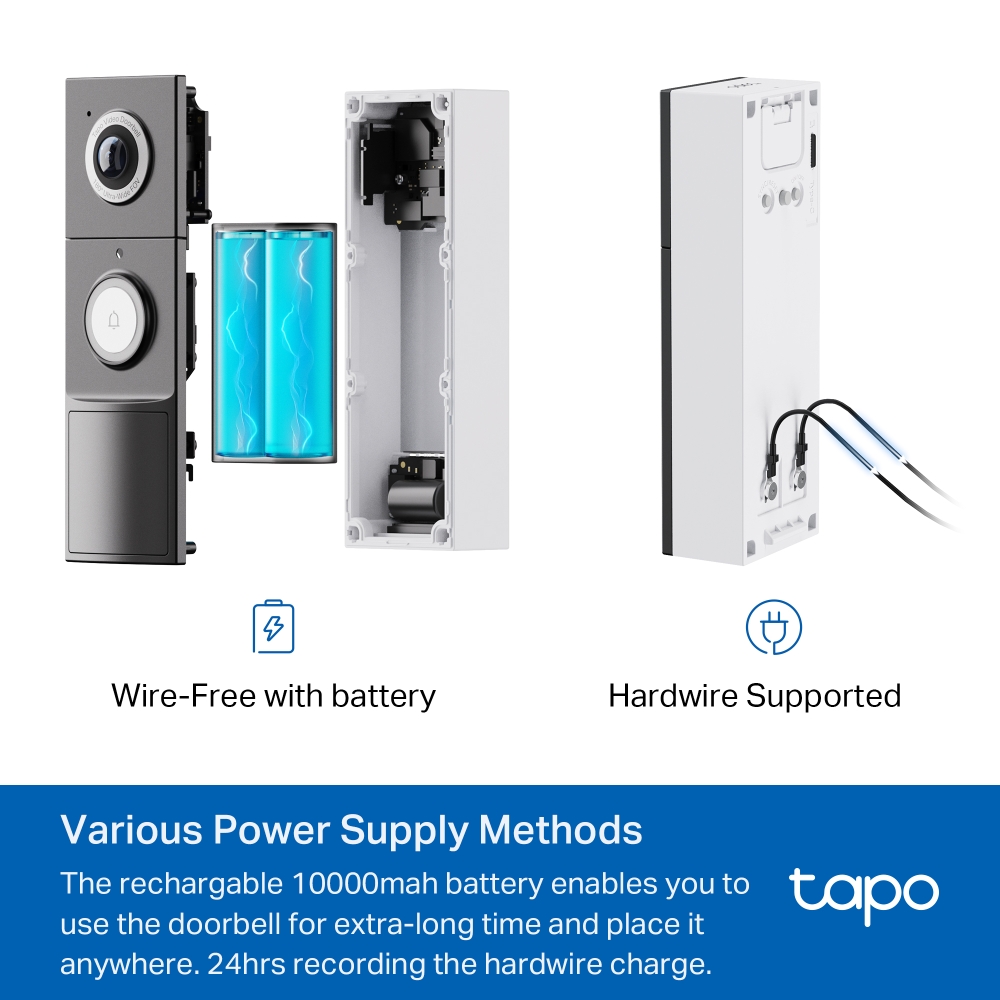

• 210-day battery or wired: 10000mAh battery or 8-24V hard-wired, supports pre-launch when hard-wired.
• 2K 5MP Clarity: Provides finer details and incredible clarity.
• 180° Ultra-wide View: Captures everything from head to toe.
• Full-color night vision with floodlight: Bright night vision and security.
• Free detection and notification: Alerts for person, vehicle, pet, and package.
• Two-way audio: High-quality conversation with premium microphone and speakers.
• Fast response: Fast response in any situation.
• IP66 Weatherproof: Reliable in all weather conditions.
• Local and cloud storage: Supports microSD card (up to 512GB) and Tapo Care cloud services.

Flexible wedges, flexible views
A variety of wedge choices give users the ability to tailor their doorbell to suit more placement scenarios. Users can also use these wedges to adjust views.

Local and cloud storage
Save recorded videos to a microSD card* (up to 512GB, purchased separately) or use Tapo Care cloud storage services (subscribe separately).

Up to 512GB

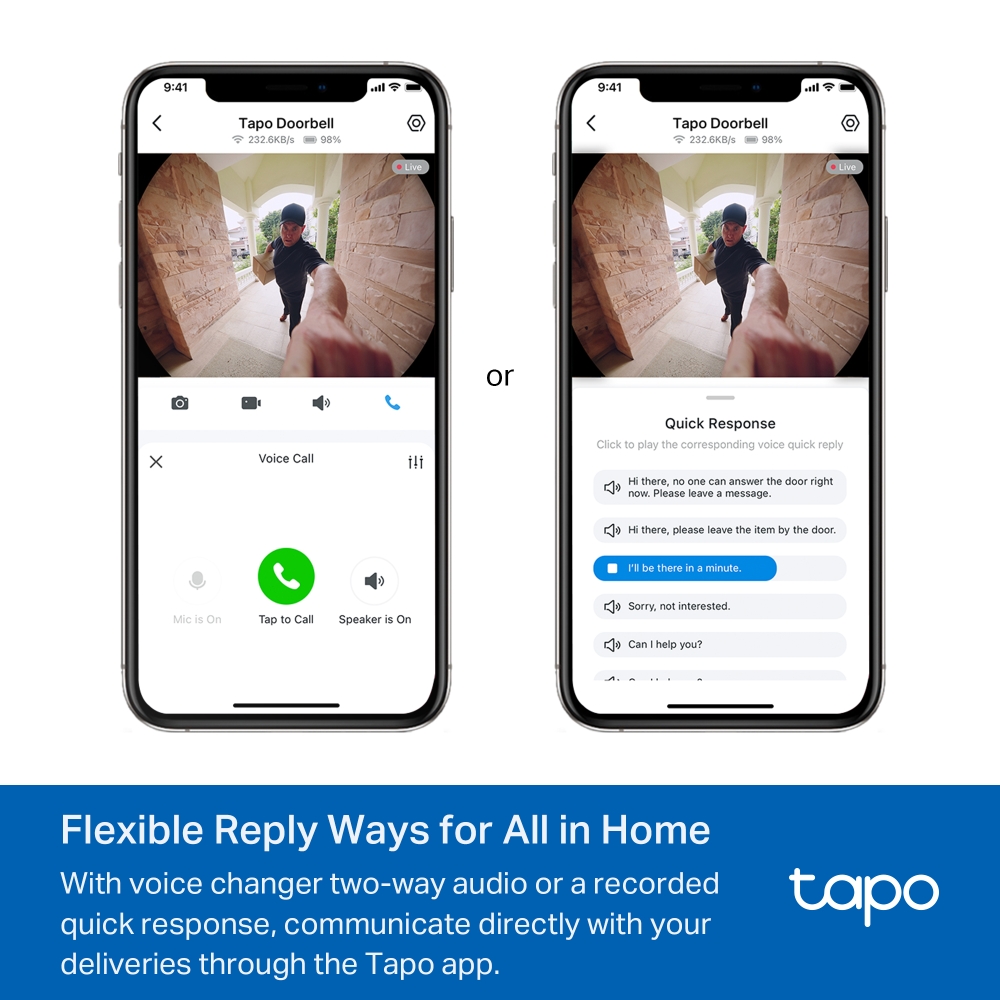

Flexible ways to answer
With voice changer (voice change) for two-way audio or a recorded quick answer, communicate directly with your deliveries via the Tapo app.

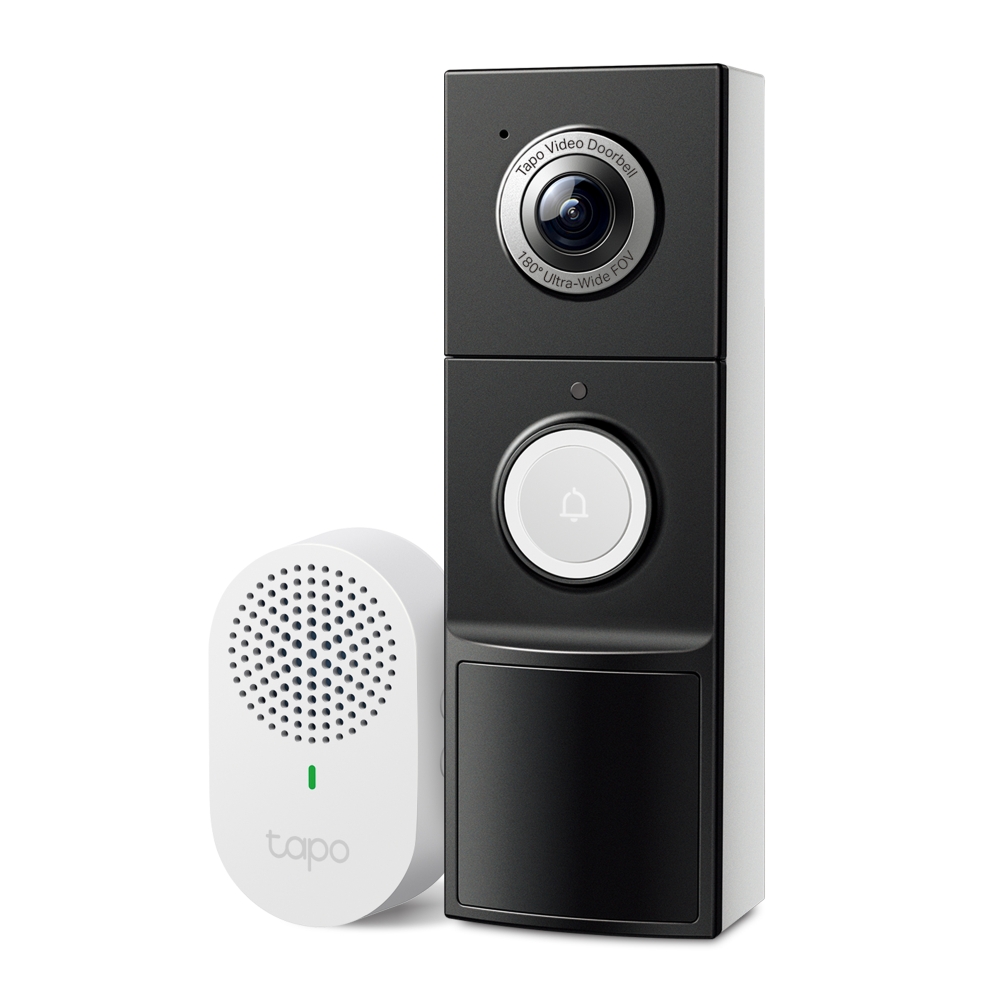

Provided internal chime
Choose from a variety of melodies to get an instant notification when you’re home.

Two-way audio
Customize quick answers

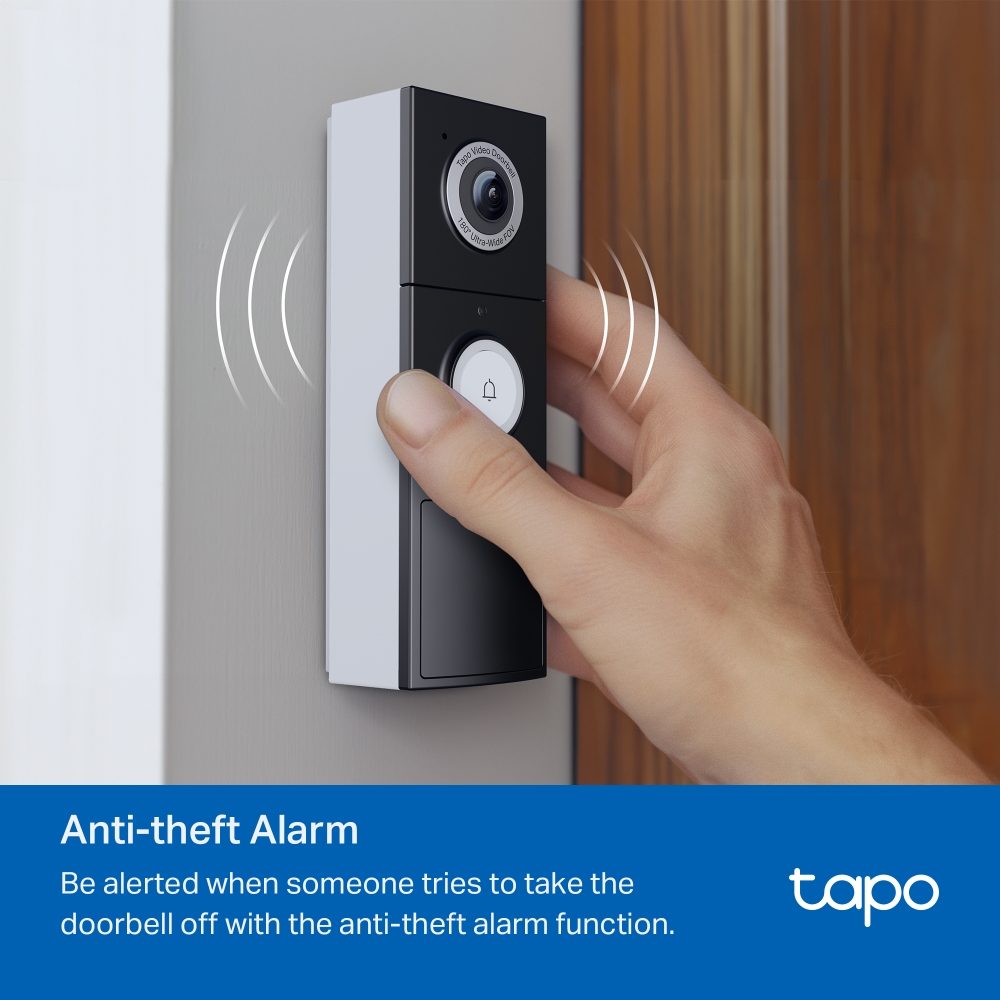

Anti-theft alarm
Get notified when someone tries to remove the doorbell with the anti-theft alarm feature.

Activity Zones
Notifies you when activity is detected in specific areas.

Voice Activation
Compatible with Alexa and Google Assistant to see what the doorbell sees on a supported device.

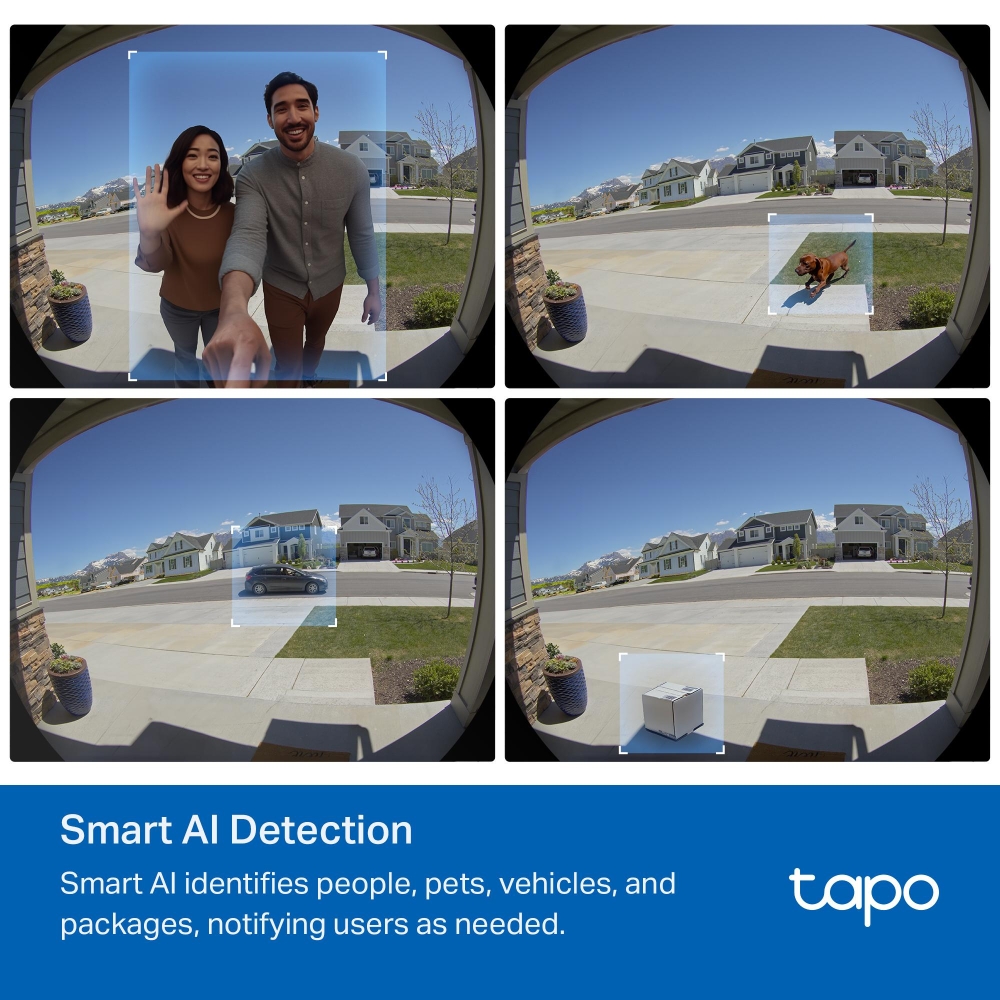

Smart AI Detection and Notification
Smart AI identifies people, pets, vehicles, and packages, notifying users when needed.

Install Your Doorbell
Step 1
Option 1: Stick to Wall
Attach the included adhesive to the back of the bracket or wedge of your choice. If using the wedge, secure the bracket and wedge with screws.

Route the wires through the bracket (if there are existing wires). Wipe off any dust from the surface with a dry cloth, stick the adhesive bracket to the smooth wall, and press down for 15 seconds to ensure the bracket is firmly attached.

or
Option 2: Wall Mount
Rout the wires (if there are existing wires) through the mounting template and tape the template. Drill two holes where indicated.

Φ=6 mm (15/64 in)

Rout the wires (if there are existing wires) through the bracket. Insert two anchors into the holes and use the screws to secure the bracket to the anchors.

Step 2 Mount the doorbell to the bracket
Option 1: Battery Powered
Mount the doorbell to the bracket.

Option 2: Corded Powered
Connect the wires to the doorbell and tighten the screws. Mount the doorbell to the bracket and turn on the circuit breaker.

Package Contents
Tapo Video Doorbell × 1
Tapo Chime × 1
Mounting Template × 1
Mounting Bracket × 1
Vertical Mounting Wedge × 1
Horizontal Mounting Wedge × 1
USB Adapter Cable × 1
Jumper for Existing Doorbell × 1
Extension Cables × 2
Mounting Screws and Anchors × 3
Hardwire Mounting Screws × 2
Doorbell Disassembly Pin × 1
Mounting Wedge Screws × 5
3M Adhesive × 1
Foam Pad × 1
Wire Nuts × 2
Quick Start Guide
