| Серия | Z790 Pro |
| Процесор | Intel 1700 |
| Чипсет | Intel Z790 |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI support |
| Памет | DDR5 |
| Брой слотове | 4 DIMM Slots, Max. capacity of system memory: 192GB |
| Аудио | 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio |
| Безжична мрежа | - |
| Конектори | 24 pin ATX Power Connector, 2 x 8 pin 12V Power Connectors, Front Panel Audio Connector, Thunderbolt AIC Connector, 2 x USB 2.0 Headers, 2 x USB 3.2 Gen1 Headers, Front Panel Type C USB 3.2 Gen2x2 Header |
| Слотове | CPU: PCIe 5.0 x16 Slot (PCIE2), supports x16 mode; Chipset: PCIe 4.0 x16 Slot (PCIE3), supports x4 mode, 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) |
| M.2 слот | M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT) |
| Интерфейс | 2 x Antenna Mounting Points, PS/2 Mouse/Keyboard Port, HDMI Port, DisplayPort 1.4, USB 3.2 Gen2 Type-A Port, USB 3.2 Gen2 Type-C Port, 2 x USB 3.2 Gen1 Ports, 4 x USB 2.0 Ports, RJ-45 LAN Port, HD Audio Jacks: Line in / Front Speaker / Microphone |
| Софтуер | ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| Операционна система | Microsoft Windows 10 64-bit / 11 64-bit |
| Форм-фактор | ATX Form Factor: 30.5 cm x 24.4 cm |
| Специални функции | Superb Productivity, Rock-Solid Durability, Ultrafast Connectivity, EZ Update, EZ Troubleshooter |

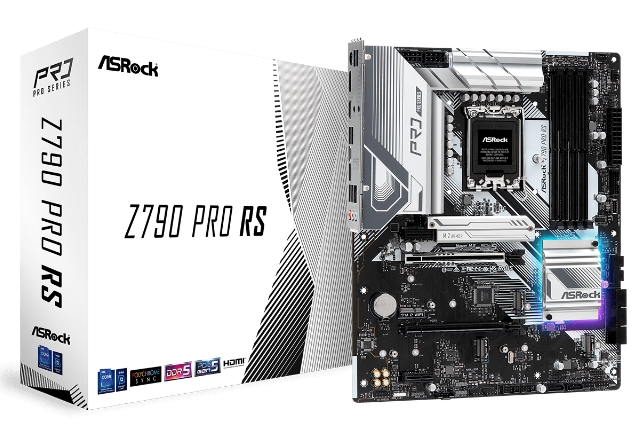

Дънна платка Asrock Z790 Pro RS
Availability:
Limited
Brand:
ASROCK
