Cloud Core Router Mikrotik CCR1009-7G-1C-1S+

CCR1009-7G-1C-1S+_VZ
Out of stock
full product features
Price
1 496,82 BGN
Add to wishlist Comparison list

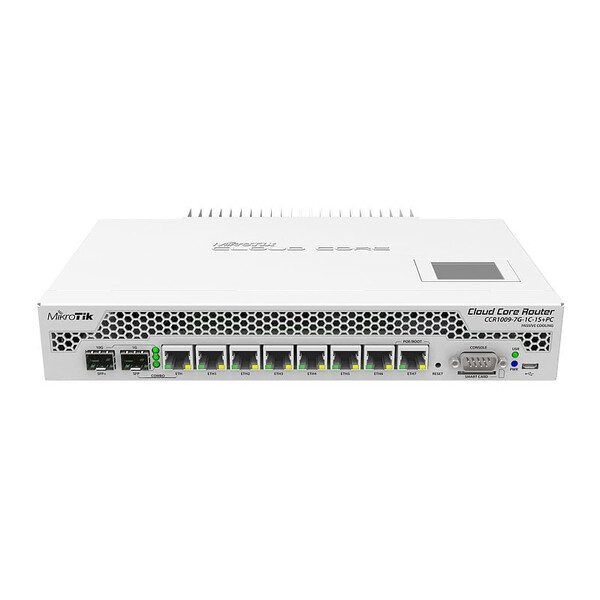

Cloud Core Router Mikrotik CCR1009-7G-1C-1S+

The new updated revision of CCR1009 is here.
We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU,
allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you.
It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.
100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

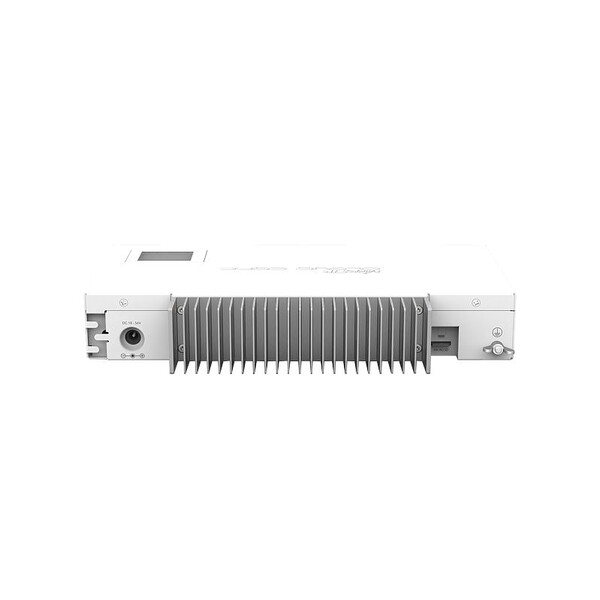

This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent.
It’s powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.
Unit also includes a LCD touchscreen, smart card slot, microSD and a SFP+ port for 10G connections.

Features:

  • CPU: TILE-Gx9, 9 core, 1.2 GHz / 2GB RAM / 128 MB storage
  • Passive PoE in: 15-57 V
  • Max. power consumption: 34W
  • RouterOS license level 6
  • Reset button
  • microSD slot
  • Mini SIM card slot
  • micro USB type AB port
  • Serial port RS232

Package Contents:

  • CCR1009-7G-1C-1S + Router
  • USB cable
  • 2x server sticks
  • 2x power cord

Availability:
No stock
Brand:
MIKROTIK
Warranty:
12 месеца ( юридически лица ) / 24 месеца ( физически лица )

Мрежови продукти - Суичова

EAN:
5711783864233
Ethernet портове:
  • 1.25Gbps
  • 10 Gbps
  • Fast Ethernet
Processor:
  • TLR4-00980CH-10CE-A3b - 1.2 GHz
System Memory:
  • 2GB
Вид на монтаж:
  • Rackmount
  • Декстоп
Захранване:
  • 100~240VAC, 50/60Hz
  • 14 V - 57 V, max 34W
  • Dual power supplies
Интерфейс:
  • (7) 10/100/1000 Ethernet Ports
  • 1 Console Port
  • 1 Gigabit SFP Slot
  • 1x SFP+ 10 Gigabit port
  • microSD card slot
  • microUSB type AB
  • Mini SIM card slot
  • Serial port RS232
Охлаждане:
  • Пасивно
Приложение:
  • Rackmount
Работна температура:
  • 0℃~40℃ (32℉~104℉)
Размери височина:
44 mm
Размери дълбочина:
175 mm
Размери ширина:
443 mm
Сертификати:
  • CE
Системни изисквания:
  • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Софтуерни функции:
  • CPU Monitoring
  • Port Mirroring
  • RouterOS License level 6
Тип:
  • Cloud Core Router
  • Managed

Брошура (CCR1009-7G-1C-1Splus-170313141507.pdf, 417 Kb) [Download]

Декларация за съответствие (CloudCoreRouter_1009-7G-1C-1Splus_Declaration_of_Conformity-170116165532.pdf, 83 Kb) [Download]

Кратко ръководство за инсталация (1535336762ccr-09-series-qg.pdf, 100 Kb) [Download]
