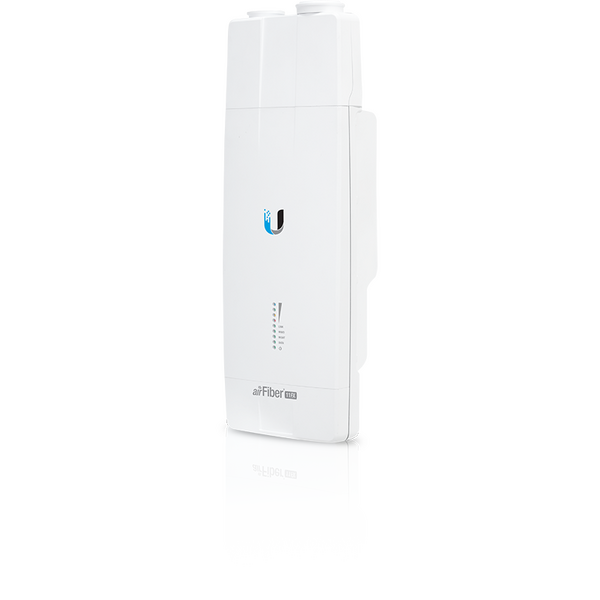

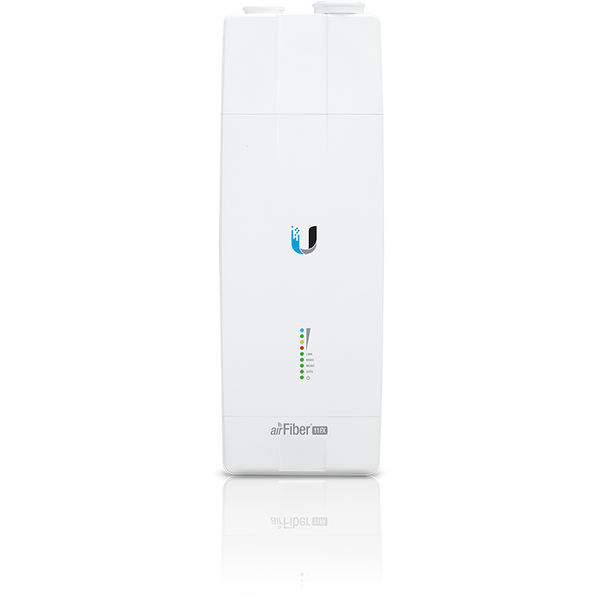

Antenna Ubiquiti AirFiber 11FX AF-11FX
Advanced Engineering
Ubiquiti’s INVICTUS™ 2 custom silicon and proprietary radio architecture are designed specifically for long-distance, outdoor wireless applications, providing superior performance, long-range capability, and higher delivered throughput.
Power Source Options
Support for PoE or DC power gives you the flexibility to power the AF-11FX separately from Ethernet traffic.
Reversible Duplexers
Each AF-11FX requires one or two Duplexers (sold separately; models AF-11FX-DUP-H and AF-11FX-DUP-L).
Channel Configuration
The airFiber AF-11FX can use single (SISO) or bonded (MIMO) channels, depending on your specific licensing requirements.
The AF-11FX also features different channel widths to suit your deployment needs, and you can independently configure TX and RX channel frequencies.
Features:

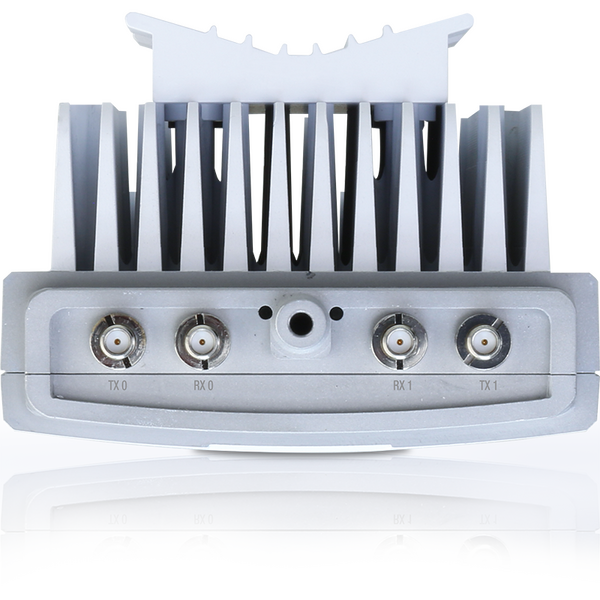

- RF Connectors: (4) SMA Weatherproof:
- TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1)
- (2) N-Type Waterproof, One per Duplexer
- Power Method: Passive Power over Ethernet
- Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) or DC Power Block
- Max. Power Consumption: 36W
- Supported Voltage Range: 38-56VDC
- Automatic Transmit Power Control (ATPC): Yes

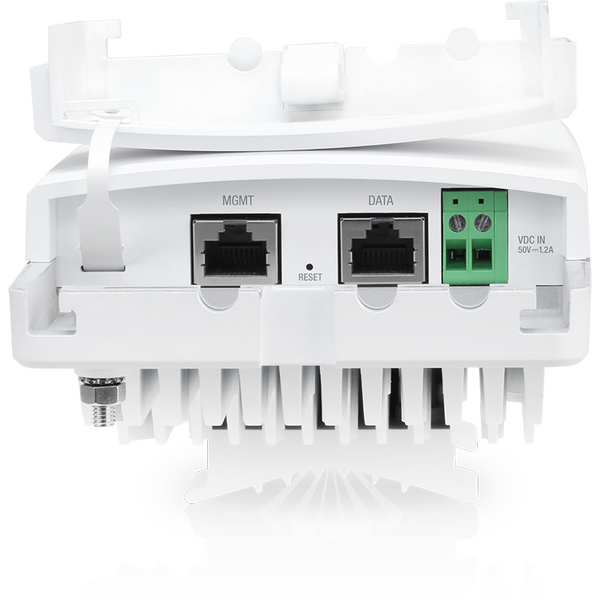

- Data Port: 1x 10/100/1000 Ethernet Port
- Management Port: 1x 10/100 Ethernet Port
- Processor: INVICTUS 2 IC
- Maximum Throughput 1.2+ Gbps
- Maximum Range: 300+ km
- Encryption: 128-bit AES
- OS: airOS F
- Wireless Modes: SISO/MIMO
