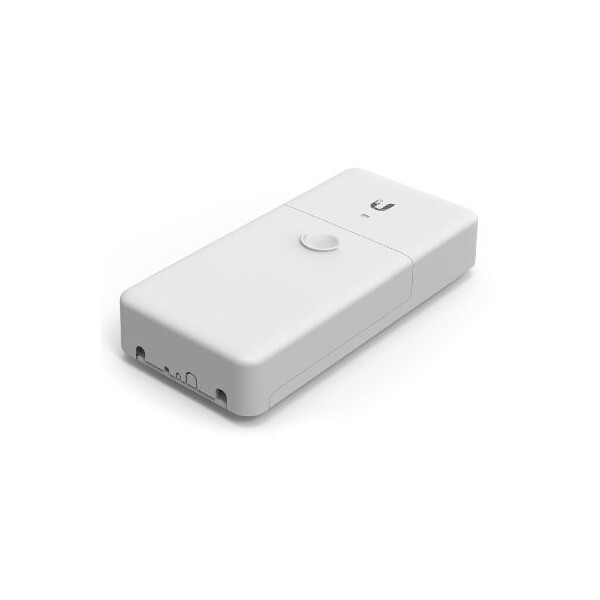

Adapter converter Ubiquiti F-POE
- Data and power are transported on separate cables
- Can be powered in several ways
- Surge protection EMI / ESD
- 1x SFP, 1x 1000Mbps Ethernet,
| Dimensions | 196.4 x 93.5 x 32.4 mm |
| Weight | 288g |
| Enclosure | White Polycarbonate |

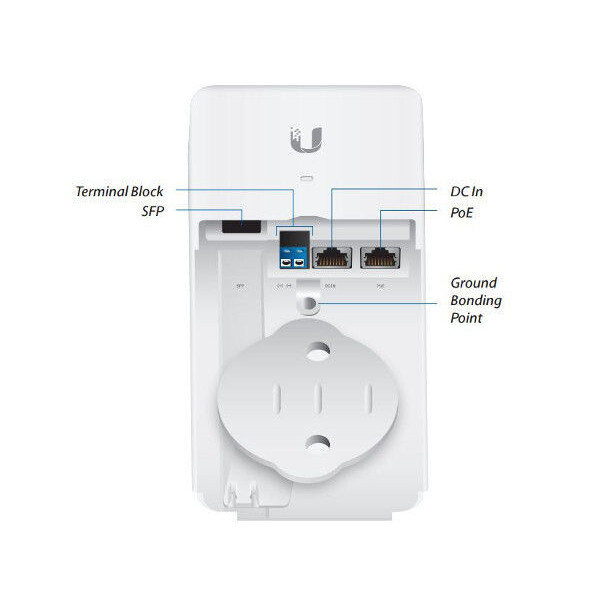

| Interface Connections | 1x Gbps SFP Port 1x DC Terminal Block 1x DC RJ45 Port DC Injection 1x 1000 Mbps Ethernet PoE Port |
| Typical Power Consumption | 1.5W |
| Power Method | DC Terminal Block, 2-Wire, 24VDC or 50VDC DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input) 4-Pair (24VDC or 50VDC Input) Passthrough PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input) 4-Pair (24VDC or 50VDC Input) PoE Passthrough |
| PoE Output | PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC) 4-Pair (24VDC or 50VDC) PoE |

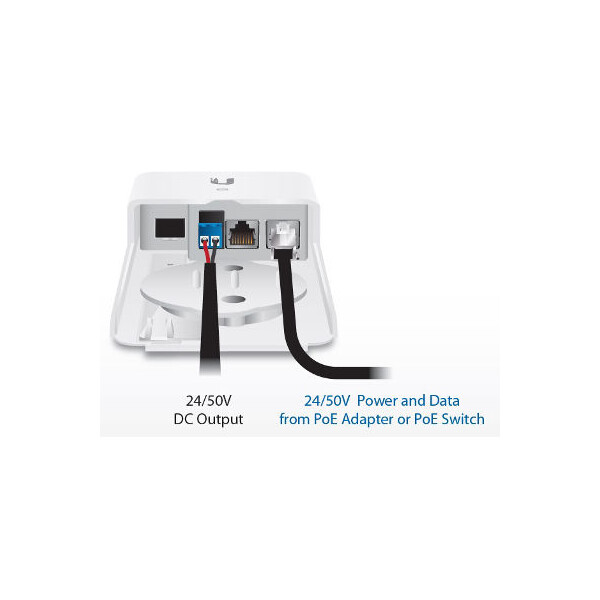

| DC Output | Terminal Block, 2-Wire (24VDC or 50VDC) |
| Input DC Voltage | 16 to 57V |
| LED | White: Power On Blue: Connected Blue (Flashing): Activity |
| Operating Temperature | -30C .. +60C |
| ESD/EMP Protection | ± 24KV Contact / Air for Ethernet |
| Certifications | CE, FCC, IC |
