Access Point TP-Link Omada Pro AP9650 AX3000 Ceiling Mount WiFi 6

AP9650
In stock
  • Brand TP-LINK
full product features

Access Point TP-Link Omada Pro AP9650 AX3000 Ceiling Mount WiFi 6

  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
  • Intelligent Anomaly Detection and Analysis: Supports multi-dimensional anomaly detection and analysis for improved IT maintenance efficiency.
  • Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
  • PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
  • Omada Mesh and Seamless Roaming: Enable wireless connectivity between access points for smooth network and flexible deployment.
  • Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.


What This Product Does
AP9650, the Omada Pro AX3000 Ceiling Mount WiFi 6 Access Point, provides overall 2976 Mbps speeds with WiFi 6 technologies, such as HE160, 1024 QAM, Long OFDM Symbol, and more. A built-in Gigabit Ethernet port allows an ultra-fast business network. PoE+ supported also provides flexible installations.

Integrated into the Omada Software Defined Networking (SDN) solution, AP9650 runs in an efficient management way. Centralized and remote management liberate managers and reduce maintenance costs.

Enterprise-Grade WiFi 6 Speed and Connectivity
Lightning-Fast AX3000 WiFi 6 Speeds
New-era business WiFi 6 with speeds up to 2976 Mbps brings more than twice the speed of WiFi 5. Every application feels more fluid with drastically improved WiFi speeds. 1024 QAM ensures 25% more data encoded at one time. HE160 doubles the data of AP9650 at peak transmission times on a single stream.

Higher Efficiency for More Devices
Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag. Enjoy faster speeds on more devices with less lag.

Boosted Network Security
Customizable WIDS and adaptive WIPS assist in safeguarding critical data and network resources. Intelligent Anomaly Detection and Analysis guarantees 24/7 automatic network anomaly analysis to offer timely optimization advice. AP9650 also provides secure WiFi access along with multiple authentication options (SMS/Voucher/RADIUS) and abundant wireless security technologies, such as WPA3 for worry-free open public networks.

Auto Channel Selection and Power Adjustment* provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network. Band Steering automatically moves dual-band devices onto the wider 5GHz band for faster connections. Load Balance ensures large numbers of users have smooth network experiences in high-density business networks. Airtime Fairness increases average network throughput in heavily congested environments.

Cloud Centralized Management
The Omada Software Defined Networking (SDN) platform provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface. Seamless wireless connections are provided, making them ideal for use in hotels, education, retail, offices, and more. Zero-Touch Provisioning* allows admins to remotely deploy and configure multi-site networks, so there’s no need to send out an engineer for on-site configuration.

Easy Deployment

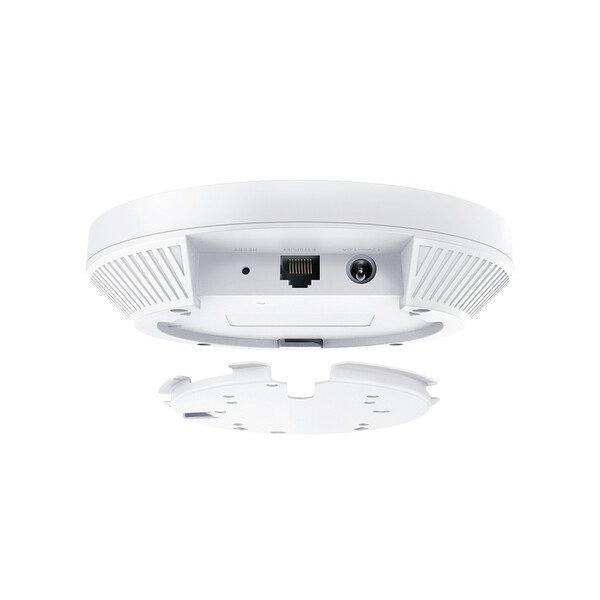

Intelligent software and quality hardware designs together lead to simple deployment. With Automated Radio Frequency Deployment, AP9650 efficiently optimizes RF deployment by scanning the surrounding area 24/7, improving the performance and quality of wireless networks. With Omada Mesh, AP9650 saves you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas. And intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.   What’s more, a flexible power supply, including DC, 802.3at PoE+, and passive PoE, ensures simple installation.  With the compact case design, AP9650 can be installed in 2 steps: simply push and rotate.

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions.

Package Contents
• AP9650
• Ceiling/Wall Mounting Kits
• Installation Guide

Availability:
Limited
Brand:
TP-LINK
Warranty:
60 месеца

Ръководство за работа v1 (1910013335_Omada_Pro_AP_UG_REV1.0.0__3_.pdf, 12,105 Kb) [Download]

Брошура (Omada_Pro_AP_Datasheet__2_.pdf, 11,182 Kb) [Download]

Ръководство за инсталиране v1 (7106510783_AP9635_AP9665_IG_V1__1_.pdf, 691 Kb) [Download]

Декларация за съответствие v1 (AP9650_1.0.pdf, 1,009 Kb) [Download]
