8-port managed gigabit switch Ubiqtui UniFi Switch 8 US-8

US-8_VZ
Out of stock
full product features
Price
276,40 BGN
Add to wishlist Comparison list

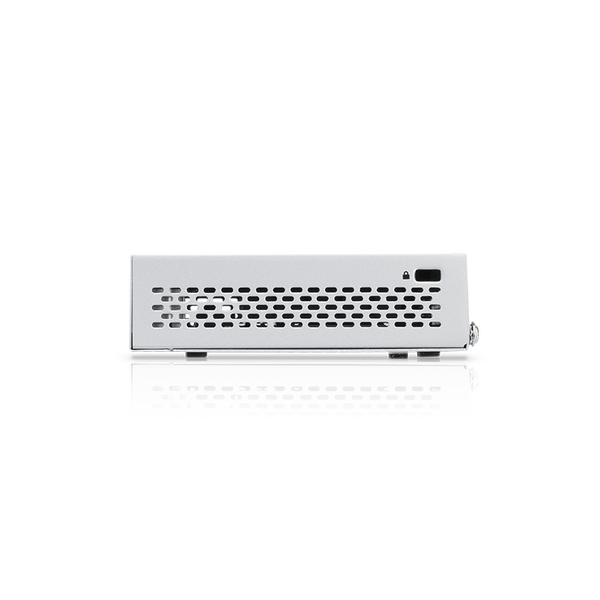

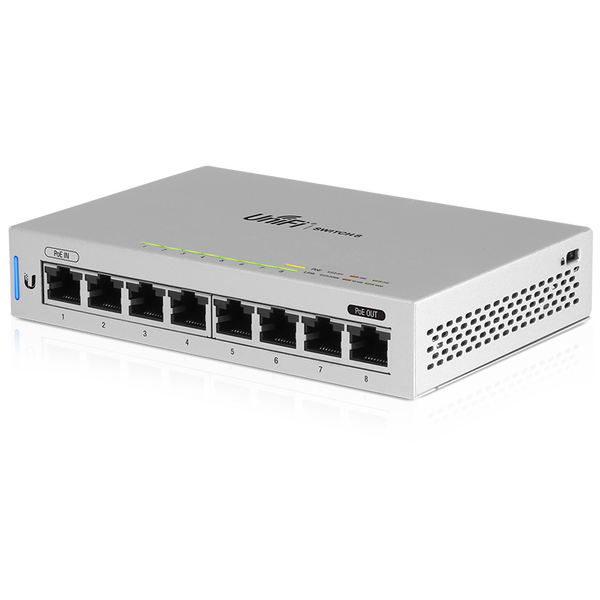

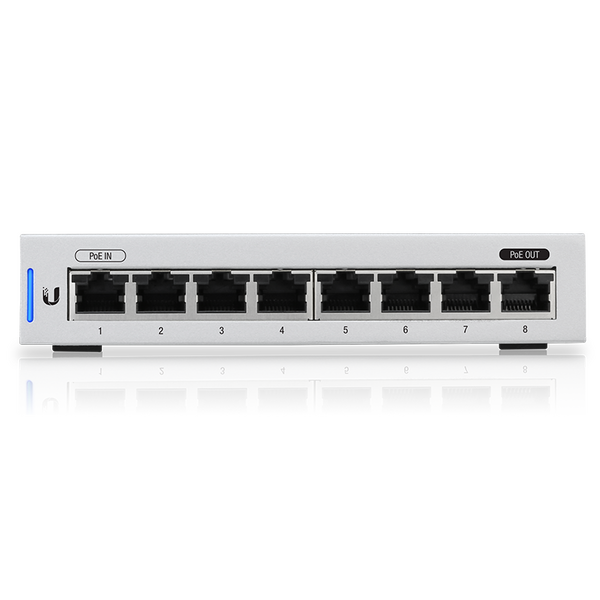

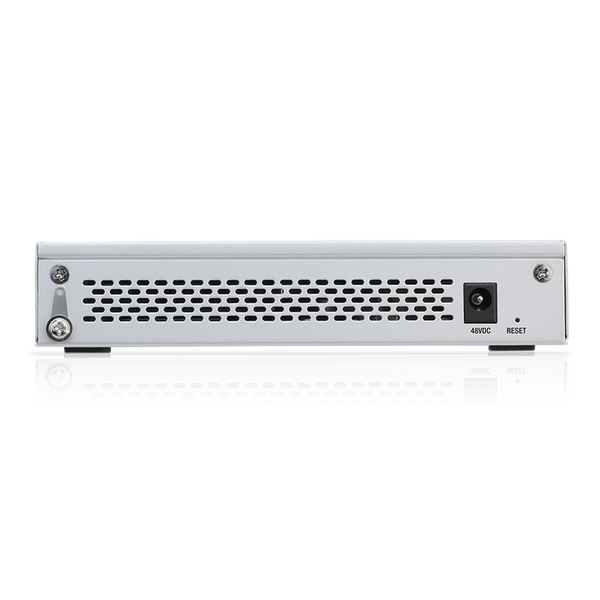

8-port managed gigabit switch Ubiqtui UniFi Switch 8 US-8

Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products.
The 8-port models feature Gigabit Ethernet ports in a compact form factor.
The switches are fully manageable, delivering robust performance and intelligent switching for your growing networks.

The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, each supports up to 8 Gbps with a switching capacity of 16 Gbps.

Features:

  • 8x Gigabit RJ45 Ports
  • Non-Blocking Throughput: 8 Gbps
  • Switching Capacity: 16 Gbps
  • Forwarding Rate: 11.9 Mpps
  • Maximum Power Consumption: 12W
  • Power Method: 48VDC, Max. 2A
  • ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
  • Max. Passive PoE Wattage per Port:
    • PoE Mode 1: 12W @ 802.3at
    • PoE Mode 2: 12W @ 48V
    • DC Input Mode: 12W @ 48V
  • PoE In Interface (Port 1): PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)
    • PoE Mode 2: 48V (2-Pair Pins +4, 5; -7, 8)
  • PoE Out Interface (Port 8) PoE Mode 1: 48V (Pins +1, 2; -3, 6)
    • PoE Mode 2: Passive 48V
    • (2-Pair Pins +4, 5; -7, 8)
    • DC Input Mode: DC Passthrough
    • (Pins +1, 2; -3, 6)
  • Management Interface: Ethernet In-Band Management
Availability:
No stock
Brand:
UBIQUITI
Warranty:
24 месеца

Мрежови продукти - Суичова

EAN:
810354026171
System Memory:
  • 256 MB
Вид на монтаж:
  • Rackmount
  • Декстоп
Експлоатационни качества:
  • Forwarding Rate 11.9 Mpps
  • Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP)
  • Switching Capacity 16 Gbps
Захранване:
  • Max. Power Consumption: 12W
  • Output: 48VDC / 1.25A
Интерфейс:
  • (8) 10/100/1000 Ethernet Ports
Мрежови характеристики:
  • Switching Capacity: 16 Gbps
Охлаждане:
  • Пасивно
Работна влажност:
  • 5%~95% без кондензация
Работна температура:
  • -5 ~ 45° C
Размери височина:
31 mm
Размери дълбочина:
100 mm
Размери ширина:
148 mm
Сертификати:
  • CE
  • FCC
  • IC
Сигурност:
  • Broadcast Storm Control
Софтуерни функции:
  • Jumbo frame and flow control services
Съвместимост с мрежови стандарти:
  • 802.3 af
  • IEEE 802.1x
  • IEEE 802.3x Flow Control
Тегло, кг.:
432 гр.
Тип:
  • Managed
  • UniFi Switch
Управление/Management:
  • Web UI

Брошура (UniFi_Switch_8_DS.pdf, 5,719 Kb) [Download]

Ръководство за бързо инсталиране (US-8_QSG.pdf, 3,072 Kb) [Download]
