8-ports Gigabit Smart PoE+ switch TP-Link Omada Pro S4500-8GP2F 2 SFP slots

S4500-8GP2F
In stock
  • Тип Smart
  • Brand TP-LINK
full product features

8-ports Gigabit Smart PoE+ switch TP-Link Omada Pro S4500-8GP2F 2 SFP slots

  • 61W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 61 W.*
  • Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP slots provide high-speed connections.
  • Integrated into Omada Pro: Zero-Touch Provisioning (ZTP), Intelligent Anomaly Detection, and centralized cloud management with cloud access and the Omada App.**
  • Management Flexibility: Supports a selection of management methods, including centralized cloud management with the Omada Pro Controller, CLI, Web GUI, and SNMP.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: ACL, IP-MAC-Port Binding, VLAN Binding, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP Snooping.



What This Product Does

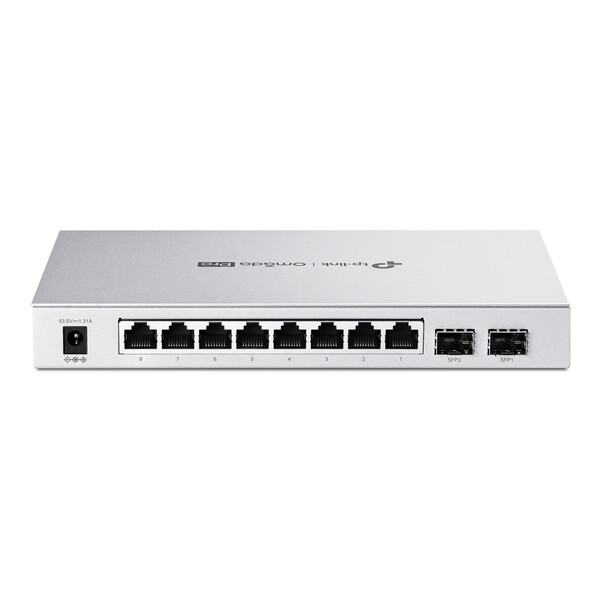

The S4500-8GP2F is equipped with eight RJ45 ports (10/100/1000 Mbps) and two SFP gigabit ports. The eight ethernet ports are compliant with 802.3at/af PoE. Users can supply up to 61W total power to connected devices and easily deploy equipment such as wireless access points or IP cameras without worrying about power outlets. PoE support, together with high-performance static routing, enterprise-level QoS, advanced security features, and a choice of Layer 2 management options, make the S4500-8GP2F an excellent choice for businesses networking.

Layer 2 and Layer 2+ features include IGMP Snooping, MLD Snooping, and Static Routing. While IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication protect against broadcast storms, ARP attacks, Denial-of-Service (DoS) attacks, and other threats. Quality of Service (QoS) provides enhanced traffic management capabilities to ensure fast transfers for your important data, even when the network is busy. Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection. Moreover, easy-to-use web management interfaces, along with CLI, SNMP, RMON, and Dual Image, mean faster setup and configuration with less downtime.

IEEE 802.3at/af-compliant Power over Ethernet

Eight IEEE 802.3at/af-compliant PoE ports supply up to 61 W total power to 802.3at and 802.3af devices.* Quickly and easily set up wireless access points, surveillance cameras, IP phones, and other PoE devices without the hassle and cost of installing power cabling.

Secure Networking

Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Advanced QoS

Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission—even when bandwidth is in short supply.

Abundant L2 and L2+ features

The S4500-8GP2F supports a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routes traffic through the switch for improved efficiency.

IPv6 Support

IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee that your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Integrated into Omada Pro
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.** Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Apart from the ability to be centrally managed via Omada Pro controllers, the S4500-8GP2F is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Package Contents
• S4500-8GP2F
• Power Cord
• Installation Guide
• Rubber Feet

Availability:
Limited
Brand:
TP-LINK
Warranty:
60 месеца

Мрежови продукти - Суичова

Ethernet портове:
  • 20Gbps
IPv6:
  • IPv6 Dual IPv4/IPv6
  • IPv6 Interface
  • IPv6 neighbor discovery (ND)
  • Multicast Listener Discovery (MLD) Snooping
  • Static IPv6 Routing
L2 Switching Features:
  • 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
  • 802.3x Flow Control
  • BPDU Filtering/Guard
  • IGMP Snooping V1/V2/V3
  • Loop back detection
  • Spanning Tree STP/RSTP/MSTP
  • TC/Root Protect
Quality of Service:
  • PoE Ports: Port1- Port4, Power Supply: 53W
  • PoE Ports: Port1- Port8, Power Supply: 53W
  • Port/Flow- based Rate Limiting
  • Queue scheduling: SP, WRR, SP+WRR
  • Support 8 priority queues
  • Support 802.1p CoS/DSCP priority
  • Voice VLAN
VLAN:
  • Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Вид на монтаж:
  • Декстоп
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • Forwarding Rate 14.88 Mpps
  • Jumbo Frame - 9216 Bytes
  • MAC Address Table - 8k
  • Packet Buffer Memory - 512KB
Захранване:
  • 100~240VAC, 50/60Hz
  • Външен захранващ адаптер (изход: 53.5VDC/1.31A)
Интерфейс:
  • 2 1000Mbps SFP Slots
  • 8× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Комутационен протокол:
  • Ethernet
Метод на комутация:
  • Store and Forward
Мрежови характеристики:
  • Auto-MDI/MDIX Ports
  • Auto-Negotiation
  • MDI/MDI-X switch
  • Switching capacity 20 Gbps
Охлаждане:
  • Пасивно
Предаване на данни:
  • 1000BASE-X: MMF, SMF
  • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • 0℃~40℃ (32℉~104℉)
Размери височина:
26 mm
Размери дълбочина:
126 mm
Размери ширина:
209 mm
Сертификати:
  • CE, FCC, RoHS
Сигурност:
  • Broadcast/Multicast/Unknown-unicast Storm Control
  • L2~L4 package filtering based on source and destination MAC address, IP address
  • Port Security
  • SSH v1/v2
  • SSL v2/v3/TLSv1
  • TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID
  • Time Range Based
  • Web-based GUI
Системни изисквания:
  • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Софтуерни функции:
  • CPU Monitoring
  • Firmware Upgrade: TFTP & Web
  • IGMP Snooping function
  • Port Mirroring
  • SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups)
  • SYSLOG & Public MIBS
  • System Diagnose: VCT
  • Time Setting: SNTP
  • Web-based GUI and CLI management
Съвместимост с мрежови стандарти:
  • 802.3 af
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE802.3z
Температура на съхранение:
  • -40℃~70℃ (-40℉~158℉)
Тип:
  • Smart

Брошура (Omada_Pro_Smart_Switch_Datasheet__2_.pdf, 8,385 Kb) [Download]

Ръководство за инсталиране (7106511367_S4500-8GP_UN__IG__1_.pdf, 294 Kb) [Download]

Декларация за съответствие (CE_DOC_S4500-8GP2F.pdf, 1,029 Kb) [Download]
