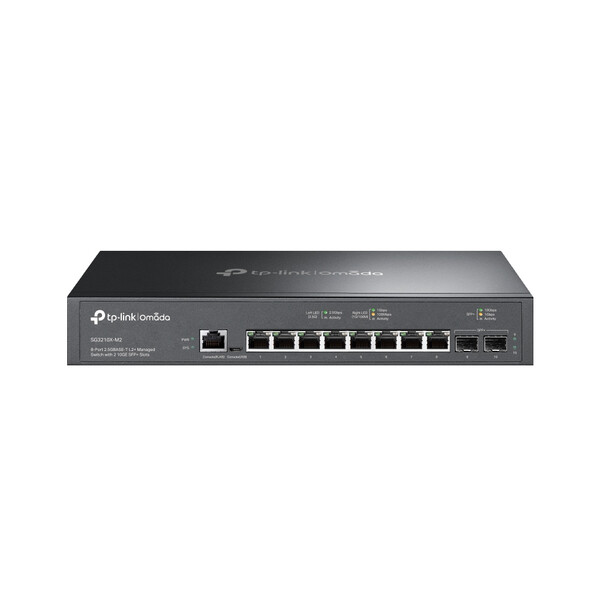

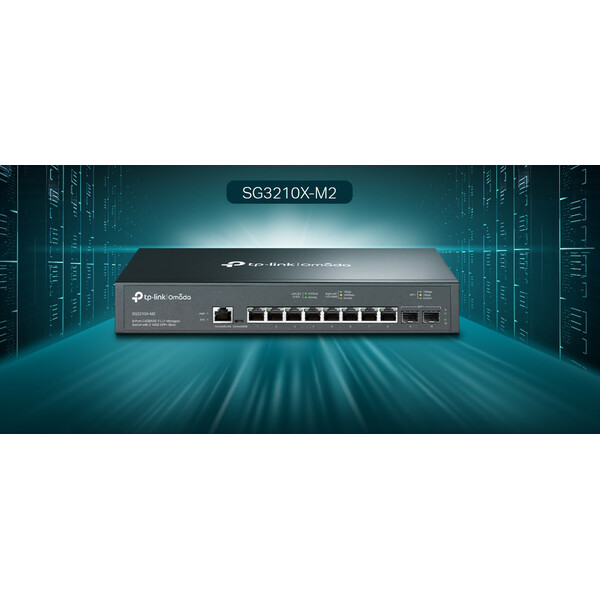

8-port 2.5 Gbps L2+ managed switch TP-Link Omada SG3210X-M2

SG3210X-M2_VZ
In stock
  • Приложение Rackmount
  • Тип Managed
  • Brand TP-LINK
full product features
Price
523,07 BGN
Qty
+

8-port 2.5 Gbps L2+ managed switch TP-Link Omada SG3210X-M2

  • 2.5 Gbps Speeds: 8× 2.5 Gbps RJ45 ports offer high-speed and reliable connections to other switches and devices.
  • 10G Lightning-Fast Uplink: 2× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.

Ultrafast 2.5G Managed Switch with 10G Uplink for Futuristic Network

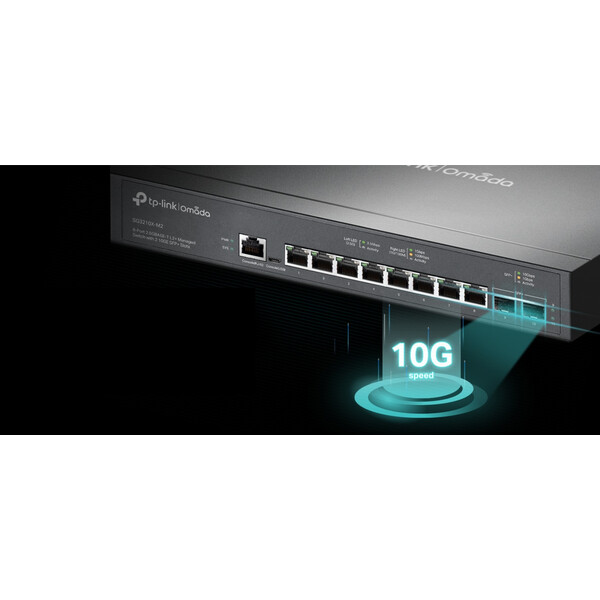

10G Lightning-Fast Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

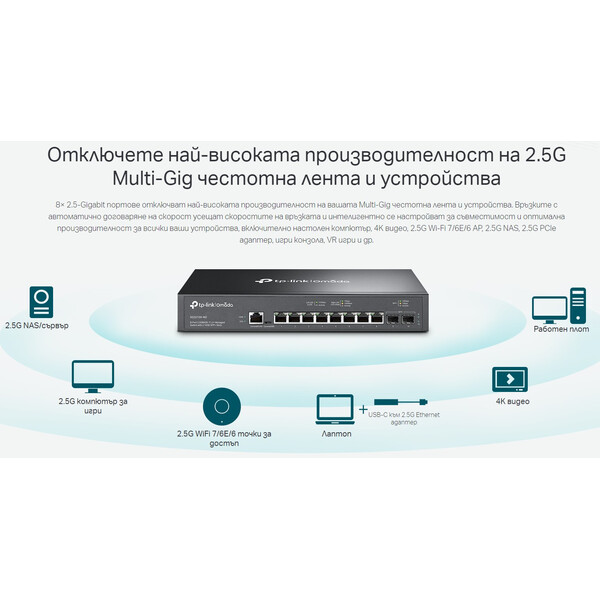

2.5G Ports for WiFi 7/6E/6
8× 2.5 Gbps Ports Uplock the Full Potential of WiFi 7/6E/6 APs

Centralized Cloud Management
SDN Solutions Integration for a Highly Efficient Network

Advanced L2+ Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More

Enterprise Switch with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to servers and other switches are easily built.

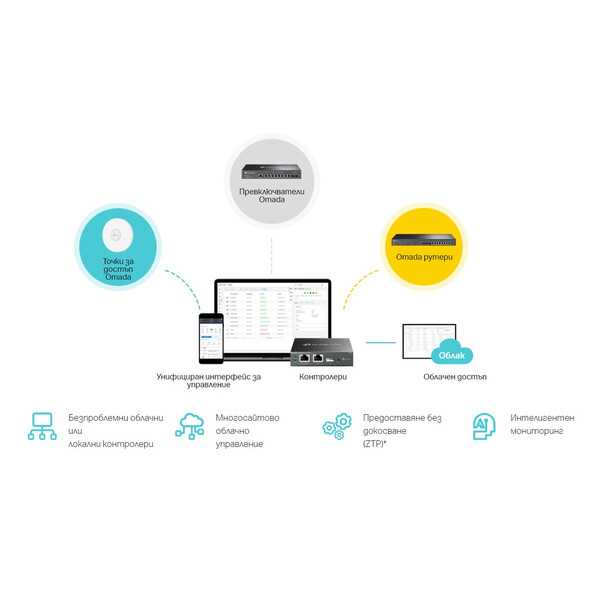

Software-defined networking (SDN) with cloud access
Omada's software-defined networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network - all controlled from a single interface. Hassle-free wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices and more.

Advanced L3 Features
Plenty of L2+ and L3 features are supported to help build a highly scalable and stable network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Secure networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to protect against a range of network threats. An integrated list of common DoS attacks is available, making preventing them easier than ever. In addition, the access control list (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. User network access can be controlled via 802.1X authentication that works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise level features
A full range of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control. Advanced IGMP Snooping ensures that the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting off unnecessary traffic, while IGMP throttling & filtering restricts each subscriber at the port level to prevent unauthorized multicast access. Static routing is an easy way to segment the network and internally route traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, etc. With QoS (Quality of Service), voice and video services remain smooth even when bandwidth is insufficient.

ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication functions developed with service providers in mind are available. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 support
IPv6 features such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover ensure your network is Next Generation Network (NGN) ready without upgrading on your hardware.



Package Contents
• SG3210X-M2 switch
• Power cord
• Quick Installation Guide
• Cabinet mounting kit
• Rubber feet

Availability:
Limited
Brand:
TP-LINK
Warranty:
60 месеца
Warranty criteria:
Warranty Card/Serial Number

Мрежови продукти - Суичова

Ethernet портове:
  • 80 Gbps
IPv6:
  • Internet Control Message Protocol (ICMP) version 6
  • IPv6 ACL
  • IPv6 Dual IPv4/IPv6
  • IPv6 Interface
  • IPv6 neighbor discovery (ND)
  • Multicast Listener Discovery (MLD) Snooping
  • Path maximum transmission unit (MTU) discovery
  • Static IPv6 Routing
  • TCPv6/UDPv6
IPv6 Applications:
  • DHCPv6 Client
  • Http/Https
  • IPv6 ACL*
  • IPv6 Interface*
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • IPv6 TFTP
  • Ping6
  • Telnet(v6)
  • Tracert6
L2 Switching Features:
  • 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
  • 802.3x Flow Control
  • Cable Diagnostics
  • CPU Mirroring
  • IGMP Authentication
  • IGMP Snooping V1/V2/V3
  • Link Aggregation
  • MLD Snooping
  • MVR
  • One-to-One
  • Port Mirroring
  • Proxy ARP
  • Static Link Aggregation
L3 Switching Features:
  • 16 IPv4/IPv6 Interfaces
  • DHCP L2 Relay
  • DHCP Server/Relay
  • Gratuitous ARP
  • Static ARP
  • Static Routing
Quality of Service:
  • Action for Flows
  • Bandwidth Control
  • Cable Diagnostics
  • Queue scheduling: SP, WRR, SP+WRR
  • Smoother Performance
  • Support 8 priority queues
  • Support 802.1p CoS/DSCP priority
  • Voice VLAN
VLAN:
  • 802.1Q tag VLAN
  • MAC VLAN: 7 Entries
  • Private VLAN
  • VLAN Group
  • VLAN VPN (QinQ)
  • VLAN, Private VLAN, Voice VLAN
  • Voice VLAN
Вид на монтаж:
  • Rackmount
  • Декстоп
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • IEEE802.3x Flow Control
  • Jumbo Frame 9KB
  • Loopback Detection (LBD)
  • MAC Address Table -16k
  • Packet Forwarding Rate - 59.52 Mpps
  • Spanning Tree Protocol (STP)/ Rapid Spanning Tree Protocol (RSTP)
Захранване:
  • 100~240VAC, 50/60Hz
Интерфейс:
  • 1 Console Port
  • 1x Micro-USB Console Port
  • 2× 10G SFP+ Slots
  • 8× 2.5 Gbps RJ45 Ports
Комутационен протокол:
  • Ethernet
Метод на комутация:
  • Store and Forward
Мрежови характеристики:
  • Switching capacity: 80 Gbps
Приложение:
  • Rackmount
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • 0℃~40℃ (32℉~104℉)
Размери височина:
44 mm
Размери дълбочина:
180 mm
Размери ширина:
440 mm
Сертификати:
  • CE, FCC, RoHS
Сигурност:
  • AAA
  • Access Control List
  • Broadcast/Multicast/Unknown-unicast Storm Control
  • DoS Defence
  • IP-MAC-Port Binding
  • IP/Port/MAC based access control
  • IPv6-MAC-Port Binding
  • Port isolation
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • Secure web management through HTTPS with SSLv3/TLS1.0
  • Static/Dynamic/Permanent Port Security
Системни изисквания:
  • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Софтуерни функции:
  • IEEE 802.3ad: Link Aggregation
  • IEEE 802.3x: Flow Control
  • MIBs
  • Omada App
  • Omada Cloud-Based Controlle
  • Omada Hardware Controller (OC200)
  • Omada Hardware Controller (OC300)
  • Omada Software Controller
  • Port Mirroring
Съвместимост с мрежови стандарти:
  • IEEE 802.1x
  • IEEE 802.3x Flow Control
Температура на съхранение:
  • -40℃~70℃ (-40℉~158℉)
Тип:
  • Managed
Управление/Management:
  • Command Line Interface (CLI) through telnet
  • DHCP AutoInstall
  • DHCP/BOOTP Client
  • Dual Image, Dual Configuration
  • EEE
  • Password Management
  • RMON (1,2,3,9 groups)
  • SDM Template
  • SNMP Trap/Inform
  • SNMP v1, v2, and v3
  • SNTP
  • System Log
  • Web UI

Ръководство за инсталиране (7106510777_SG3210X-M2_IG.pdf, 4,129 Kb) [Download]

Брошура (Omada_10-Gigabit_L2__Managed_Switch.pdf, 13,328 Kb) [Download]

Декларация за съответствие (CE_DOC_SG3210X-M2.pdf, 1,034 Kb) [Download]
