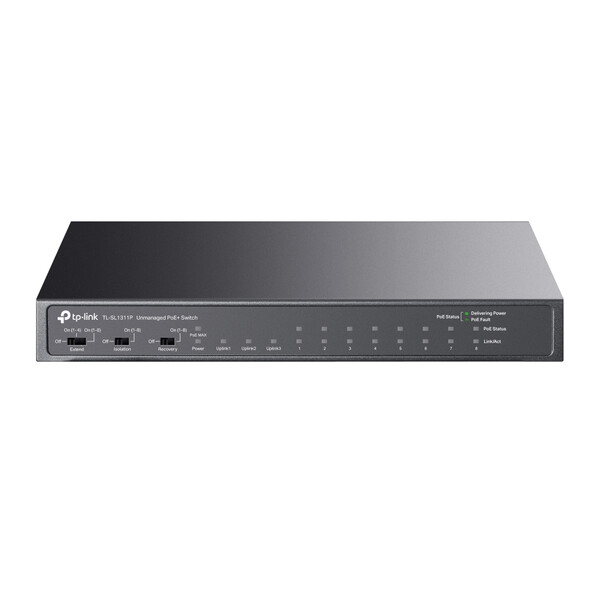

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ TP-Link TL-SL1311P

TL-SL1311P_VZ
In stock
full product features
Price
139,04 BGN
Qty
+

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ TP-Link TL-SL1311P

8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and play with no configuration required

65W PoE Budget*
Long-Range PoE+ (250 m**)
Isolation Mode for Security
PoE Auto Recovery
Desktop or Wall-Mounting
Plug and Play
Silent Operation
Durable Metal Casing

Power over Ethernet, Flexible Network Deployment
Compliant with the IEEE 802.3af/at PoE standards, the switch supports a total PoE power budget of 65 W with 30 W max per PoE+ port. When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority ports power to protect devices from damage.

Instantaneous Multi-mode Toggles
Extend Mode
Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m** —perfect for IP Camera deployment in large areas.

Isolation Mode
Traffic Separation for Security
Isolation Mode easily divides traffic for ports to avoid snooping/tampering and isolates broadcast storm for higher security.

Recovery Mode
PoE Auto Recovery
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.

Plug and Play

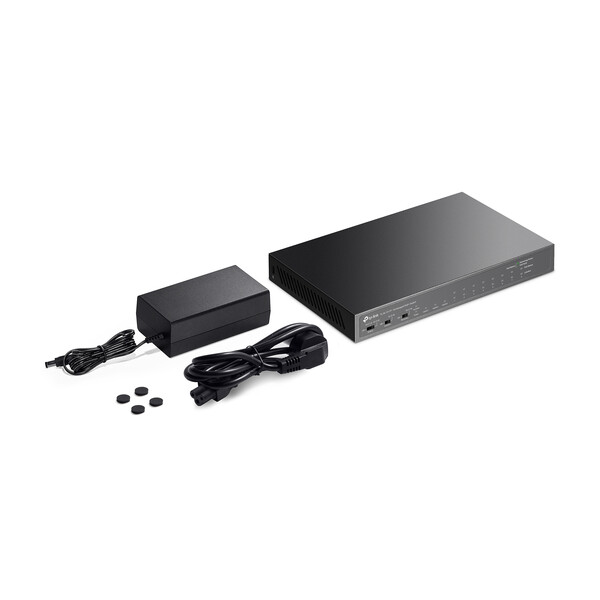

Package Contents
• TL-SL1311P
• Power Adapter
• Installation Guide

Empowering Your Business Growth | TP-Link PoE Switches

Availability:
Limited
Brand:
TP-LINK
Warranty:
60 месеца
Warranty criteria:
Warranty Card/Serial Number

Мрежови продукти - Суичова

L2 Switching Features:
  • 802.3x Flow Control
  • PoE Auto Recovery
Quality of Service:
  • Isolation Mode Button (Ports 1–8)
Вид на монтаж:
  • Декстоп
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • IEEE802.3x Flow Control
  • Jumbo Frame 16KB
  • Mac Address Auto-Learning And Auto-Aging
  • Mac Address Table 2K
  • Packet Forwarding Rate 5.6544 Mpps
  • Switching Capacity 7.6 Gbps
Захранване:
  • External Power Adapter (Output: 53.5 VDC / 1.31 A)
Интерфейс:
  • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
  • Auto-Negotiation/Auto MDI/MDIX
Комутационен протокол:
  • Ethernet
Метод на комутация:
  • Store and Forward
Мрежови характеристики:
  • Auto-Negotiation
  • MDI/MDI-X switch
  • Switching capacity: 7.6 Gbps
Охлаждане:
  • Пасивно
Предаване на данни:
  • 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • 0℃~40℃ (32℉~104℉)
Размери височина:
26 mm
Размери дълбочина:
126 mm
Размери ширина:
209 mm
Сертификати:
  • CE, FCC, RoHS
Системни изисквания:
  • не поддържа
Софтуерни функции:
  • IEEE 802.3: 10BASE-T
Съвместимост с мрежови стандарти:
  • 802.3 af
  • IEEE 802.3 at
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3x Flow Control
  • IEEE802.3z
Тегло, кг.:
1 кг.
Температура на съхранение:
  • -40℃~70℃ (-40℉~158℉)
Тип:
  • Desktop switch
  • Unmanaget
Управление/Management:
  • не поддържа

Брошура (TL-SL1311P_UN__1.0_Datasheet.pdf, 207 Kb) [Download]

Ръководство за инсталиране (7106510937_TL-SF1008LP_UN_3.0_IG.pdf, 192 Kb) [Download]

Декларация за съответствие (TL-SL1311P_UN1.0.pdf, 1,060 Kb) [Download]
