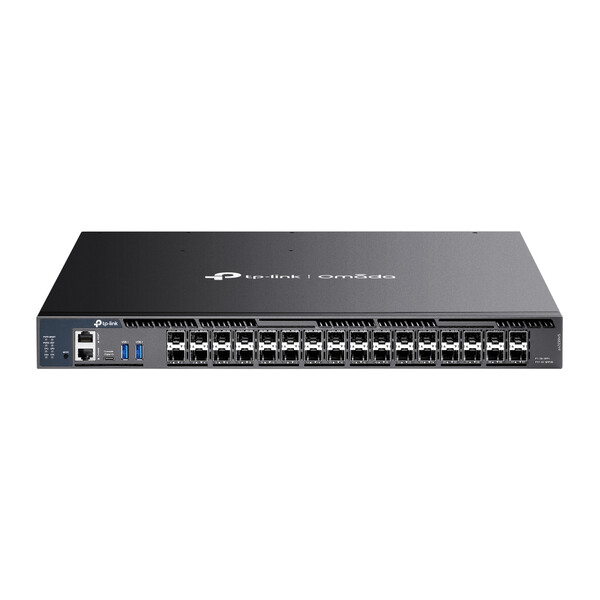

Omada Campus 26-Port 10G SFP+ Stackable L3 Managed Aggregation Switch with 6× 25G Slots SX6632YF

820 Gbps switching capacity
Physical stacking up to 8 units for built-in redundancy and performance**
L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, PIM-SM and DHCP server/relay
Security strategies: ACL, Port Security, DoS Defend, 802.1X
Exclusively available with two field-swappable power supplies*, VRRP and ERPS
Centralized cloud management via Omada SDN controller
Standalone management via web, CLI, SNMP and RMON
What this product does
The Omada SX6632YF is a true L3 managed switch with additional fiber ports, offering L3 routing, fast 25 Gbps wire speed, power and power redundancy to meet the convergence layer requirements. It comes with 6 × 25 Gbps SFP28 slot, 26 × 10 Gbps SFP+ slot and physical stacking. Integrated with robust security and all these management features, the switch provides reliable performance for SMB, enterprise and ISP networks.

High-speed connectivity and powerful stacking
6 × 25 Gbps SFP28 slot and 26 × 10 Gbps SFP+ slot provide up to 820 Gbps switching power per unit. Up to 8 units of physical stacking with switching capacity up to 6560 Gbps enables network structure with built-in redundancy and performance.

Abundant Layer 3 capabilities
It comes with abundant Layer 3 routing protocols that support computerized network. Static routing, RIP, OSPF, ECMP, VRRP, DHCP server and DHCP Relay are supported. PIM-DM and PIM-SM multicast routing protocol ensures efficient routing for multicast groups.

Highly Available
Internal fixed redundant power supplies* and VRRP will make it an ideal choice for a reliable network architecture. ERPS supports fast protection and recovery in a ring topology.

Enhanced Security Features
Defend against a range of network threats with support for ACL (IPv4 and IPv6), dynamic ARP inspection, IEEE 802.1X, MAB, port protection, and secure shell.

Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers, providing 100% centralized cloud management – ​​all controlled from a single interface.

In addition to being centrally managed via the web or Omada app, the SX6632YF is also easy to manage via an intuitive web-based graphical user interface (GUI) or industry-standard command-line interface (CLI). For both methods, traffic management is secured via SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support allow the switch to be polled for valuable cost information and send traps for unusual events.

Package Contents
• SX6632YF Switch
• Power Cord
• Quick Installation Guide
• Rack Mount Kit
• Rubber Feet
