24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch TP-Link Omada SG3428XMPP with 16-Port PoE+ & 8-Port PoE++

TL-SG3428XMPP_VZ
Out of stock
  • Приложение Rackmount
  • Тип Managed
  • Brand TP-LINK
full product features
Price
1 245,46 BGN
Add to wishlist Comparison list

24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch TP-Link Omada SG3428XMPP with 16-Port PoE+ & 8-Port PoE++

  • 4× 10 Gbps SFP+ slots
  • 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
  • 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
  • 500 W total PoE budget
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Durable metal casing and rack-mountable design

24× Gigabit RJ45 Ports (8× PoE++, 16× PoE+)
4× 10 Gbps SFP+ Slots
500 W Total PoE Budget (Max 90 W for Each PoE++ Port)
Centralized Management
Omada App
Zero-Touch Provisioning
Ethernet Ring Protection Switching
Static Routing

Empowering the High-Power Devices with Gigabit PoE++ Ports

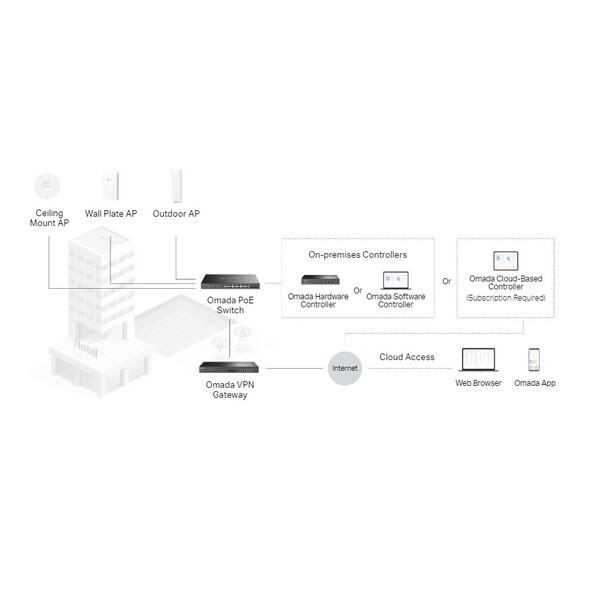

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance

Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections

Works with Non-PoE Devices such as PCs and Printers

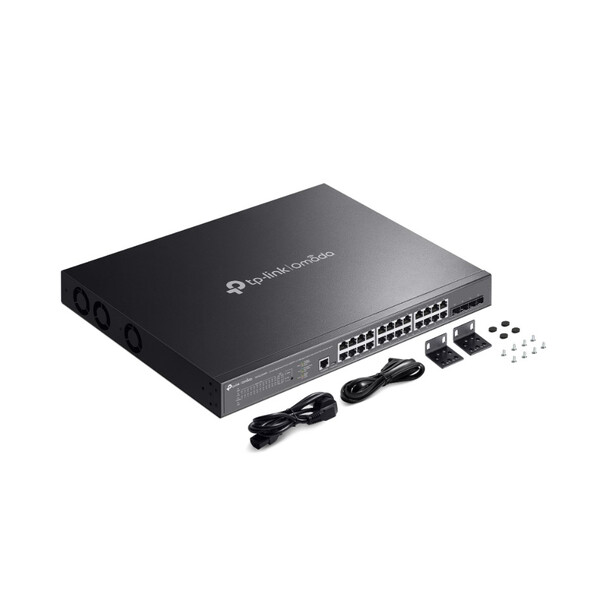

Package Contents
• SG3428XMPP Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Availability:
No stock
Brand:
TP-LINK
Warranty:
60 месеца

Мрежови продукти - Суичова

Ethernet портове:
  • 128Gbps
IPv6:
  • Internet Control Message Protocol (ICMP) version 6
  • IPv6 Dual IPv4/IPv6
  • IPv6 neighbor discovery (ND)
  • Multicast Listener Discovery (MLD) Snooping
  • Path maximum transmission unit (MTU) discovery
  • Static IPv6 Routing
  • TCPv6/UDPv6
IPv6 Applications:
  • DHCPv6 Client
  • Http/Https
  • IPv6 ACL*
  • IPv6 Interface*
  • IPv6 SNMP
  • IPv6 SSH
  • IPv6 SSL
  • IPv6 TFTP
  • Ping6
  • Telnet(v6)
  • Tracert6
L2 Switching Features:
  • 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
  • 802.3x Flow Control
  • CPU Mirroring
  • IGMP Authentication
  • IGMP Snooping V1/V2/V3
  • Link Aggregation
  • MLD Snooping
  • MVR
  • One-to-One
  • Port Mirroring
  • Proxy ARP
  • Static Routing
  • TACACS+
L3 Switching Features:
  • 16 IPv4/IPv6 Interfaces
  • ARP Proxy
  • DHCP L2 Relay
  • DHCP Server/Relay
  • Gratuitous ARP
  • Static ARP
  • Static Routing
Quality of Service:
  • Cable Diagnostics
  • Queue scheduling: SP, WRR, SP+WRR
  • Support 8 priority queues
  • Voice VLAN
VLAN:
  • 802.1Q tag VLAN
  • IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP
  • MAC VLAN: 7 Entries
  • Max. 4K VLAN Groups
  • VLAN, Private VLAN, Voice VLAN
  • Voice VLAN
Вид на монтаж:
  • Rackmount
  • Декстоп
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • Jumbo Frame 9 KB
  • MAC Address Table 16 K
  • Packet Buffer Memory 12 Mbit
  • Packet Forwarding Rate 95.23 Mpps
Захранване:
  • 100~240VAC, 50/60Hz
  • Max Power Consumption 605.5W (110V/60Hz) ( with 500W PD connected)
Интерфейс:
  • 1× Micro-USB Console Port
  • 1× RJ45 Console Port
  • 24× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 16× PoE+)
  • 4× 10G SFP+ Slots
Мрежови характеристики:
  • Switching Capacity: 128 Gbps
Охлаждане:
  • Активно
Приложение:
  • Rackmount
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • 0℃~45℃ (32–113 ℉)
Размери височина:
44 mm
Размери дълбочина:
330 mm
Размери ширина:
440 mm
Сертификати:
  • CE
  • FCC
  • IC
Сигурност:
  • AAA
  • IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
  • IP-MAC-Port Binding
  • IP/Port/MAC based access control
  • IPv6-MAC-Port Binding
  • Port isolation
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • Secure web management through HTTPS with SSLv3/TLS1.0
  • Web-based GUI
Системни изисквания:
  • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Софтуерни функции:
  • 802.1p/DSCP QoS
  • CPU Monitoring
  • IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
  • IEEE 802.3ad: Link Aggregation
  • IEEE 802.3x: Flow Control
  • IGMP Snooping function
  • MIBs
  • Omada App
  • Omada Cloud-Based Controlle
  • Omada Hardware Controller (OC200)
  • Omada Hardware Controller (OC300)
  • Omada Software Controller
  • Port Mirroring
  • Web-based GUI and CLI management
Съвместимост с мрежови стандарти:
  • IEEE 802.1p
  • IEEE 802.1x
  • IEEE 802.3x Flow Control
  • Standard: 802.3at/af compliant
Тегло, кг.:
2.8 кг
Температура на съхранение:
  • -40℃~70℃ (-40℉~158℉)
Тип:
  • Managed
Управление/Management:
  • 802.1ab LLDP/LLDP-MED
  • Command Line Interface (CLI) through telnet
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • EEE
  • Password Management
  • RMON (1,2,3,9 groups)
  • SDM Template
  • SNMP Trap/Inform
  • SNMP v1, v2, and v3
  • SNTP
  • System Log
  • Web UI

Брошура v1 (Omada_10-Gigabit_L2__Managed_Switch_SG3428XMPP_datasheet.pdf, 1,536 Kb) [Download]

Декларация за съответствие v1 (CE_DOC_SG3428XMPP.pdf, 1,020 Kb) [Download]
