16-ports gigabit smart managed switch TP-Link Omada Pro S4500-16G2F with 2 SFP slots

S4500-16G2F
In stock
  • Приложение Rackmount
  • Тип ManagedSmart
  • Brand TP-LINK
full product features

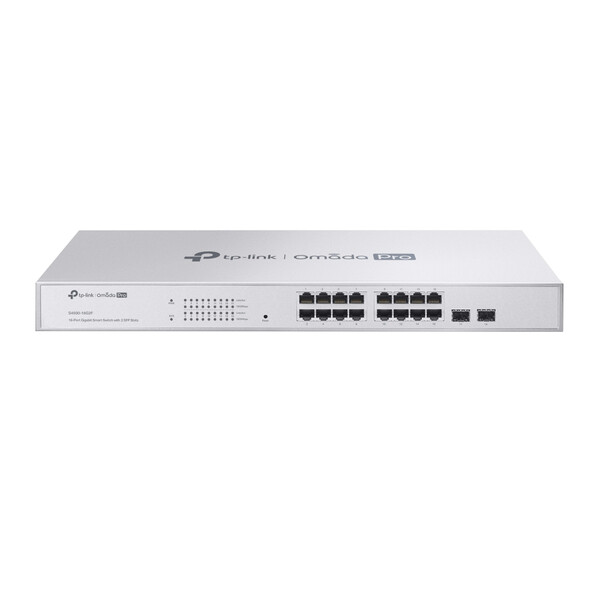

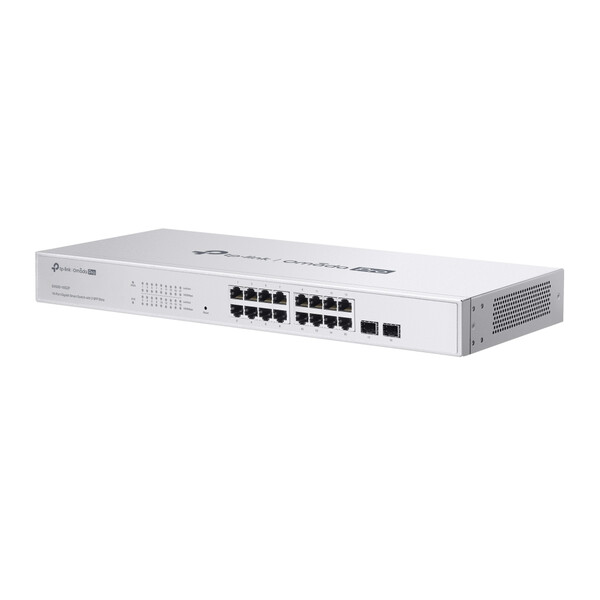

16-ports gigabit smart managed switch TP-Link Omada Pro S4500-16G2F with 2 SFP slots

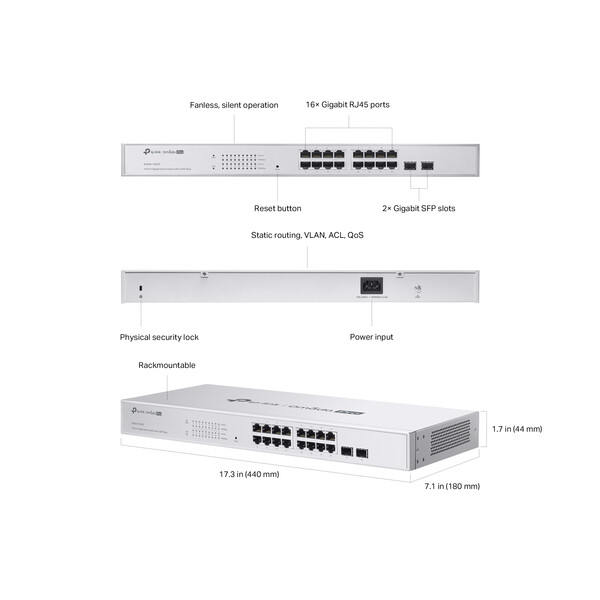

16× Gigabit RJ45 ports and 2× Gigabit SFP slots
Ideal for the access layer in enterprise networking
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing
Fanless design for silent operation
Rack-mountable

What This Product Does
S4500-16G2F is an enterprise-level switch equipped with 16× gigabit RJ45 ports and 2× gigabit SFP slots. High-performance static routing, enterprise-level QoS, advanced security features, a selection of Layer 2 management options, and integration into the Omada Pro SDN (Software-Defined Networking) make S4500-16G2F an excellent choice for the access layer of business networking.

Secure Networking
Security features include IP-MAC-Port Binding and VLAN Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them.

In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users' network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Advanced QoS
Leveraging IP, MAC, TCP, and UDP identifiers, our QoS feature ensures seamless voice and video transmission—even when bandwidth is in short supply.

Abundant L2 and L2+ Features
S4500-16G2F supports a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling and filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing, an L2+ feature, is a simple way of segmenting the network and internally routing traffic through the switch for improved efficiency.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery, and IPv6 Neighbor Discovery guarantee that your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.† Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network—all controlled from a single interface.

Apart from the ability to be centrally managed via Omada Pro controllers, S4500-16G2F simplifies management via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

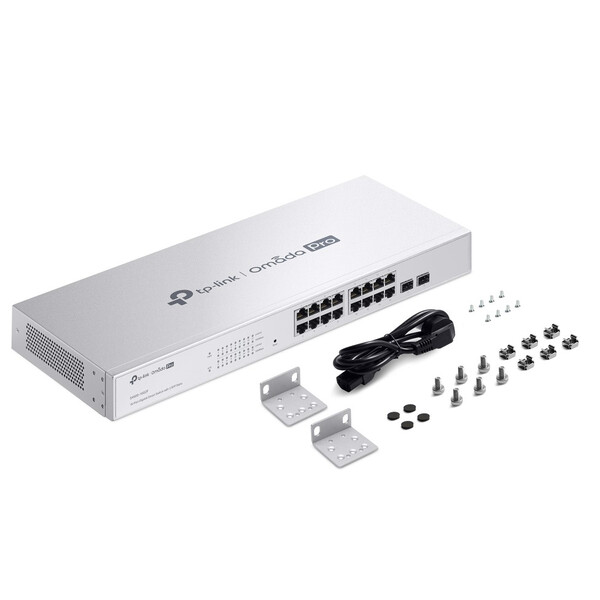

Package Contents
• S4500-16G2F Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Availability:
Limited
Brand:
TP-LINK
Warranty:
60 месеца

Мрежови продукти - Суичова

Ethernet портове:
  • 36 Gbps
IPv6 Applications:
  • Http/Https
  • IPv6 ACL*
L2 Switching Features:
  • 802.3x Flow Control
  • Broadcast/Multicast/Unknown Unicast Storm Recovery
  • Cable Diagnostics
  • Link Aggregation
  • Voice VLANs
Quality of Service:
  • Action for Flows
  • Bandwidth Control
  • Cable Diagnostics
  • Queue scheduling: SP, WRR, SP+WRR
  • Smoother Performance
  • Support 8 priority queues
  • Support 802.1p CoS/DSCP priority
  • Voice VLAN
VLAN:
  • 802.1Q tag VLAN
  • GARP/GVRP
  • MAC VLAN: 12 Entries
  • MAC/Protocol-based VLAN
  • Max. 4K VLAN Groups
  • VLAN Group
  • VLAN VPN (QinQ)
  • Voice VLAN
Вид на монтаж:
  • Rackmount
  • Декстоп
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • MAC Address Table 8K
  • Packet Buffer Memory 4.1 Mbit
  • Packet Forwarding Rate 26.8 Mpps
  • Switching Capacity 36 Gbps
Захранване:
  • 100~240VAC, 50/60Hz
Интерфейс:
  • 16 x 10/100/1000 Mbps LAN ports
  • 2 SFP ports
Мрежови характеристики:
  • Switching Capacity: 36Gbps
Охлаждане:
  • Пасивно
Приложение:
  • Rackmount
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • 0℃~40℃ (32℉~104℉)
Размери височина:
44 mm
Размери дълбочина:
180 mm
Размери ширина:
440 mm
Сертификати:
  • CE, FCC, RoHS
Сигурност:
  • 802.1x and Radius Authentication
  • AAA
  • Access Control List
  • Broadcast/Multicast/Unknown-unicast Storm Control
  • DoS Defence
  • IP-MAC-Port Binding
  • IPv6-MAC-Port Binding
  • Port isolation
  • Port Security
  • Secure Command Line Interface (CLI) management with SSHv1/SSHv2
  • Secure web management through HTTPS with SSLv3/TLS1.0
Системни изисквания:
  • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Софтуерни функции:
  • 802.1p/DSCP QoS
  • CPU Monitoring
  • IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
  • IEEE 802.3ad: Link Aggregation
  • IEEE 802.3x: Flow Control
  • Password Recovery*
Съвместимост с мрежови стандарти:
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3ad
  • IEEE 802.3x Flow Control
Тегло, кг.:
2.3 кг.
Температура на съхранение:
  • -40℃~70℃ (-40℉~158℉)
Тип:
  • Managed
  • Smart
Управление/Management:
  • DHCP AutoInstall
  • Dual Image, Dual Configuration
  • EEE
  • SNTP
  • System Log
  • Web UI

Брошура (Omada_Pro_Smart_Switch_Datasheet__1_.pdf, 8,385 Kb) [Download]

Ръководство за инсталиране (7106511014_S4500-8GHP2F_UN_2.0_IG.pdf, 2,118 Kb) [Download]

Декларация за съответствие (CE_DOC_S4500-16G2F.pdf, 1,000 Kb) [Download]
