TP-Link Omada TP-Link Omada ES210GMP Gigabit Easy Managed Switch with 8-Port PoE+

ES210GMP_VZ
In stock
full product features
TP-LINK
Price
244,00 BGN
Qty
+ −
Add to wishlist Comparison list

TP-Link Omada TP-Link Omada ES210GMP Gigabit Easy Managed Switch with 8-Port PoE+

  • 8× Gigabit 802.3at/af-compliant PoE+ RJ45 ports
  • 1× Gigabit RJ45 port, 1× Gigabit SFP/RJ45 Combo port
  • 123W Power Budget, with up to 30W for each PoE port
  • Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
  • Centralized Cloud Management via the web or the Omada app
  • Up to 250m PoE, QoS, PoE Auto Recovery, and Port Isolation for reliable surveillance networking
  • Automatic Loop Prevention, VLAN, and IGMP Snooping
  • Fanless design for silent operation
  • Durable metal casing and desktop/wall mounting design



  • 10× Gigabit Ports
  • (8× PoE+, 1× RJ45, 1× RJ45/SFP Combo)
  • 123 W Total PoE Budget
  • Fanless Design for Silent Operation
  • Easy Centralized Management
  • Automatic Loop Prevention
  • PoE Auto Recovery
  • Traffic Separation
  • Traffic Prioritization

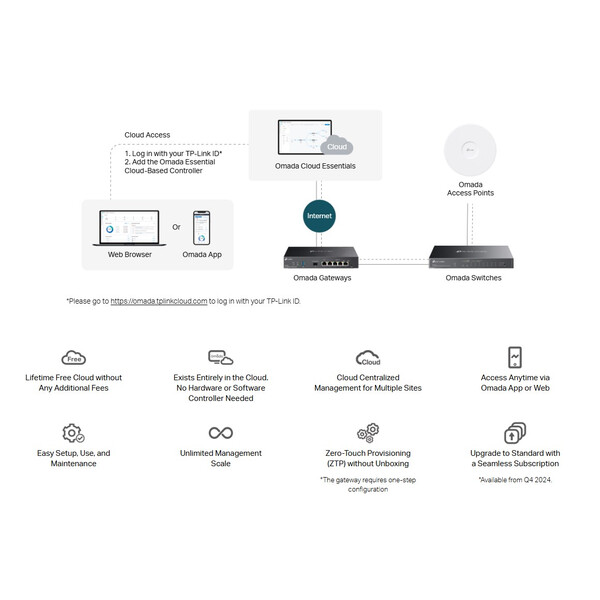

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system§, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

Lifetime Free Cloud without Any Additional Fees
Exists Entirely in the Cloud:
No hardware or software controller needed.
Cloud Centralized Management for Multiple Sites
Access Anytime via Omada App or Web
Easy Setup, Use, and Maintenance
Unlimited Management Scale
Zero-Touch Provisioning (ZTP) without Unboxing
*The gateway requires one-step configuration.
Upgrade to Standard with a Seamless Subscription
*Available from Q4 2024.
Abundant Functions for Reliable Surveillance Networking

  • Transmission Distance up to 250 m
  • Priority Video Quality Guaranteed
  • Secure Traffic Separation via Port Isolation
  • PoE Auto Recovery

Multiple Application Scenarios
Surveillance
Works with IP Cameras

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

Package Contents
• ES210GMP
• Power Adapter
• Installation Guide
• Rubber Feet



Availability:
Limited
Brand:
TP-LINK
Warranty:
60 месеца
Warranty criteria:
Warranty Card/Serial Number

Мрежови продукти - Суичова

Ethernet портове:
  • 20 Gbps
L2 Switching Features:
  • 802.3x Flow Control
  • CPU Mirroring
  • Ingress/Egress/Both
  • Link Aggregation
  • Loop Prevention
  • Many-to-One
  • One-to-One
  • Port Mirroring
  • Static Link Aggregation
  • Static Routing
  • TC/Root Protect
Quality of Service:
  • Bandwidth Control
  • Cable Diagnostics
  • Priority Schedule Mode
  • Queue Weight Config
  • Smoother Performance
  • Storm Control
  • Support 8 priority queues
  • Support 802.1p CoS/DSCP priority
VLAN:
  • 802.1Q tag VLAN
  • IEEE 802.1Q VLAN/MAC VLAN/Protocol VLAN/QinQ/Private VLAN/GVRP
  • Max 32 VLAN Groups
  • VLAN Group
  • Voice VLAN
Вид на монтаж:
  • Wall Mounting
  • Десктоп
Влажност на съхранение:
  • 5%~90% без кондензация
Експлоатационни качества:
  • Forwarding Rate 14.88 Mpps
  • Jumbo Frame 15KB
  • MAC Address Table 8K
  • Switching Capacity 20 Gbps
Захранване:
  • DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
Интерфейс:
  • 1× 10/100/1000 Mbps RJ45 Port
  • 1× Gigabit SFP/RJ45 Combo Port
  • 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)
  • AUTO MDI/MDIX
  • AUTO Negotiation
Комутационен протокол:
  • Ethernet
Мрежови характеристики:
  • Auto-Negotiation
  • MDI/MDI-X switch
Охлаждане:
  • Пасивно
Предаване на данни:
  • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
Работна влажност:
  • 10%~90% без кондензация
Работна температура:
  • 0℃~40℃ (32℉~104℉)
Сертификати:
  • CE
  • FCC
  • RoHS
Системни изисквания:
  • Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
Софтуерни функции:
  • CPU Monitoring
  • DHCP Relay*
  • IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
  • IEEE 802.3ad: Link Aggregation
  • Omada App
  • Omada Cloud-Based Controlle
  • Omada Hardware Controller (OC200)
  • Omada Hardware Controller (OC300)
  • Omada Software Controller
  • Port Mirroring
Съвместимост с мрежови стандарти:
  • 802.3 af
  • IEEE 802.1d
  • IEEE 802.1p
  • IEEE 802.1q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.1x
  • IEEE 802.3 at
  • IEEE 802.3ab
  • IEEE 802.3ad
  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3x
Температура на съхранение:
  • -40℃~70℃ (-40℉~158℉)
Тип:
  • Managed
  • Omada
  • Smart
Управление/Management:
  • Automatic Device Discovery
  • Batch Configuration
  • Batch Firmware Upgrading
  • Cable Diagnostics
  • DHCP Client
  • Unified Configuration
  • Web-based GUI

Брошура v1 (Datasheet_ES210GMP_UN_1.0.pdf, 708 Kb) [Download]

Ръководство за инсталиране v1 (1910013715_Omada_Easy_Managed_Switch_UG.pdf, 3,954 Kb) [Download]

Декларация за съответствие v1 (CE_DOC_ES210GMP.pdf, 500 Kb) [Download]
